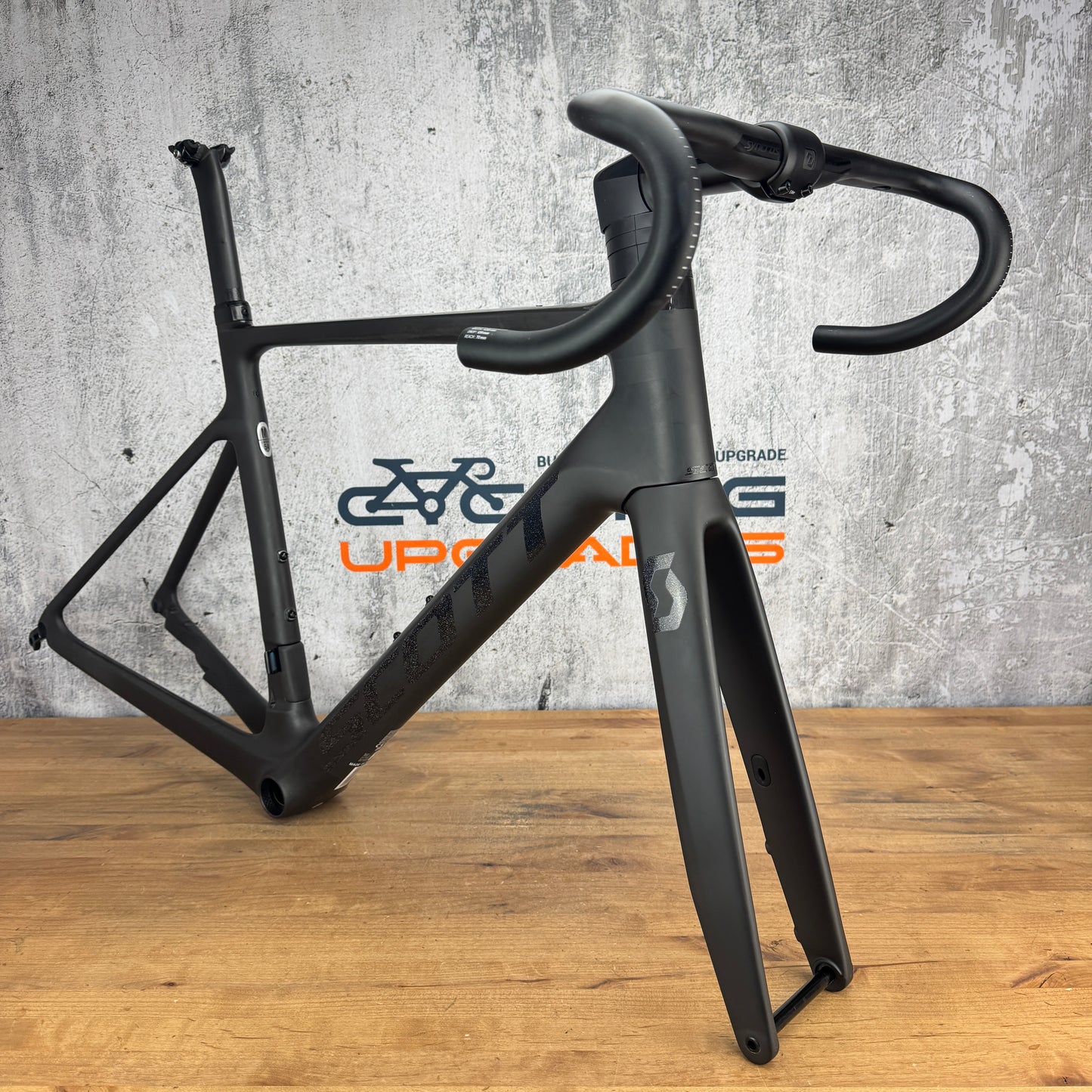

Frame: Scott 2022 Addict eRIDE HMX. This frame was originally a full E-Bike, but all the electronics and internals have been removed, and it is now being sold as a bare frameset. This frame was previously fitted with a Mahle X35 system.
Color: Black
Brake Type: Flat-Mount disc brake
Size: 54cm. 545mm Effective Top Tube. Stack - 572.4mm. Reach - 380.9mm. Head Tube 145mm. Recommend buyer confirm and research full geometry online.
Condition: This frameset is a new-teardown, which means that all of the parts were removed before use. There are a couple of scuffs from shipping on the head tube and near the rear derailleur hanger see pictures #16-17.
Groupset Compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with a Di2 groupset. Other frame/cable stops may be needed for mechanical or wireless setups.
Derailleur Hanger: The derailleur hanger is direct-mount for Shimano.
Bottom bracket: BB86 bottom bracket shell type (41mm shell diameter, 86-92mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 75mm of steerer above the top tube. 45mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: Syncros Duncan 1.0 Aero seatpost included. Clamp ears for 7x7mm round saddle rails currently installed, clamp ears for 7x9mm oval saddle rails available online.
Stem: Syncros 110mm stem included
Handlebar: Syncros Creston ic 1.5 42cm Alloy handlebar is included. Reach: 70mm Drop: 120mm
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear dropout is compatible with the Syncros Capital Mahle X35 rear wheel.
Weight: 2075 grams as pictured.
What's included: Frame, fork, headset, seatpost, stem, handlebar, rear derailleur hanger, front thru axle
