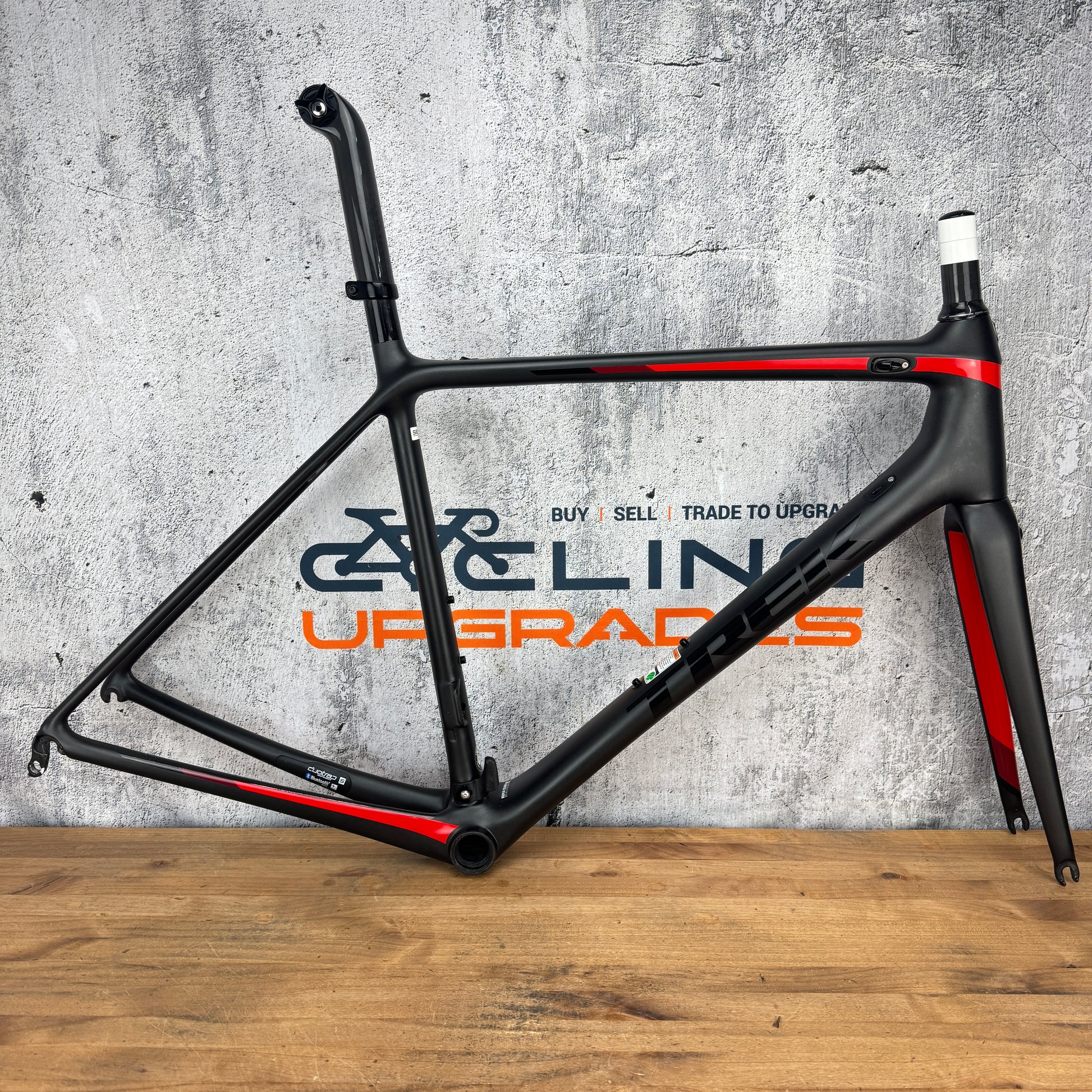

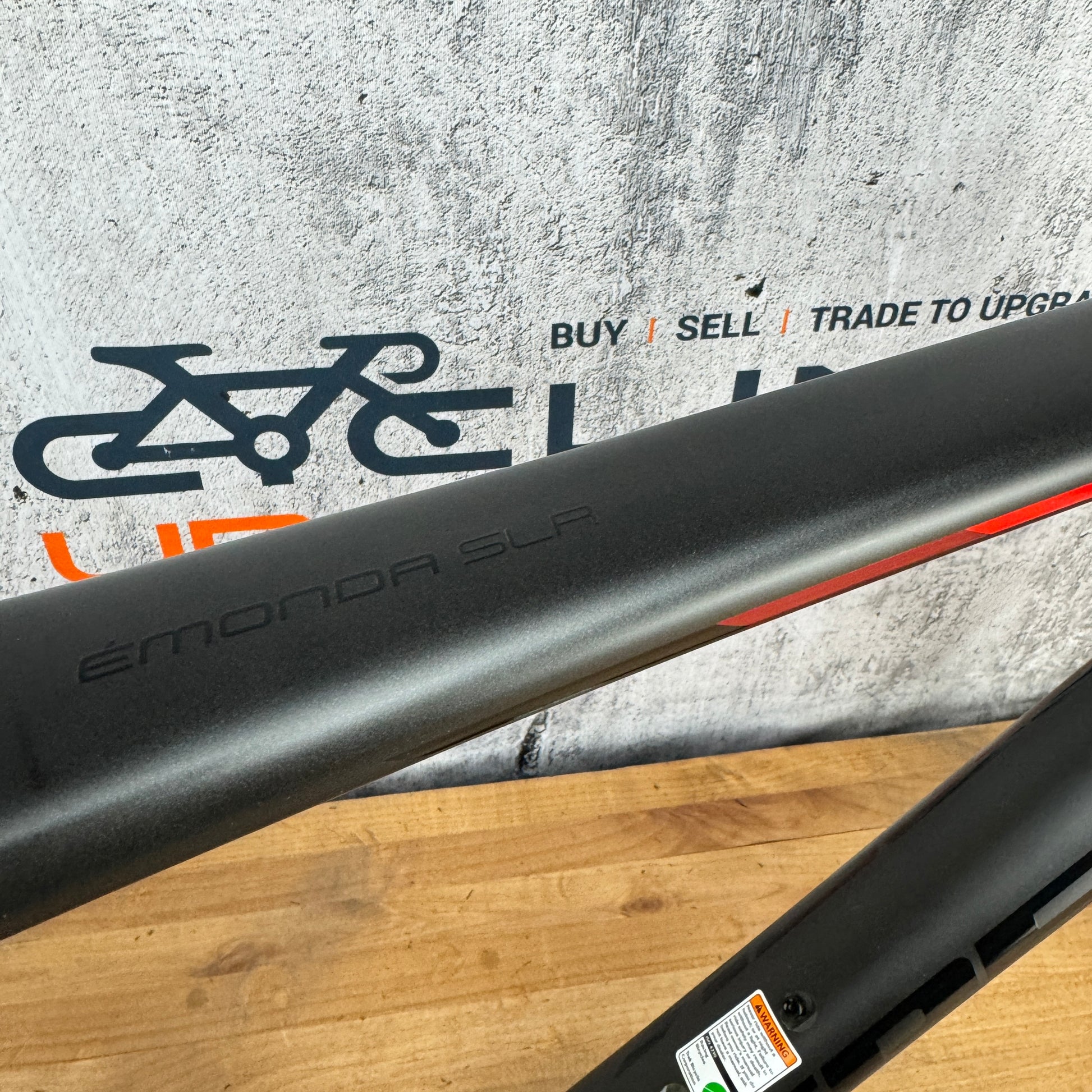

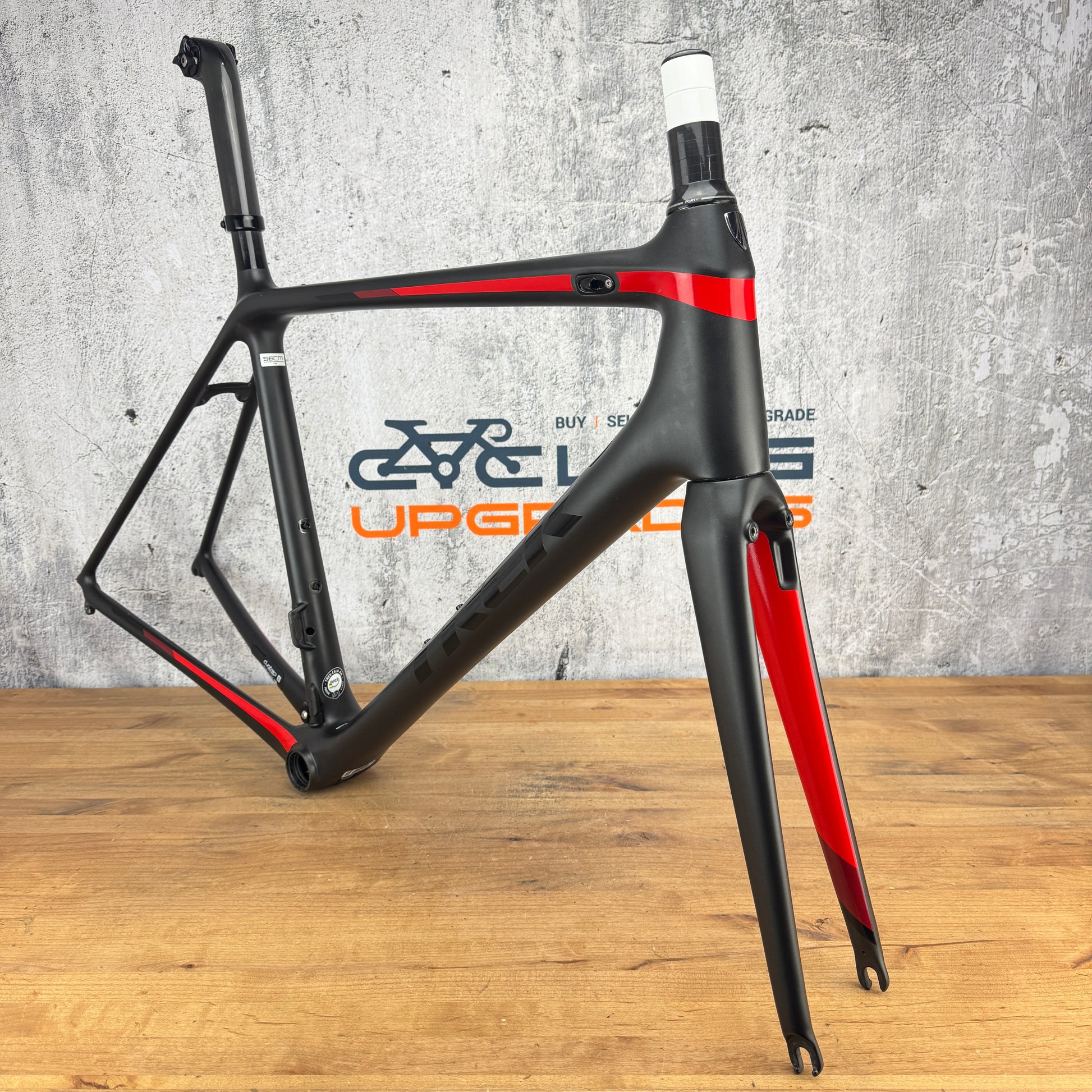

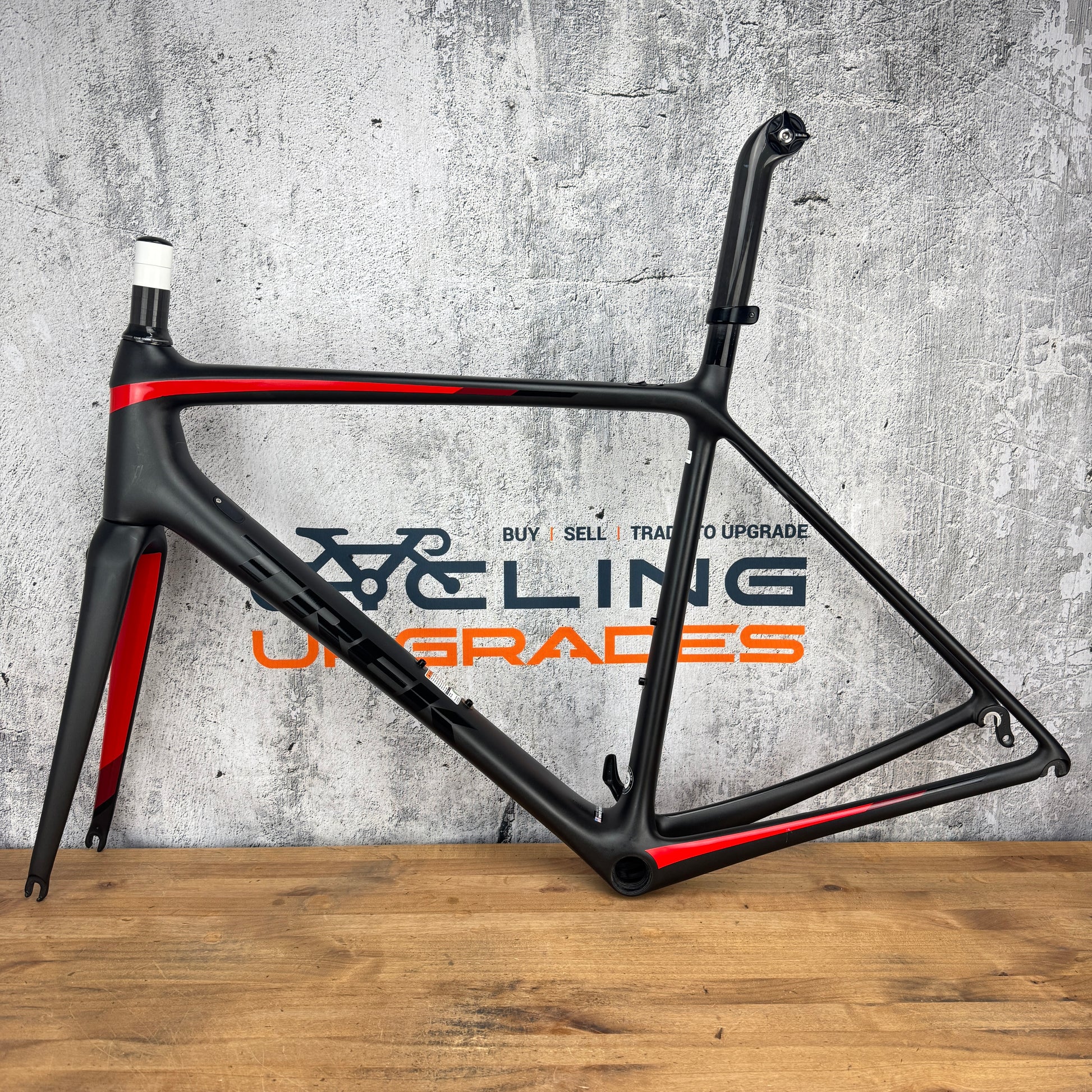

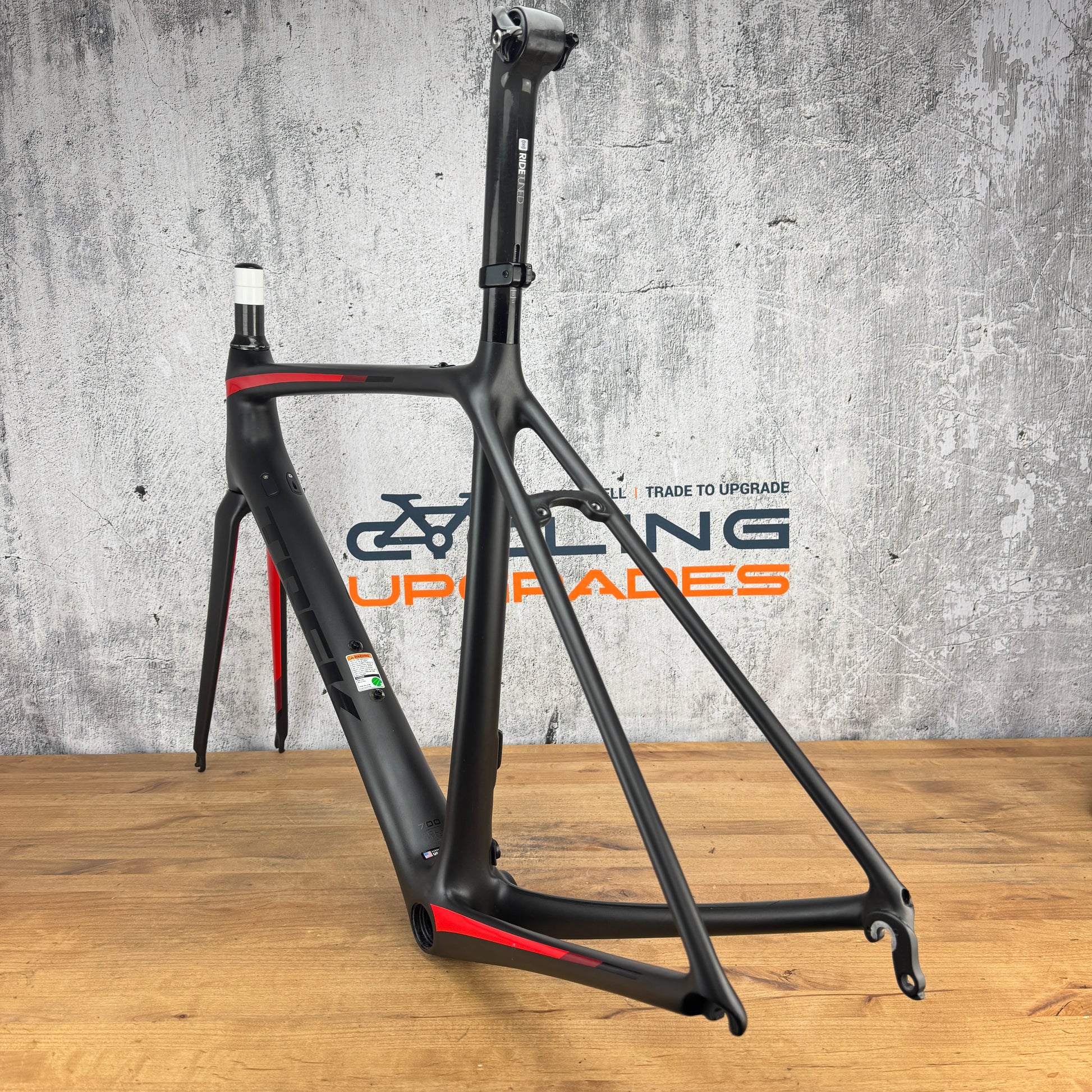

Frame: Trek 2016 Emonda SLR
Brake Type: Direct-Mount rim brake

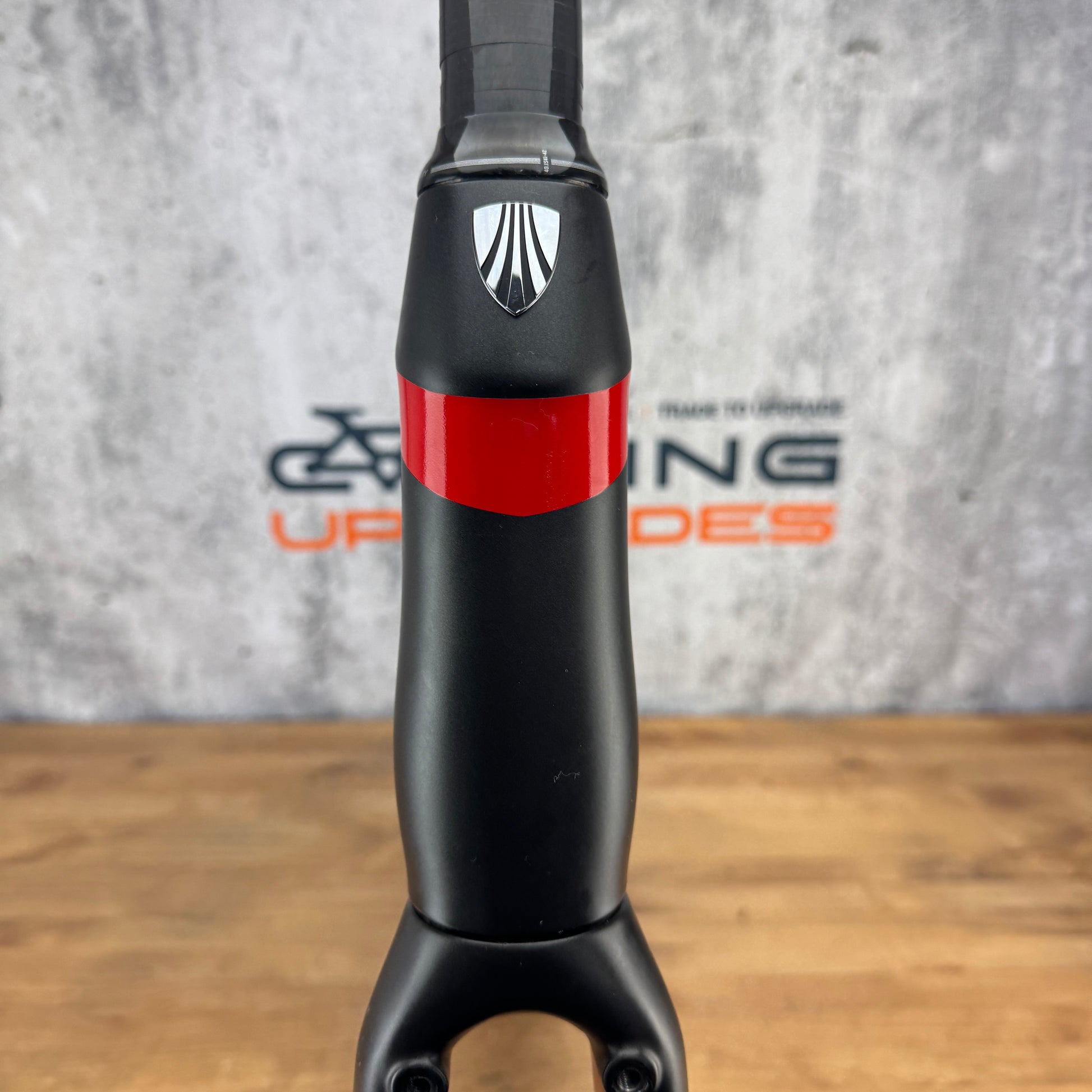

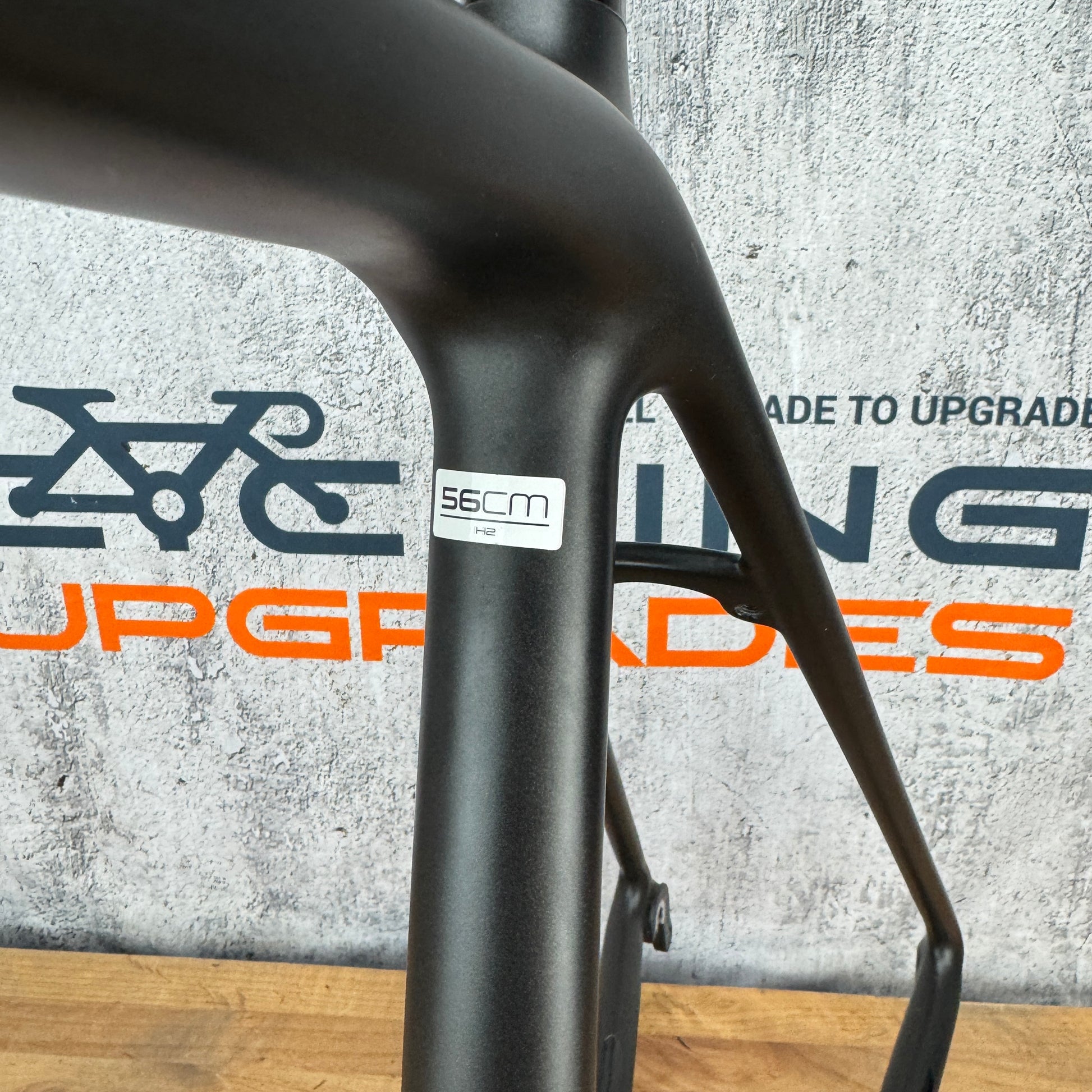

Size: 56cm. 560mm Effective Top Tube. Stack - 577mm. Reach - 387mm. Head Tube 170mm. Recommend buyer confirm and research full geometry online.

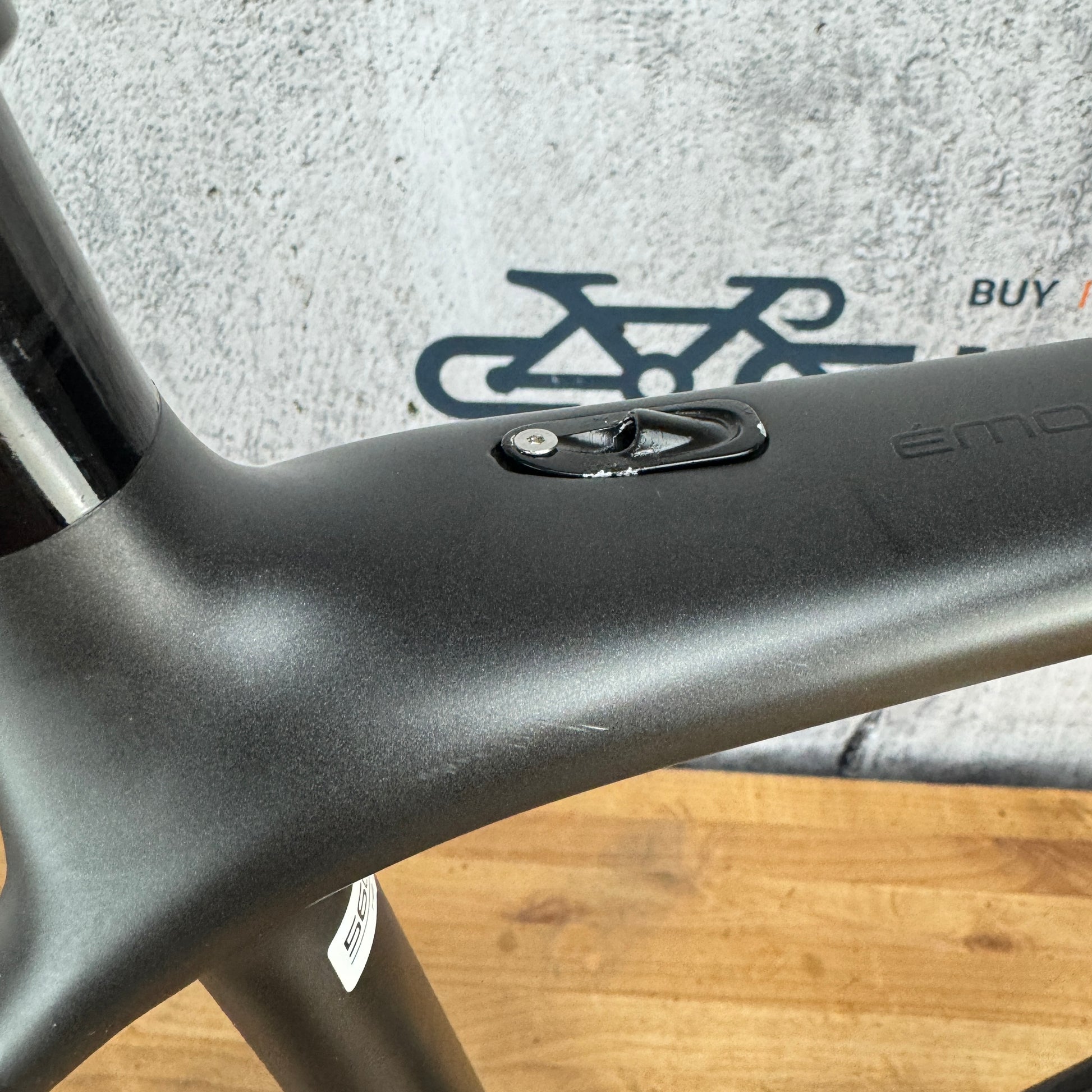

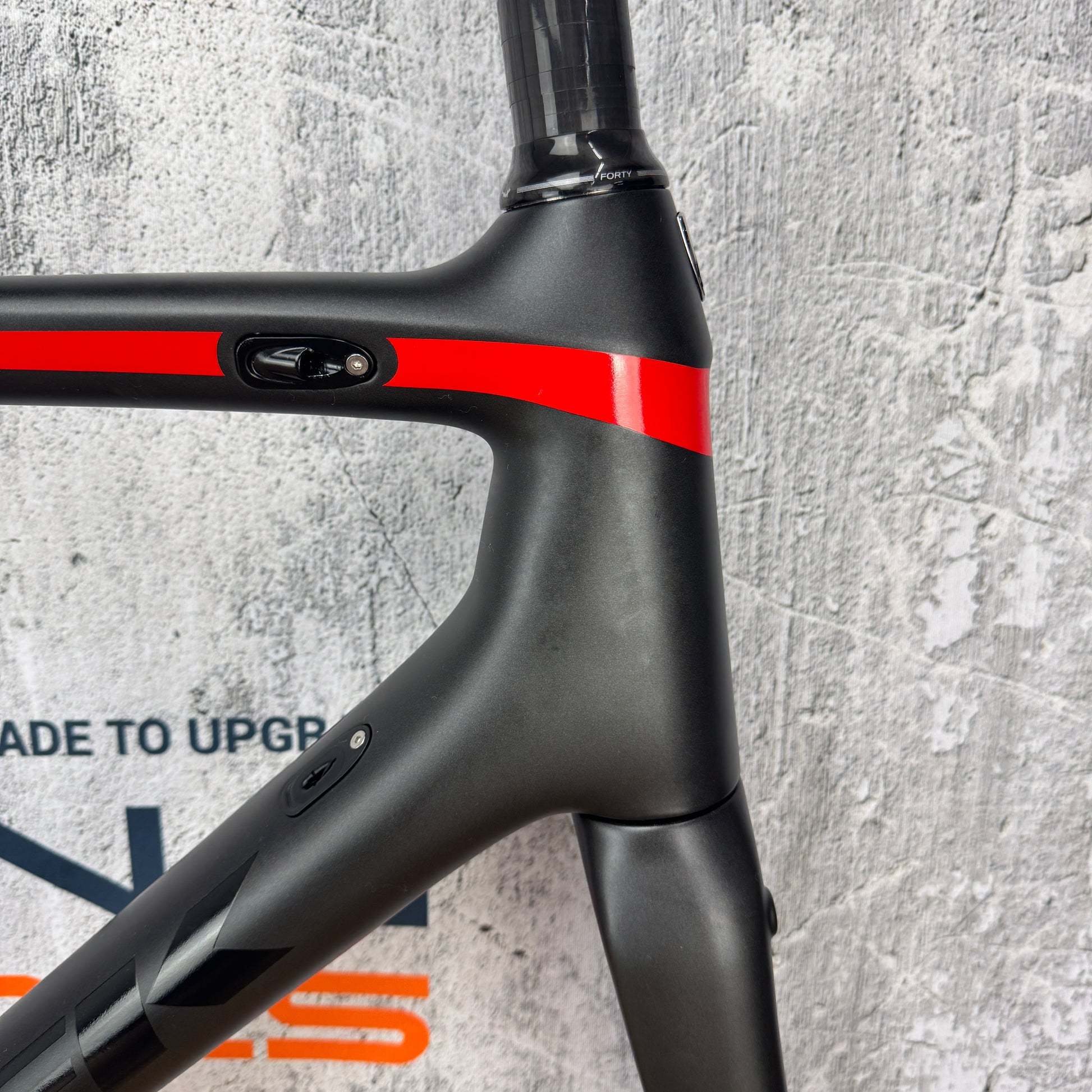

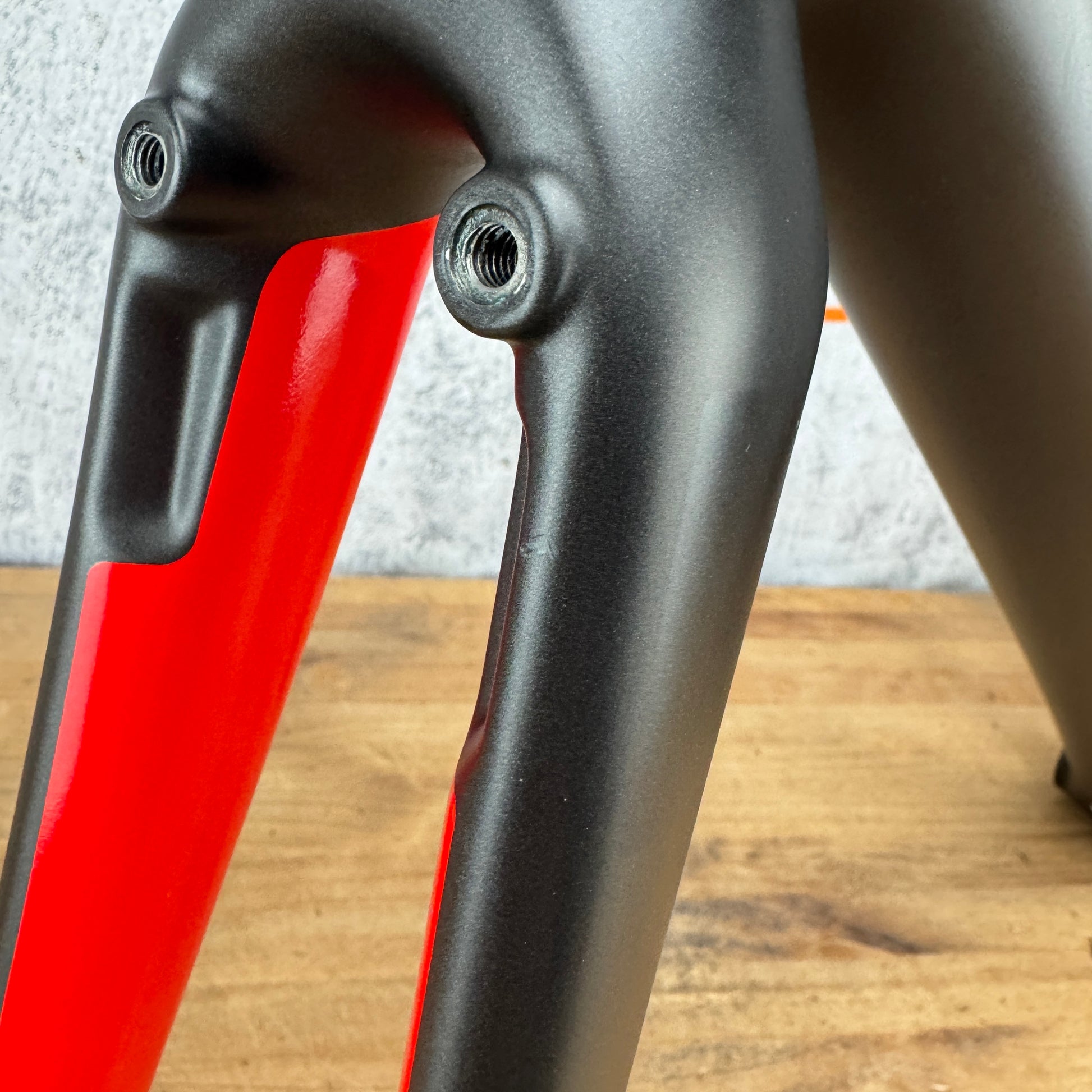

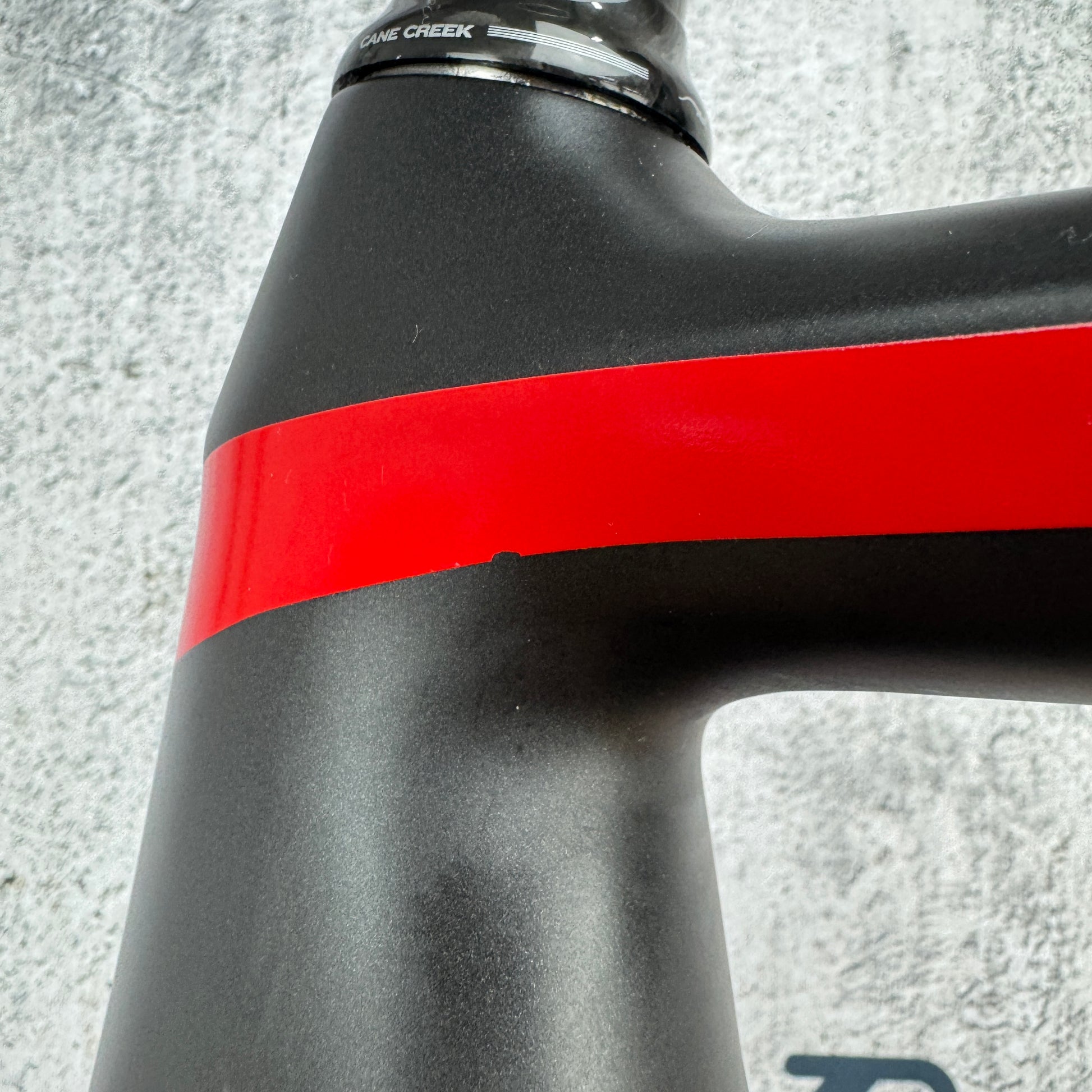

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There are a couple of light scratches on the fork, top tube, and a light paint chip on the head tube, see pictures #14-16. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with a mechanical groupset. Other frame/cable stops may be needed for Di2 or EPS setups.

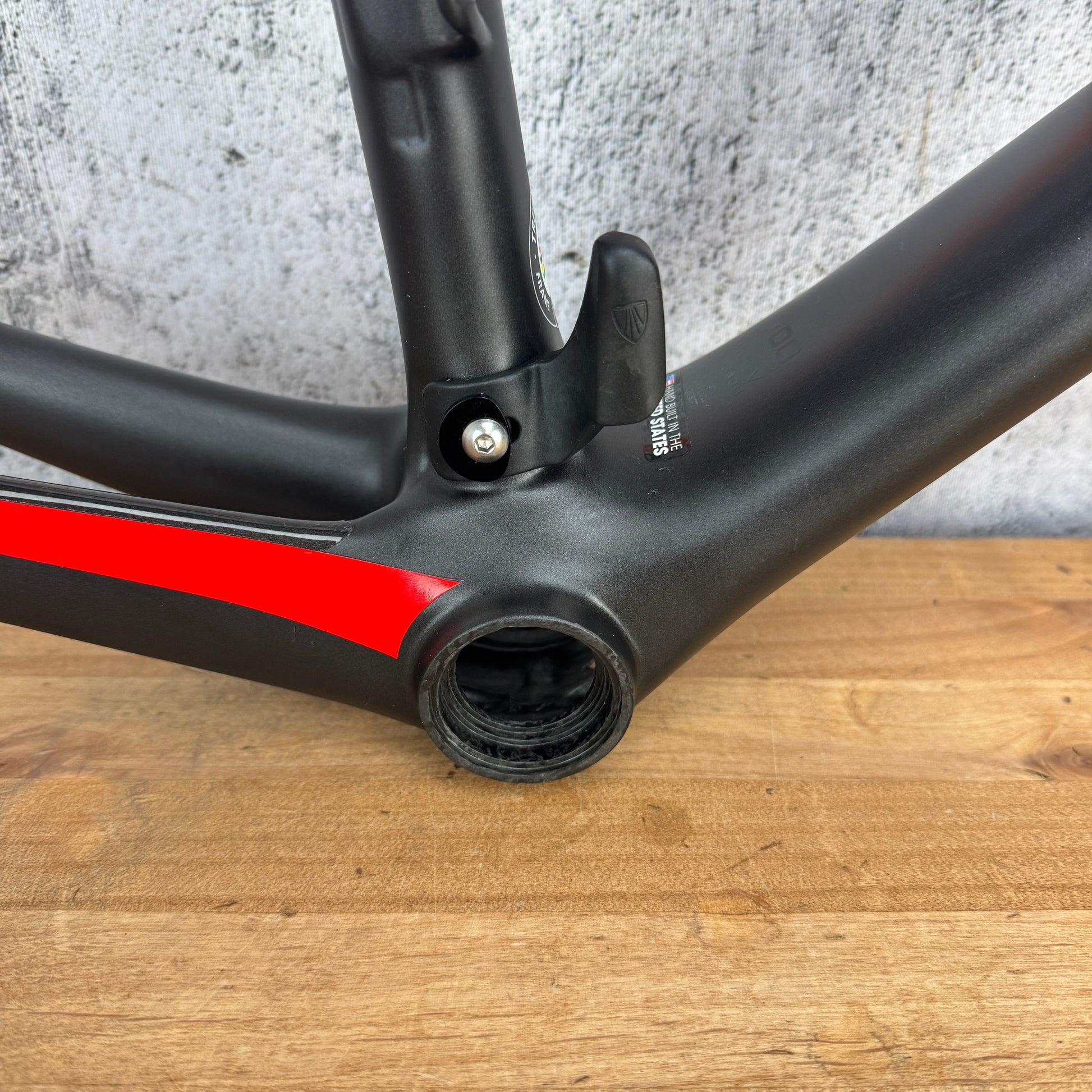

Bottom bracket: BB90 bottom bracket shell type (37mm shell diameter, 90mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 85mm of steerer above the top tube. 35mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

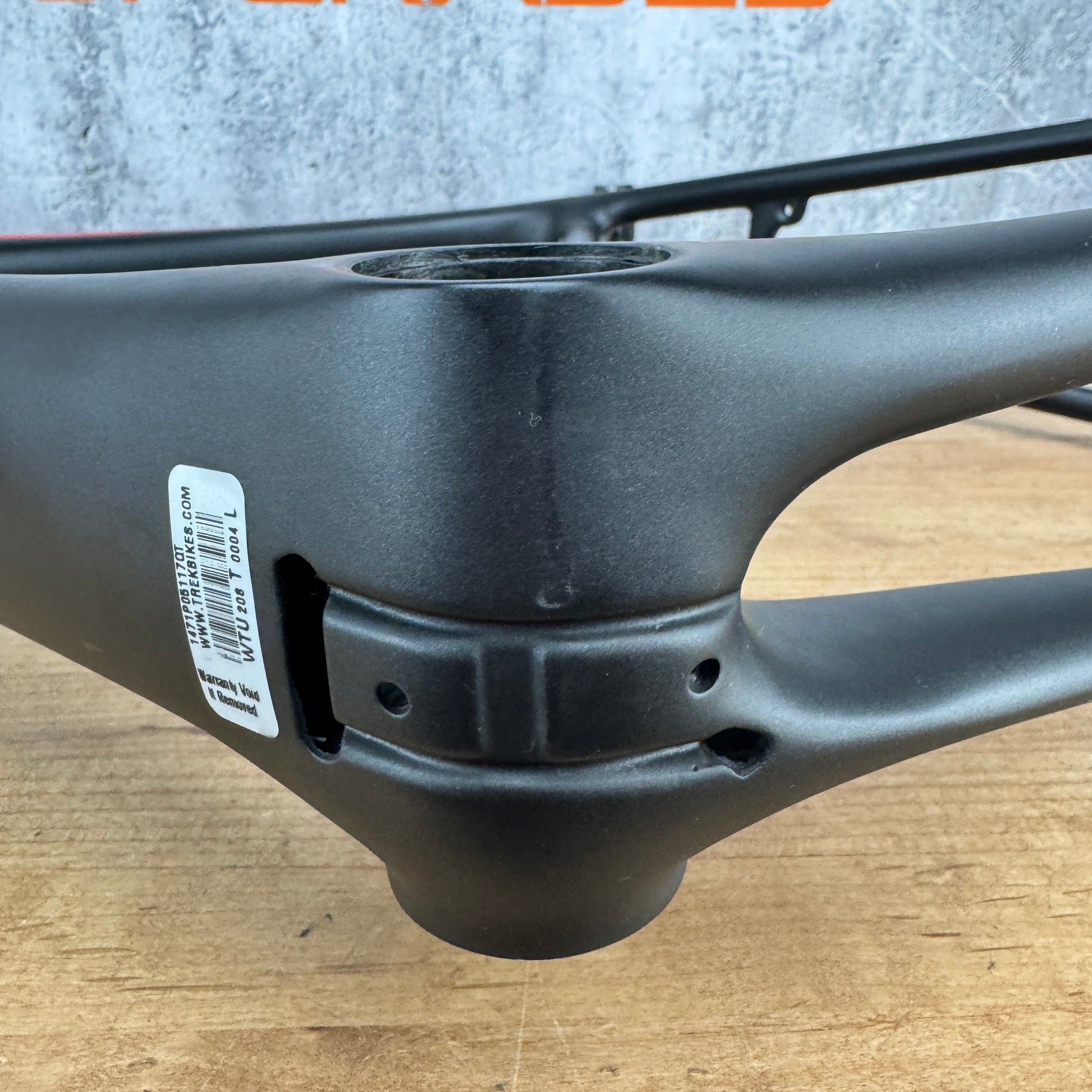

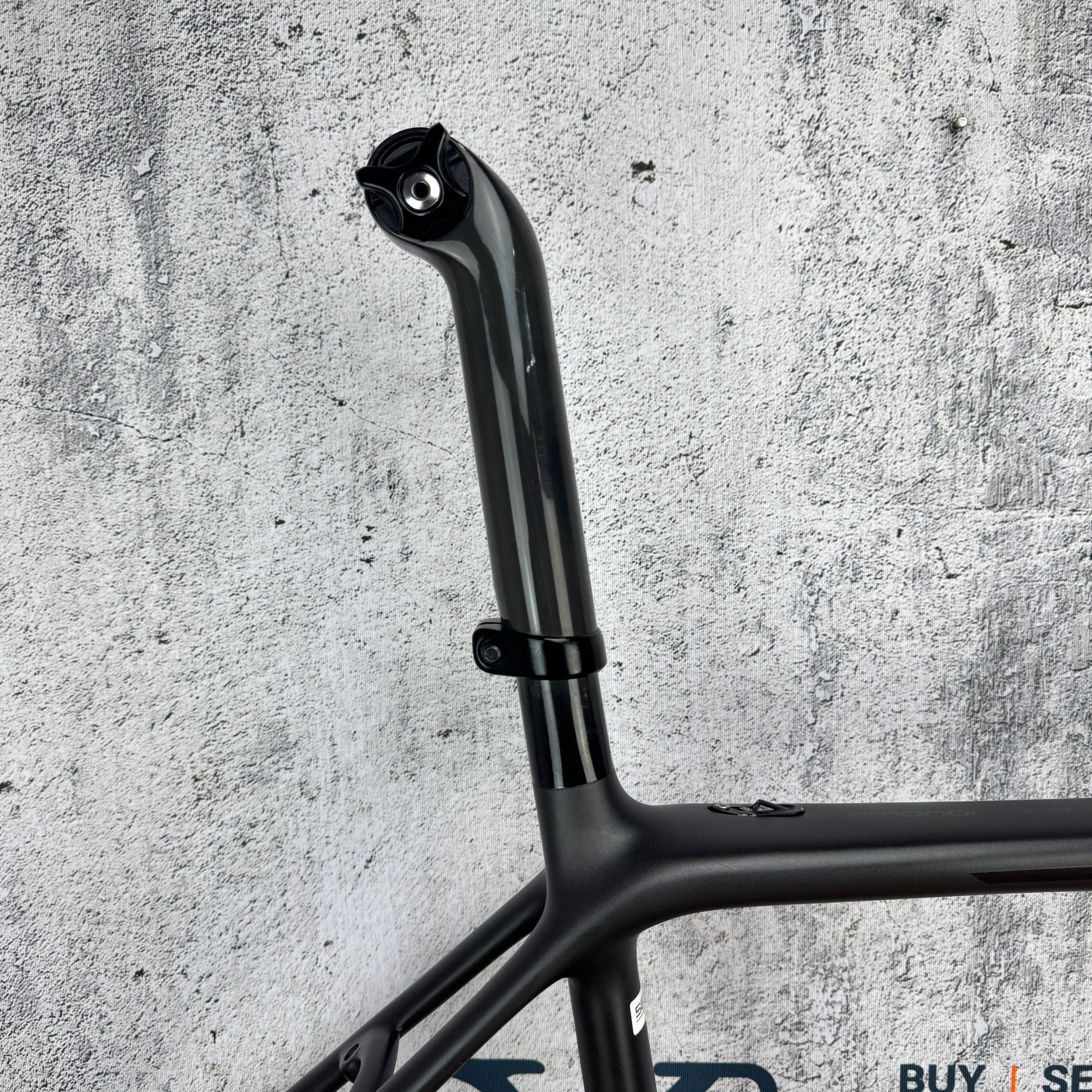

Seat Mast: Trek seat mast is included. Seatmast height is 634mm from center of bottom bracket. The minimum height to saddle rails is 720mm, and the maximum height to the saddle rails is 760mm. Add your saddle stack height to determine max saddle height from center of bottom bracket.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1385 grams as pictured.
What's included: Frame, fork, headset, rear derailleur hanger
