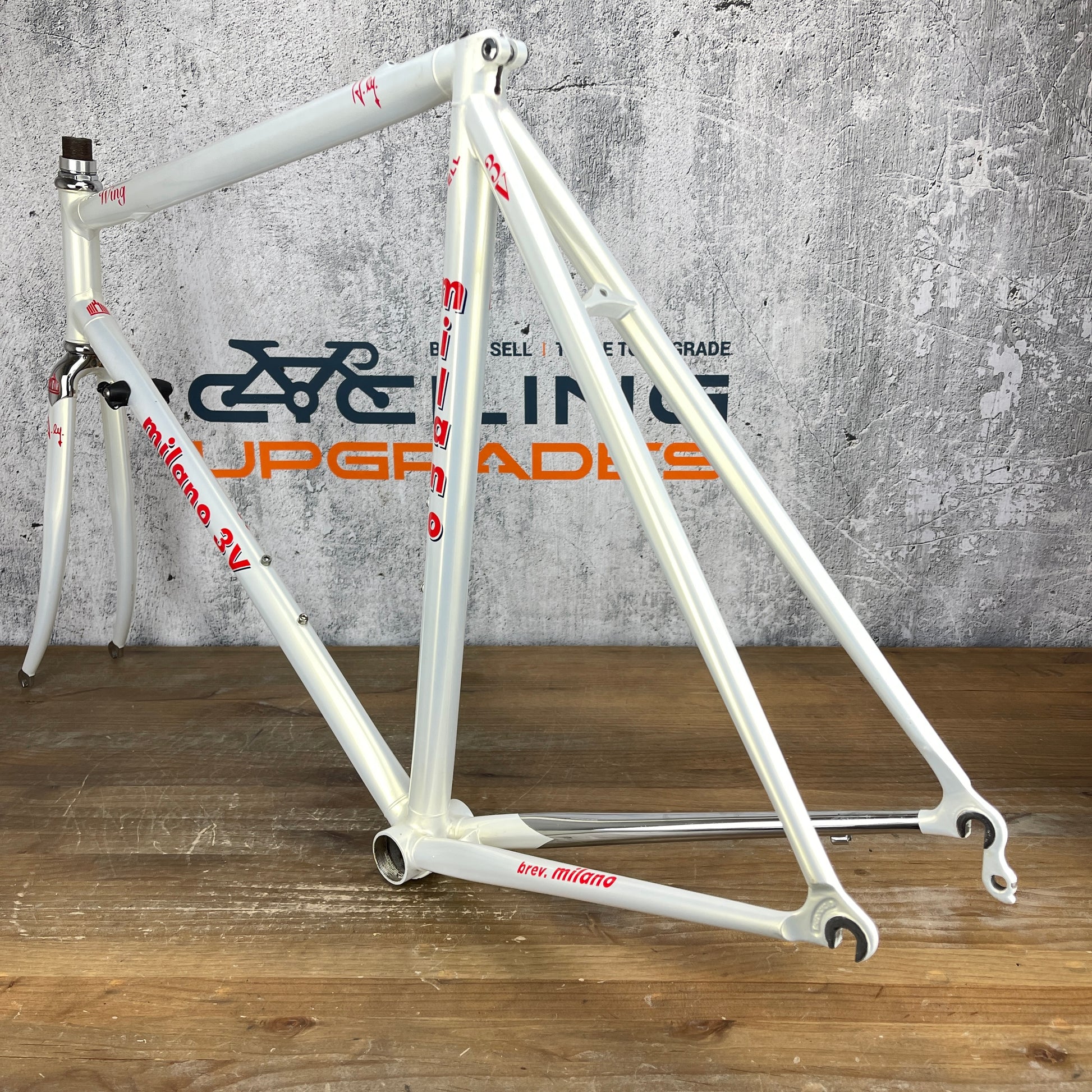

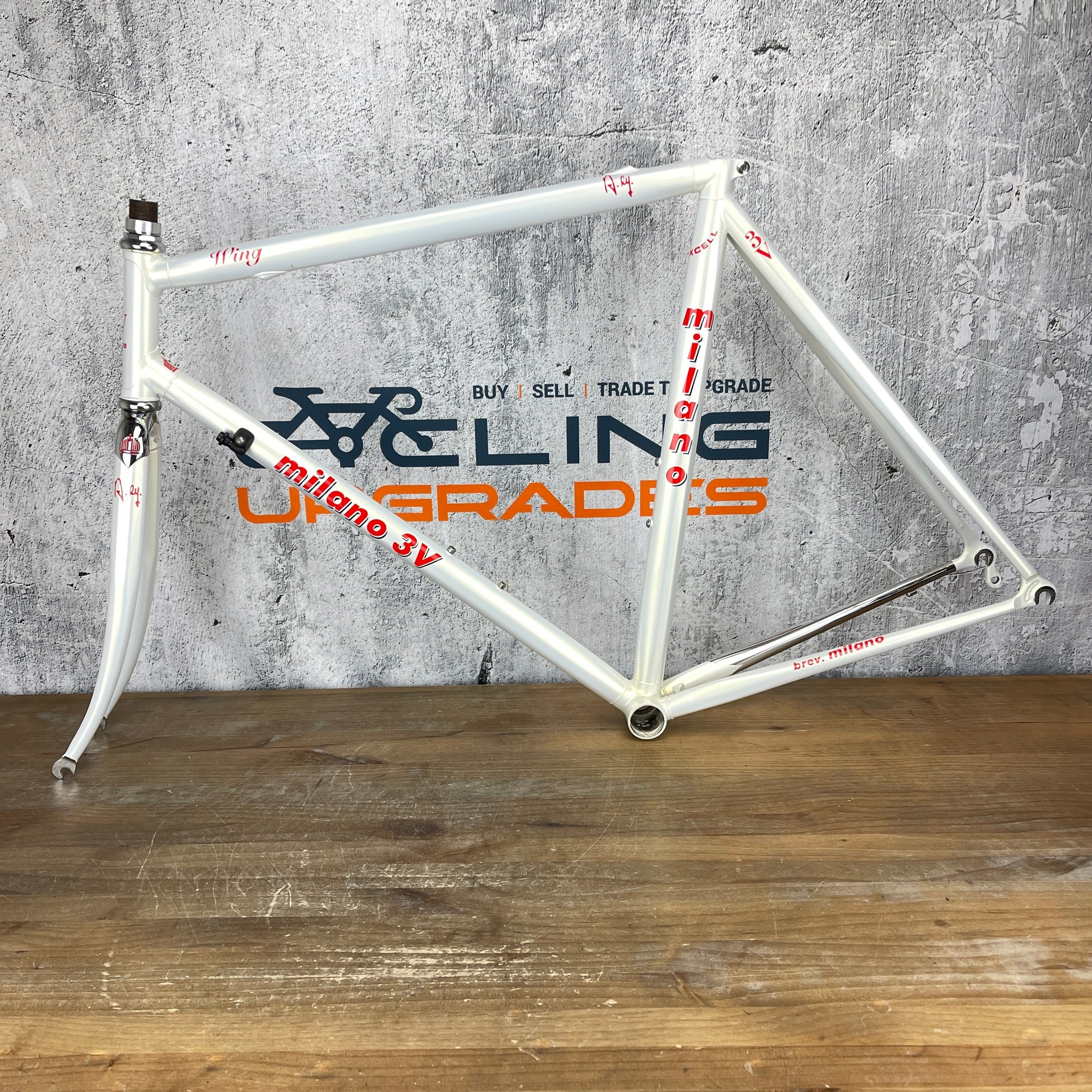

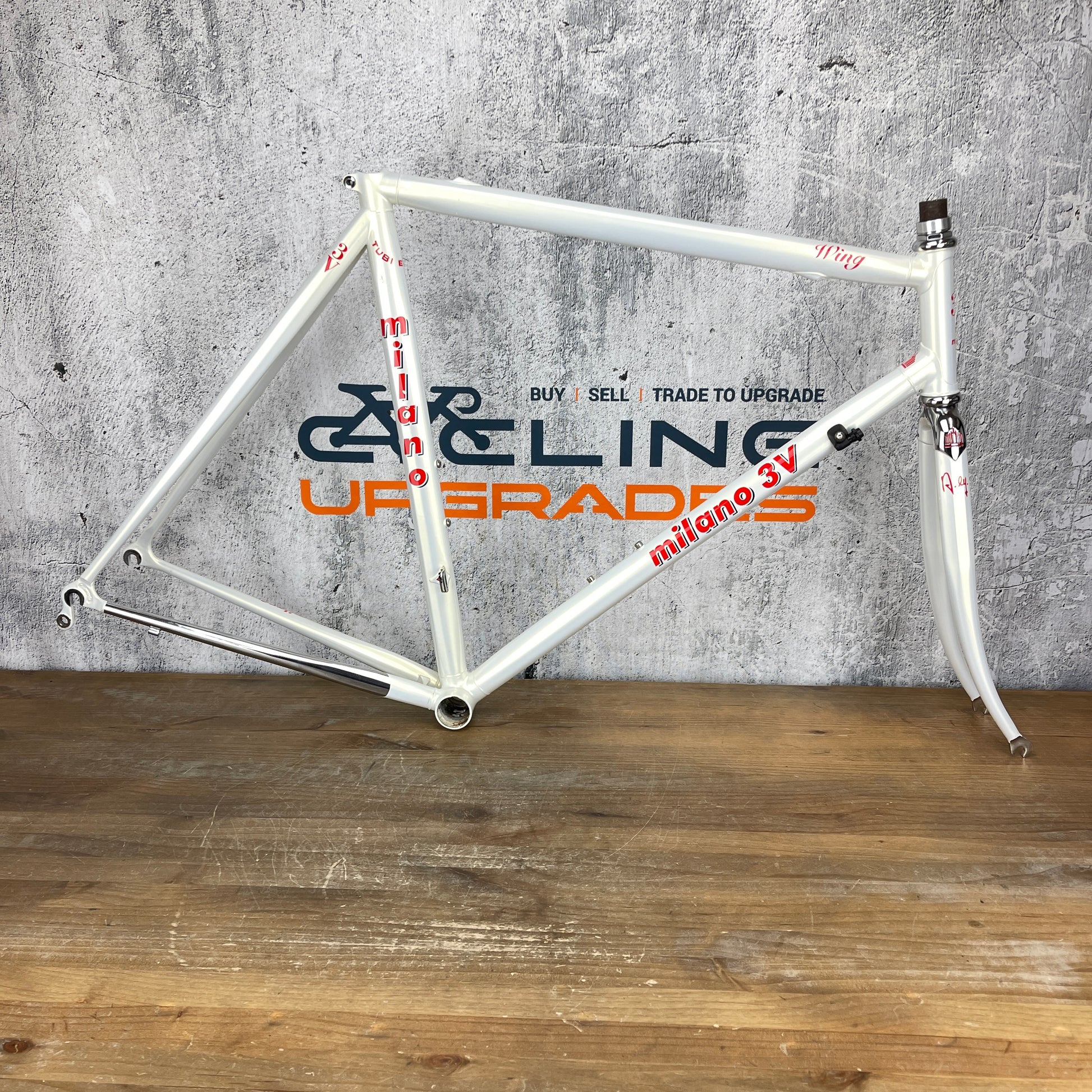

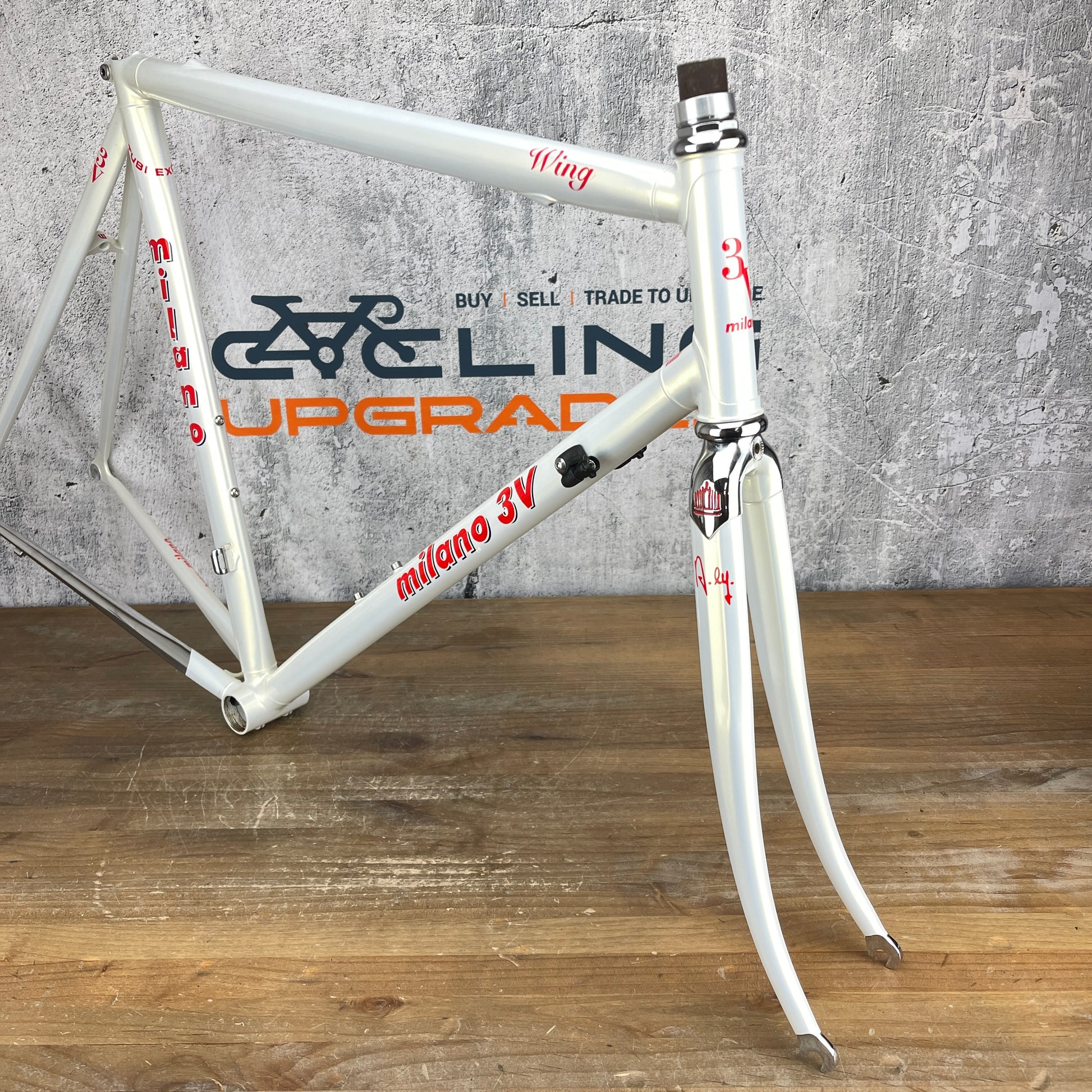

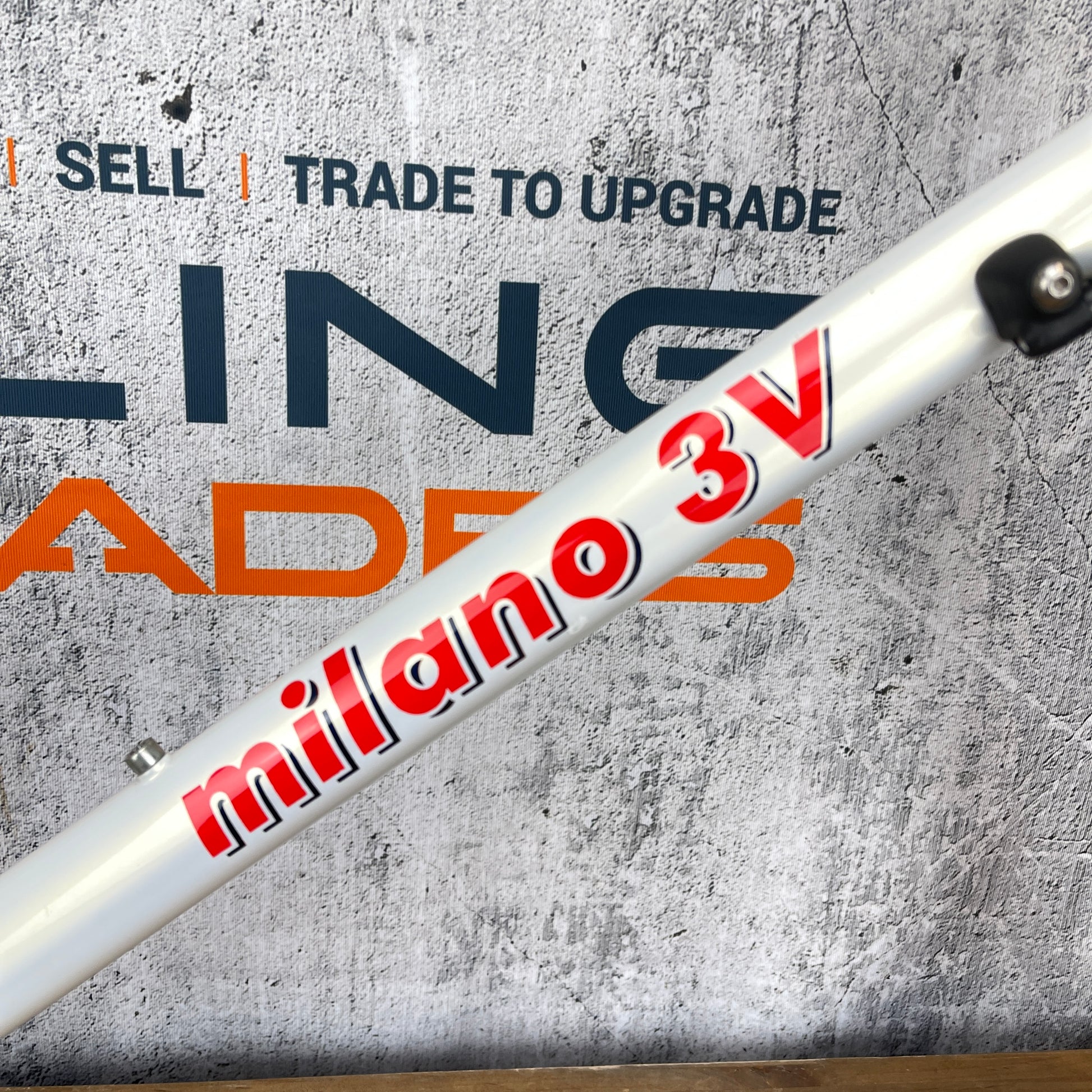

Frame: Milano 3V Wing
Color: Pearl White
Brake type: Center-Mount rim brake

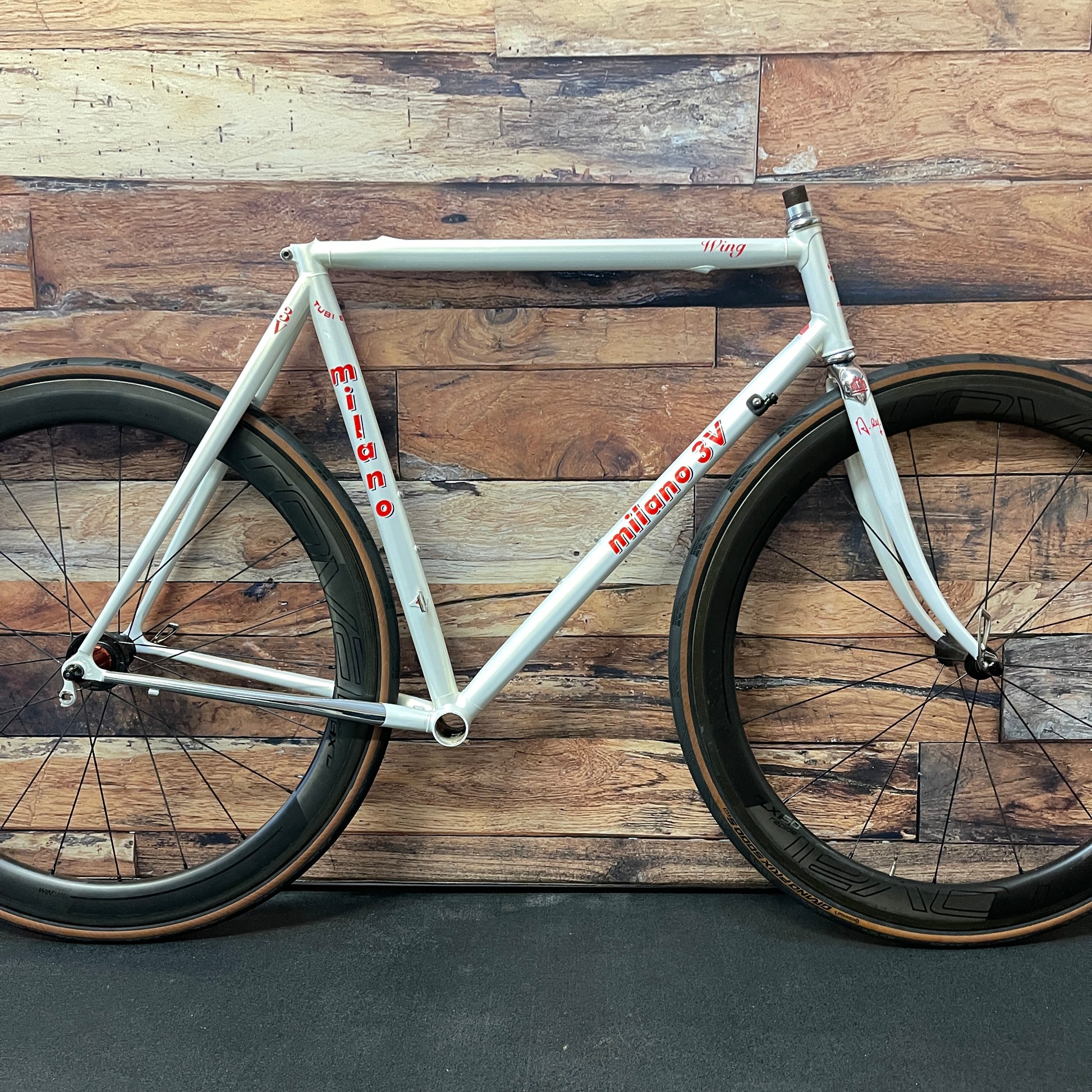

Size: Stamped as a 56cm under the bottom bracket. Actual measurements taken by hand are approximate and are as follows: 545mm stack, 400mm reach, 810mm standover height. 550mm actual top tube center to center. 540mm center of bottom bracket to center of top tube. 560mm center of bottom bracket to top of seat tube. Head tube 140mm. 410mm chainstay length. If other measurements or take-offs are needed, please feel free to ask. We have included in our last picture a photo of the frame with a wheelset on it to show the head and seat tube angles and top tube slope.

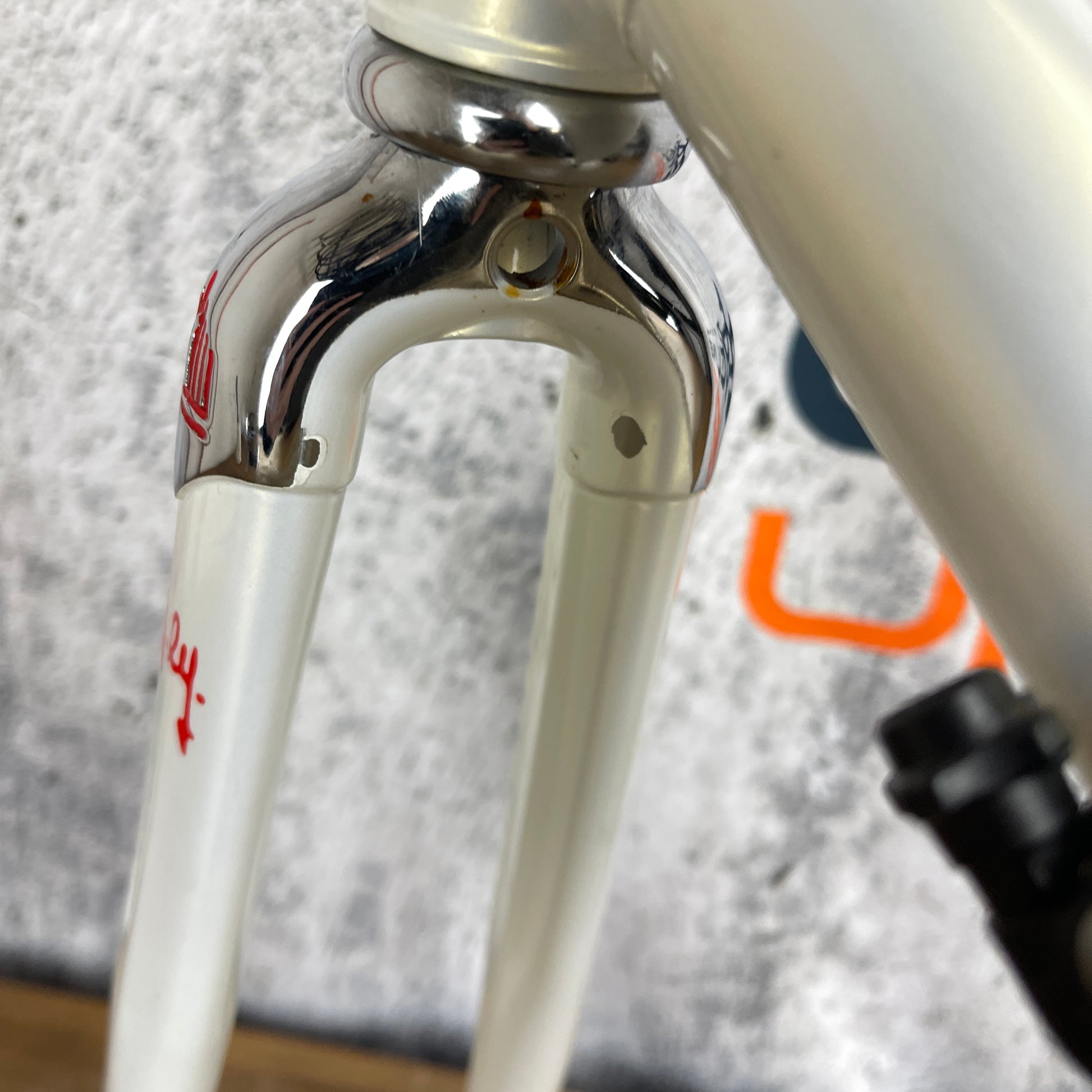

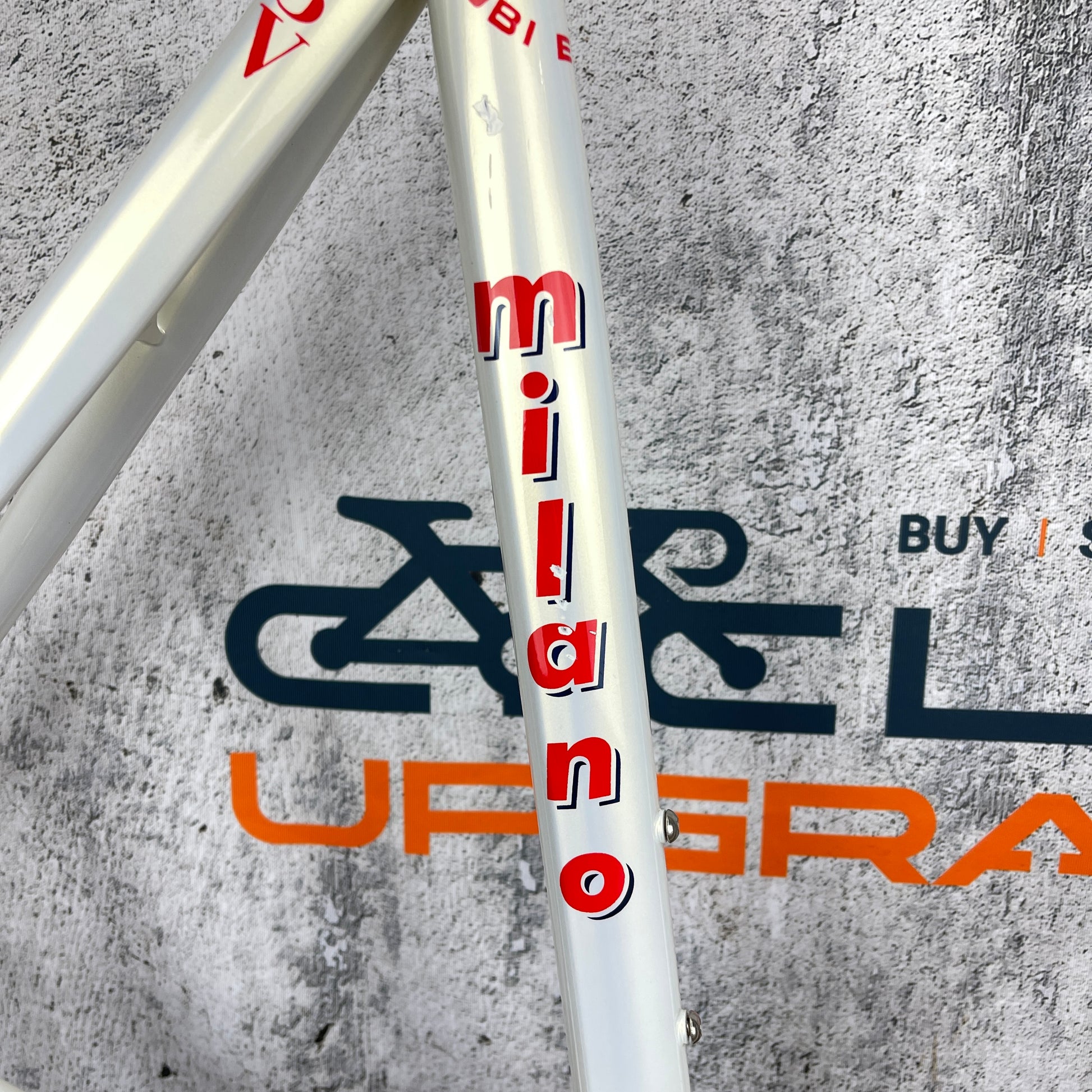

Condition: This frame has never been built up or ridden. No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some scratches on the seat tube shown in pic #7, and some paint chips on backside of the fork shown in pic #8. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups.

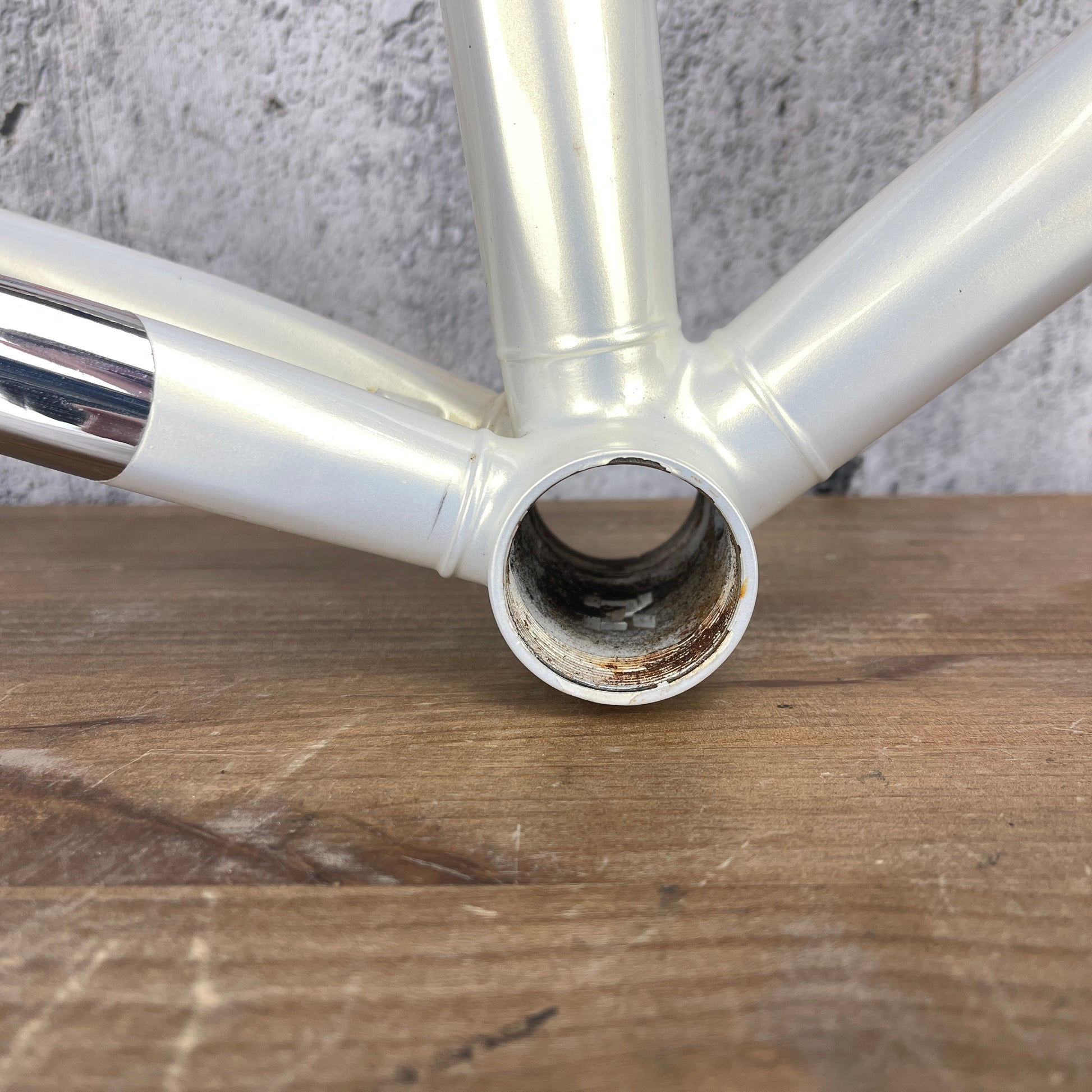

Bottom bracket: Italian threaded bottom bracket shell type. No bottom bracket currently installed. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: N/A. this fork uses a quill style stem.
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 2658 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, headset.
