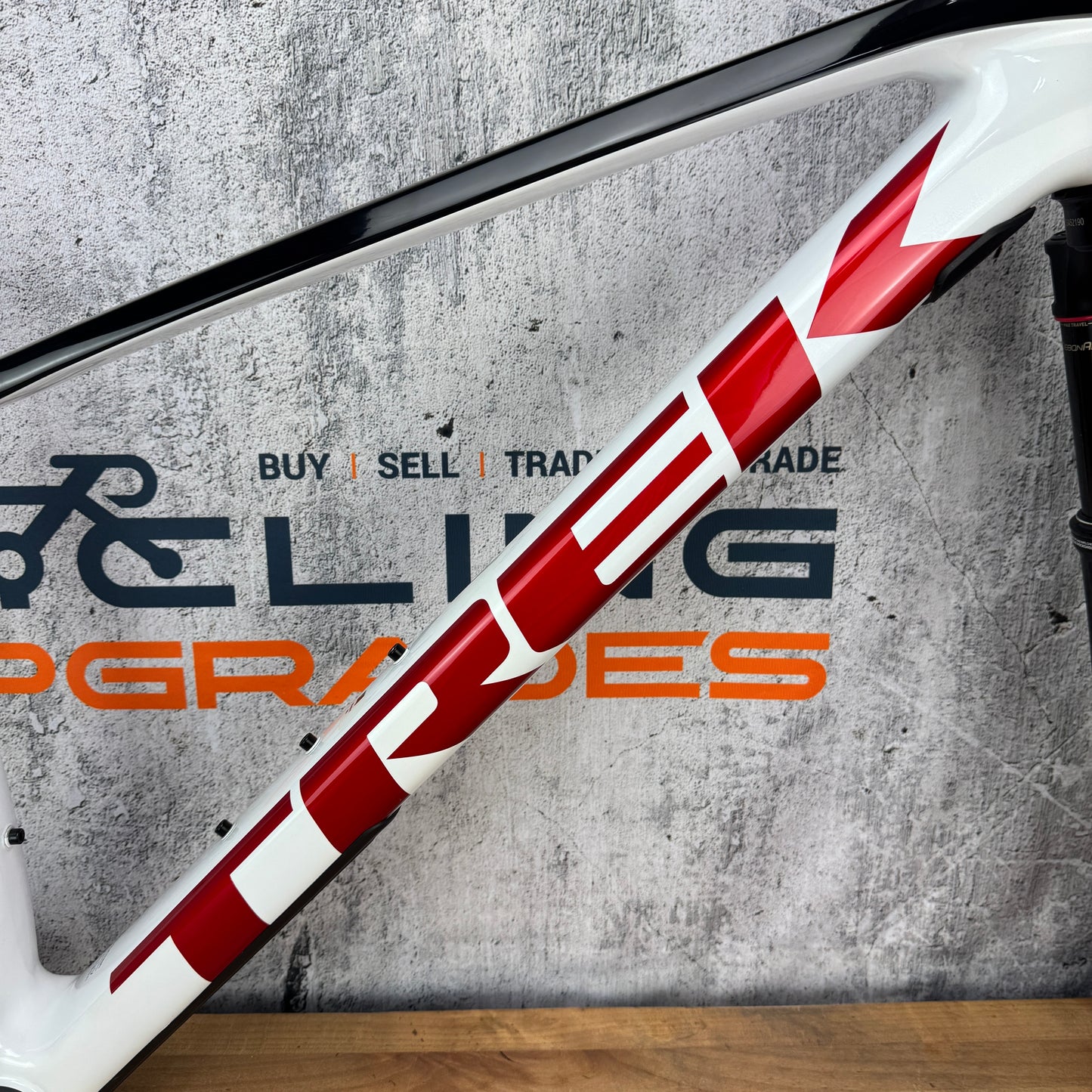

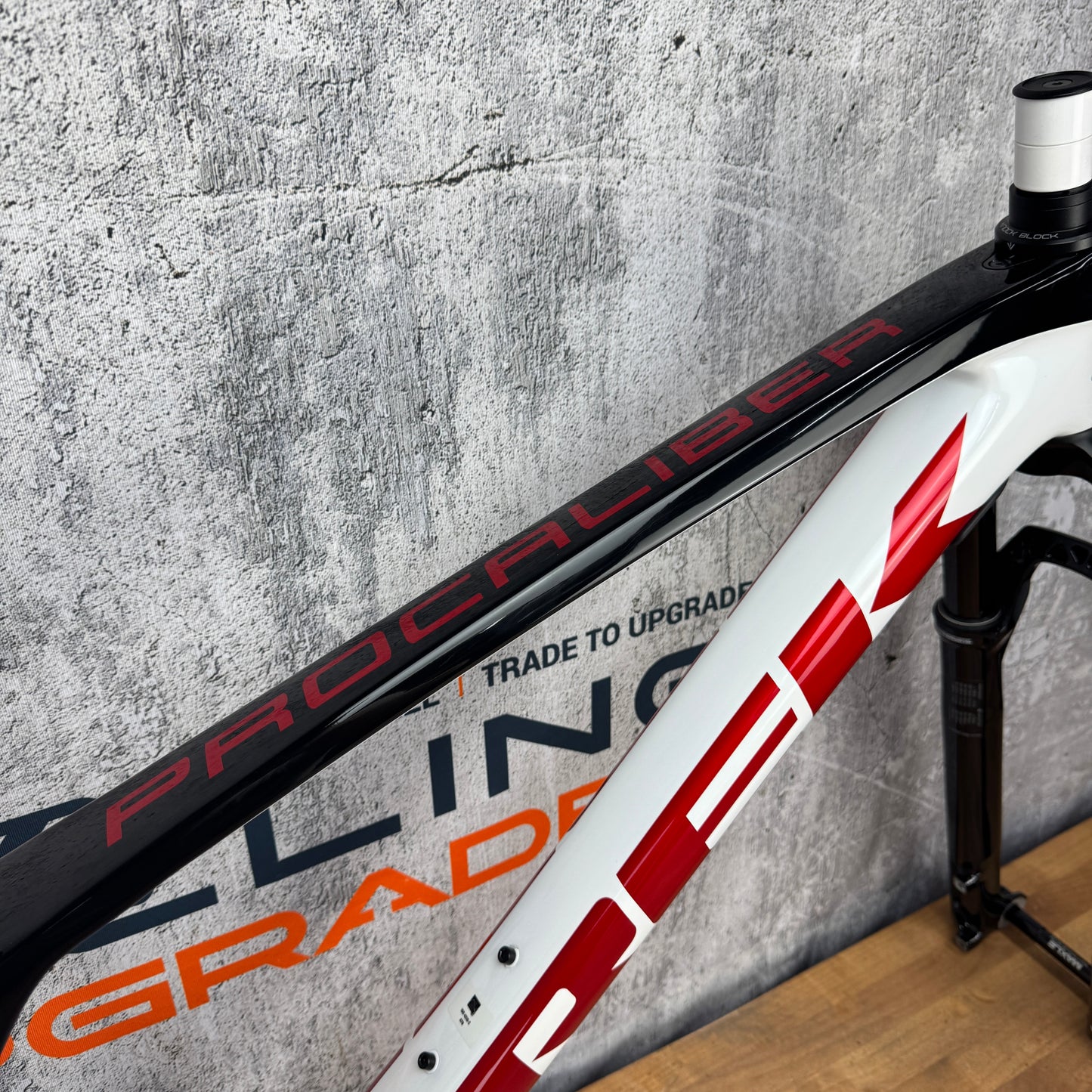

Frame: 2024 Trek Procaliber Gen 2 (UDH)
UDH: This frameset is compatible with UDH and regular derailleurs.

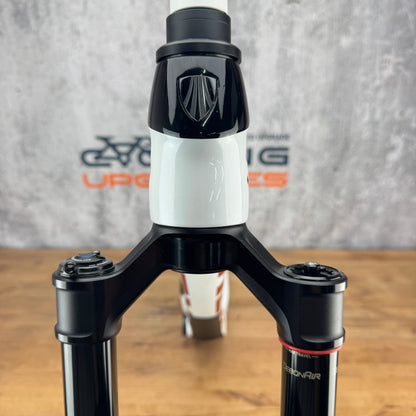

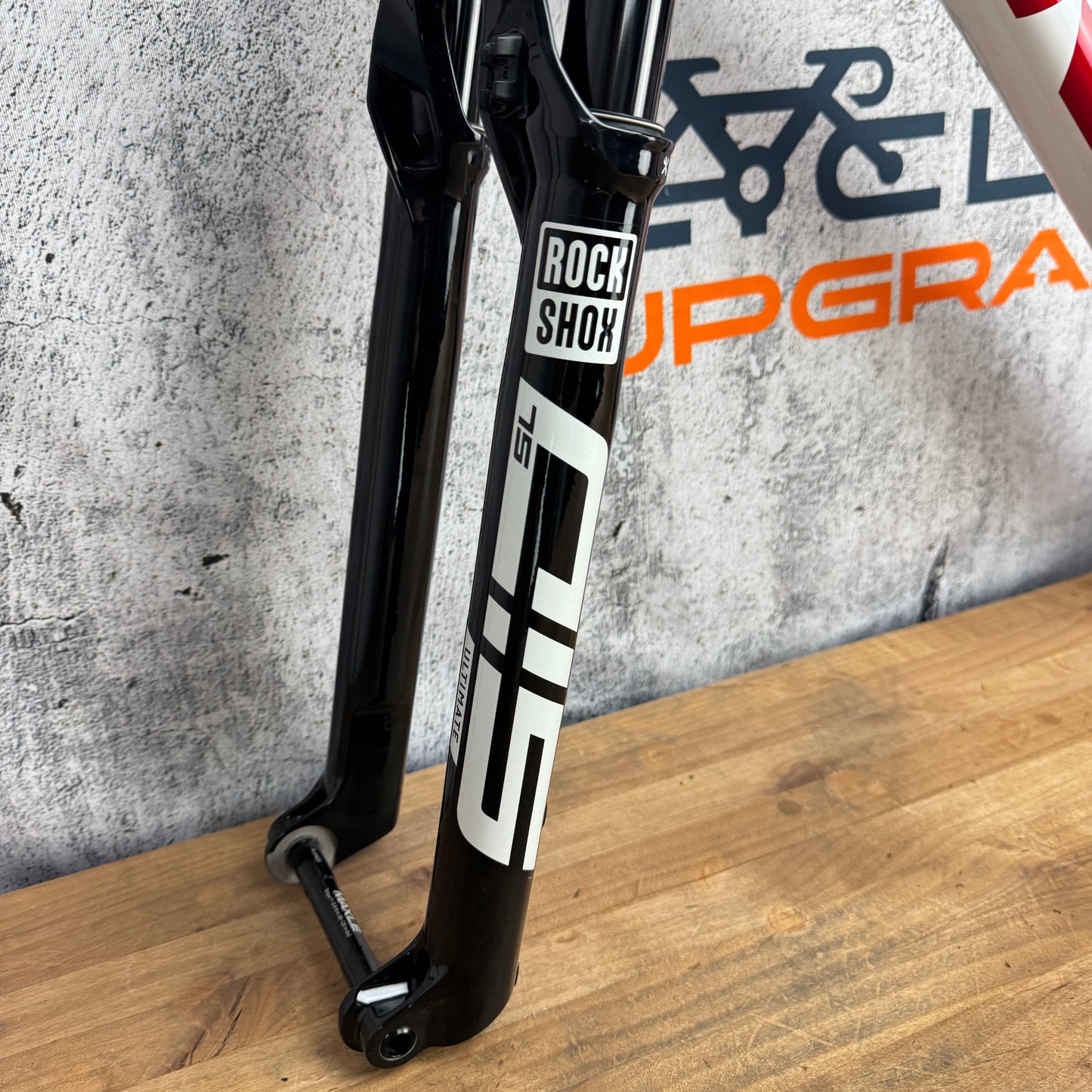

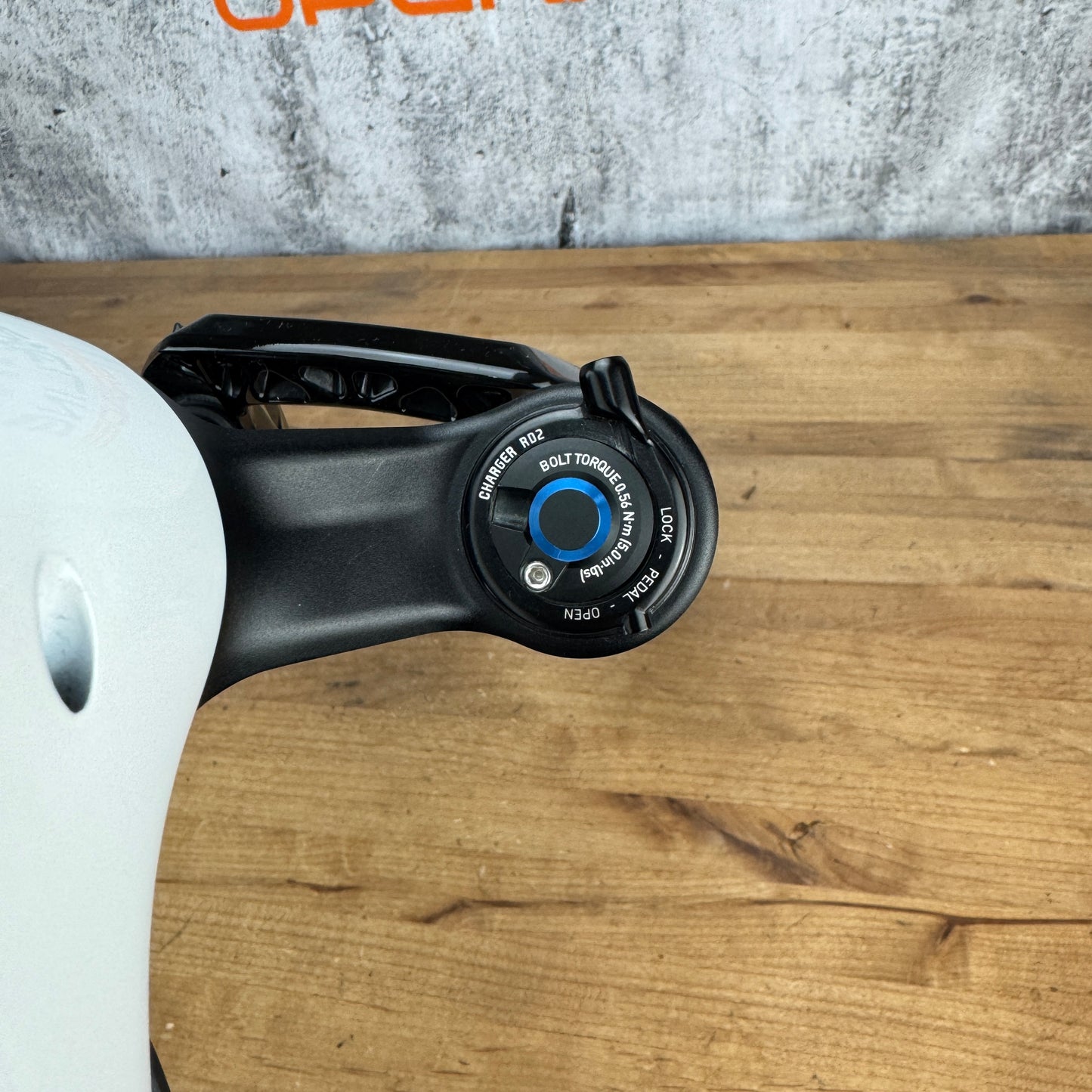

Fork: 100mm Travel, SID SL Ultimate 3P, Serial 24t33452190, Charger Race Day 2, FS-SIDS-ULT3-D1
Color: White/Black/Red
Brake Type: Post-Mount disc brake
Size: Medium. 598mm Effective Top Tube. Stack - 614mm. Reach - 430mm. Head Tube 90mm. Recommend buyer confirm and research full geometry online.

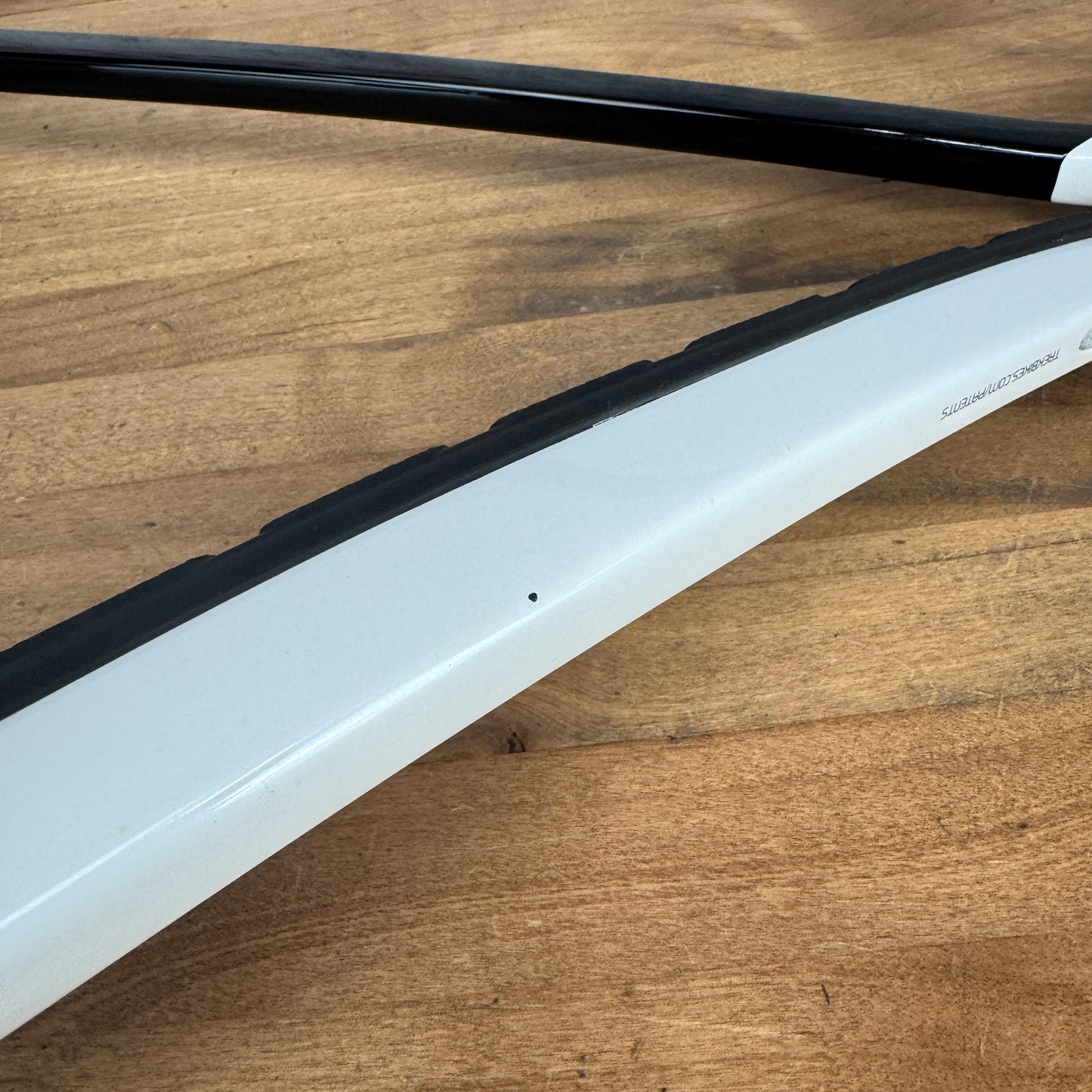

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There is a small scuff and a light chip on the chain stays, see picture #13-14. There is a very small scuff on the seat tube, see picture #15. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for Di2, Sram AXS, or mechanical groupsets. This frame was previously setup with a mechanical groupset.
Bottom bracket: BB92 bottom bracket shell type (41mm shell diameter, 92mm shell width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: 60mm of steerer above the top tube. 15mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

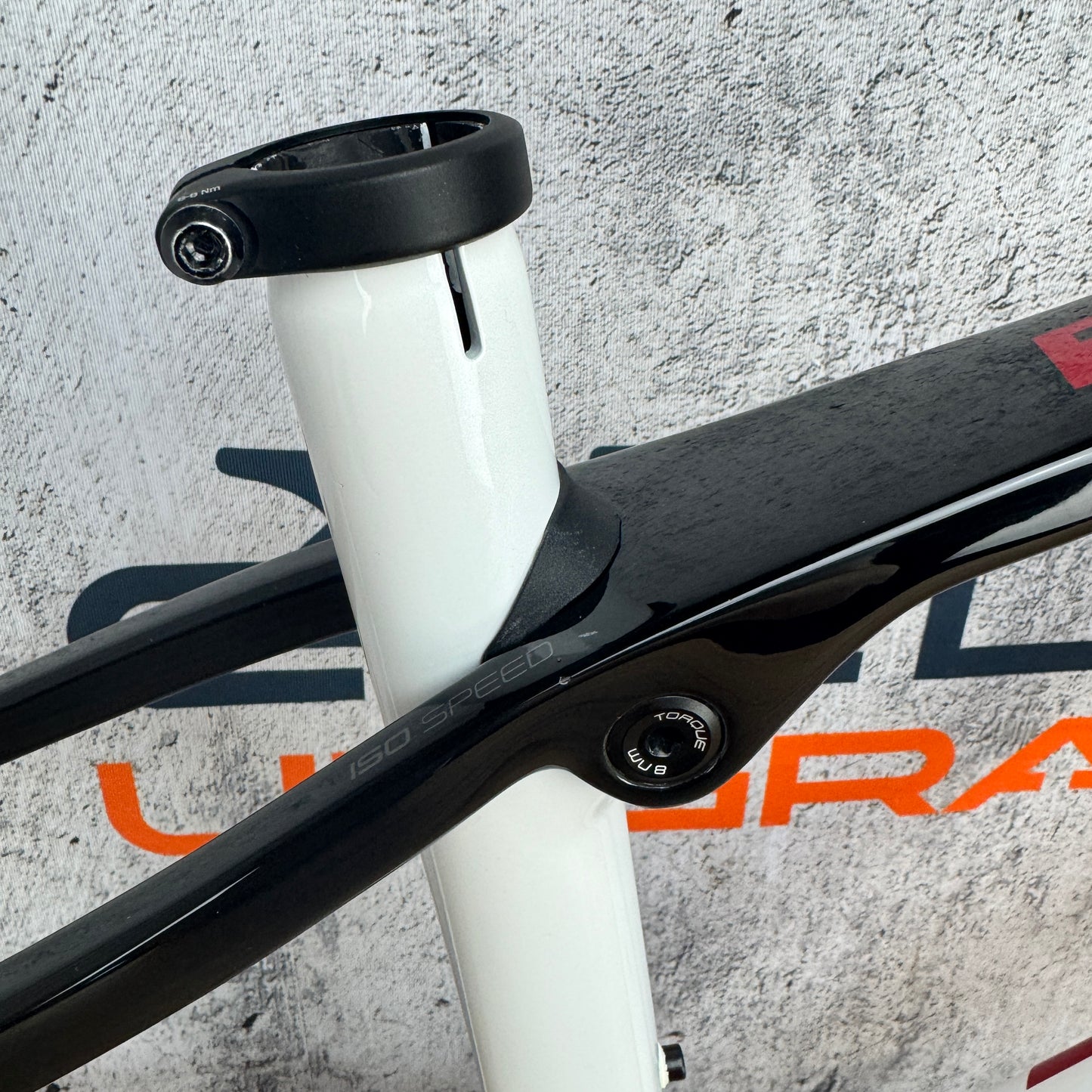

Seatpost: 31.6mm diameter. No seatpost included

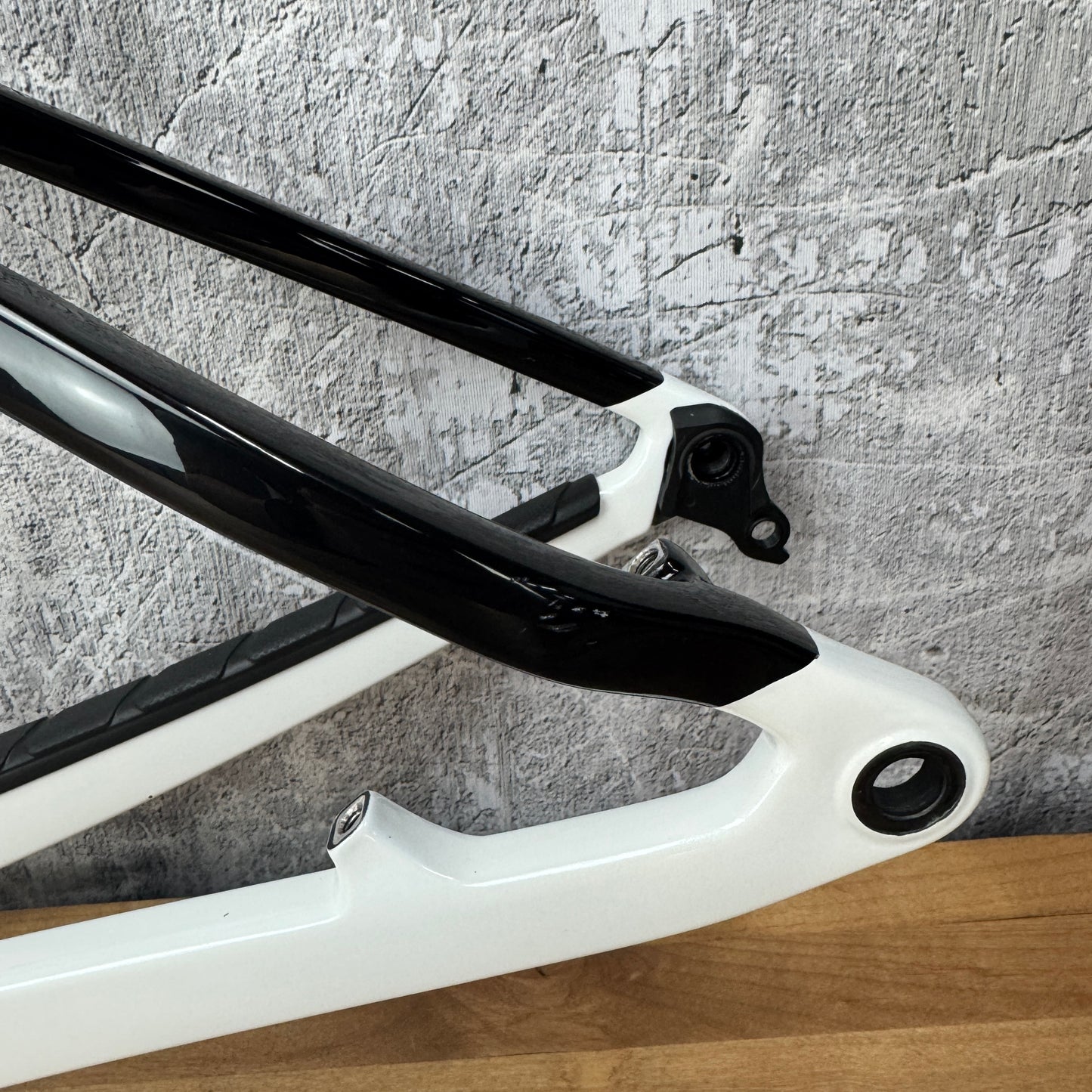

Dropout Spacing: Front 15mm Thru Axle x 110mm, Rear 12mm Thru Axle x 148mm.
Weight: 6.59 lbs / 2.99 kg as pictured.
What's included: Frame, fork, headset, rear derailleur hanger, bottom bracket, thru axles
