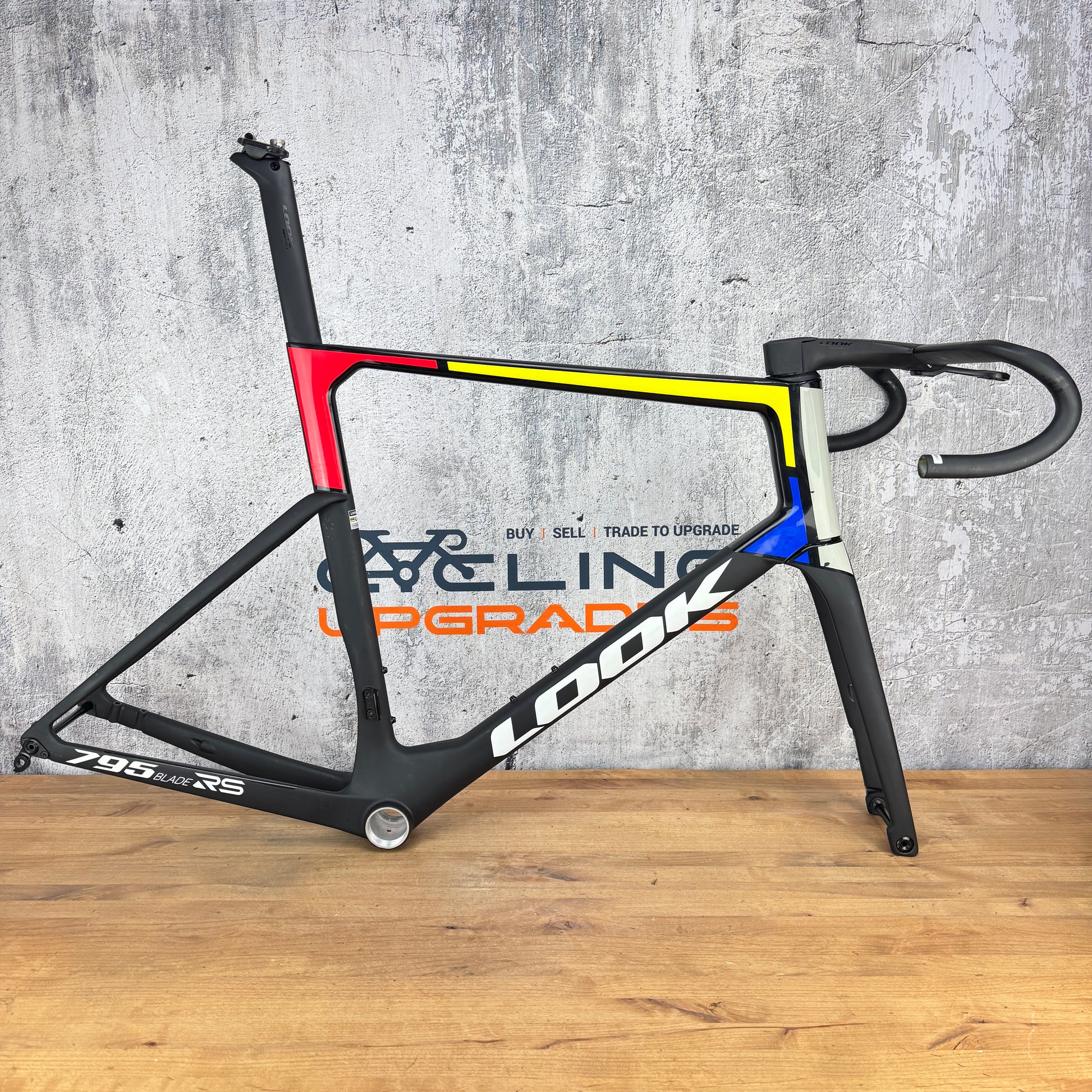

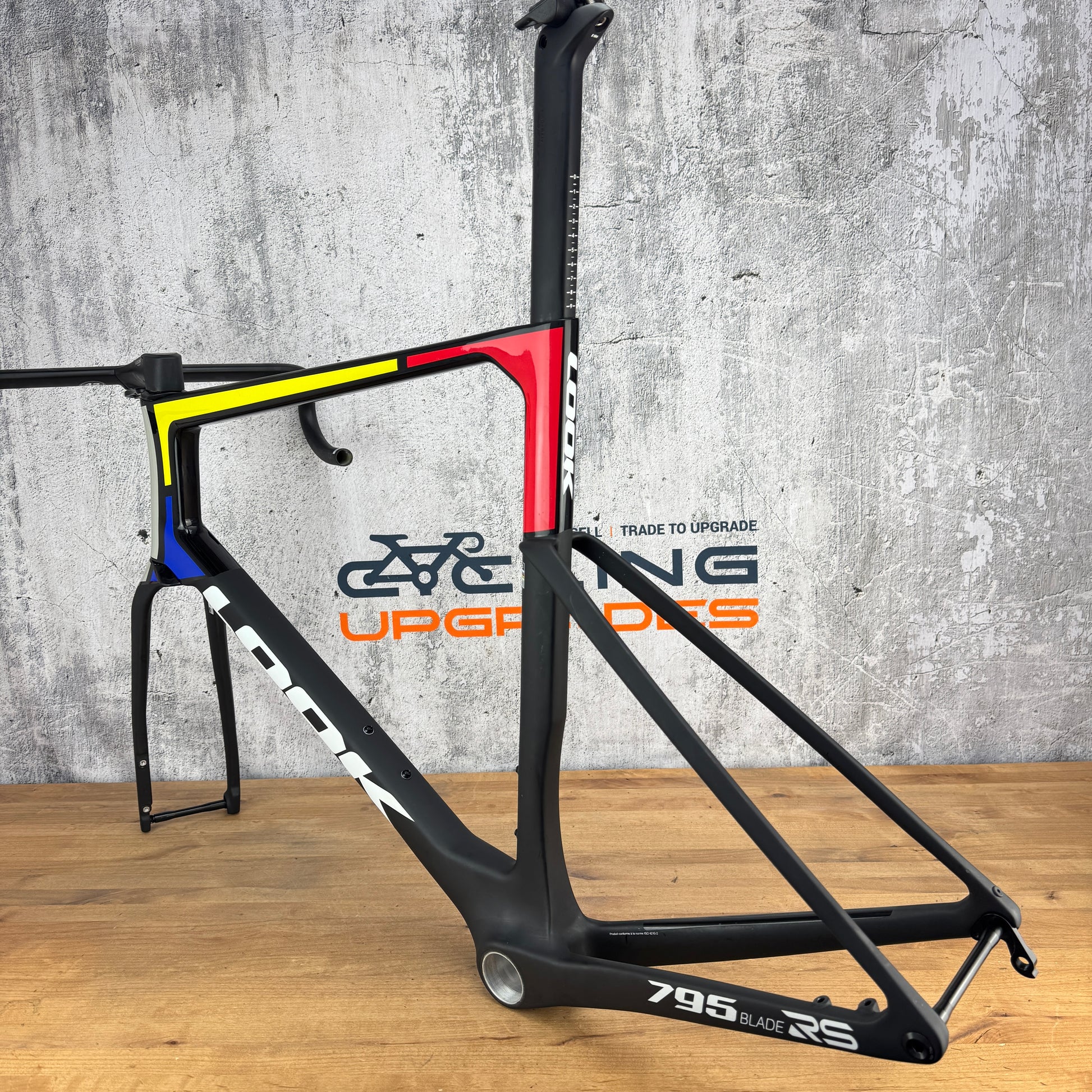

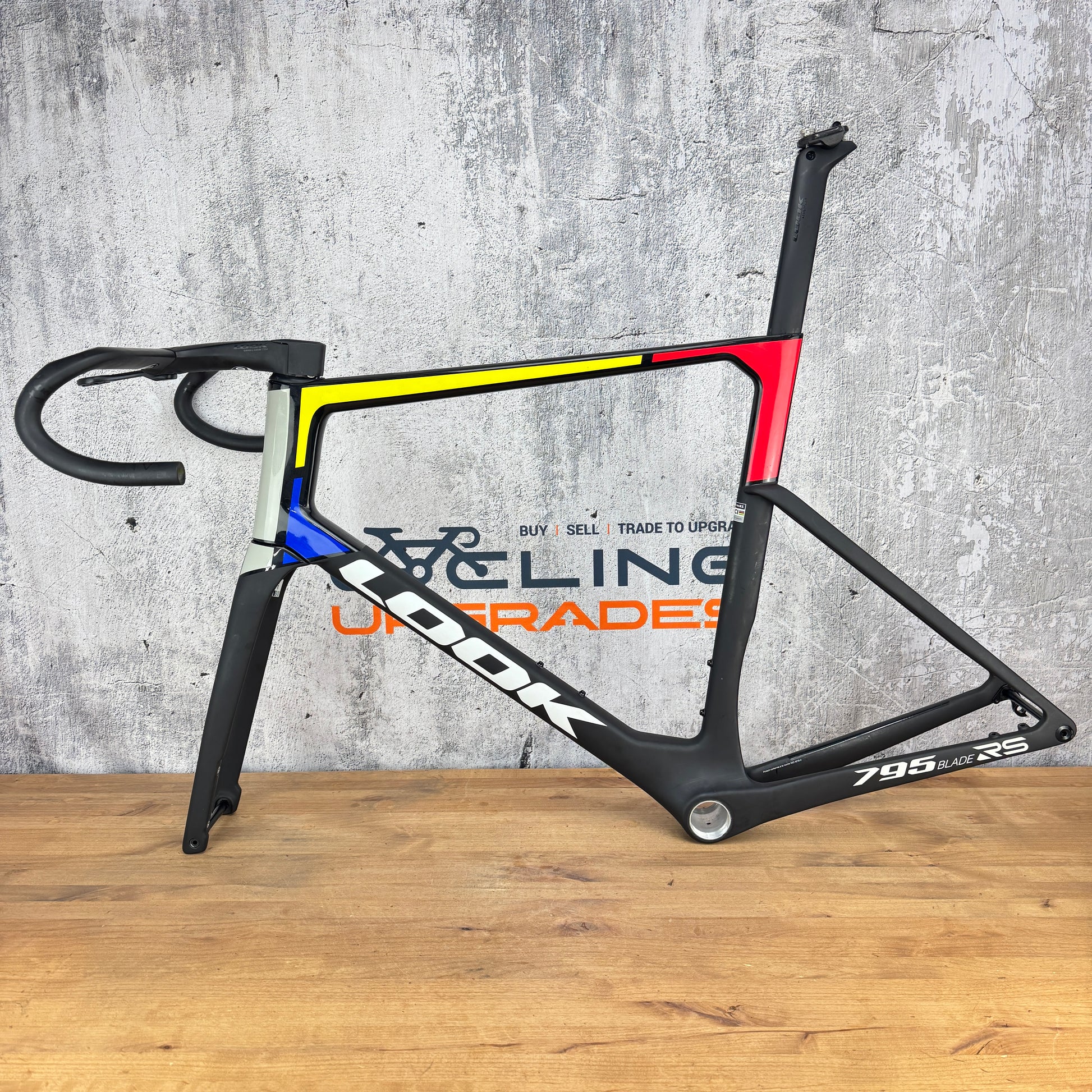

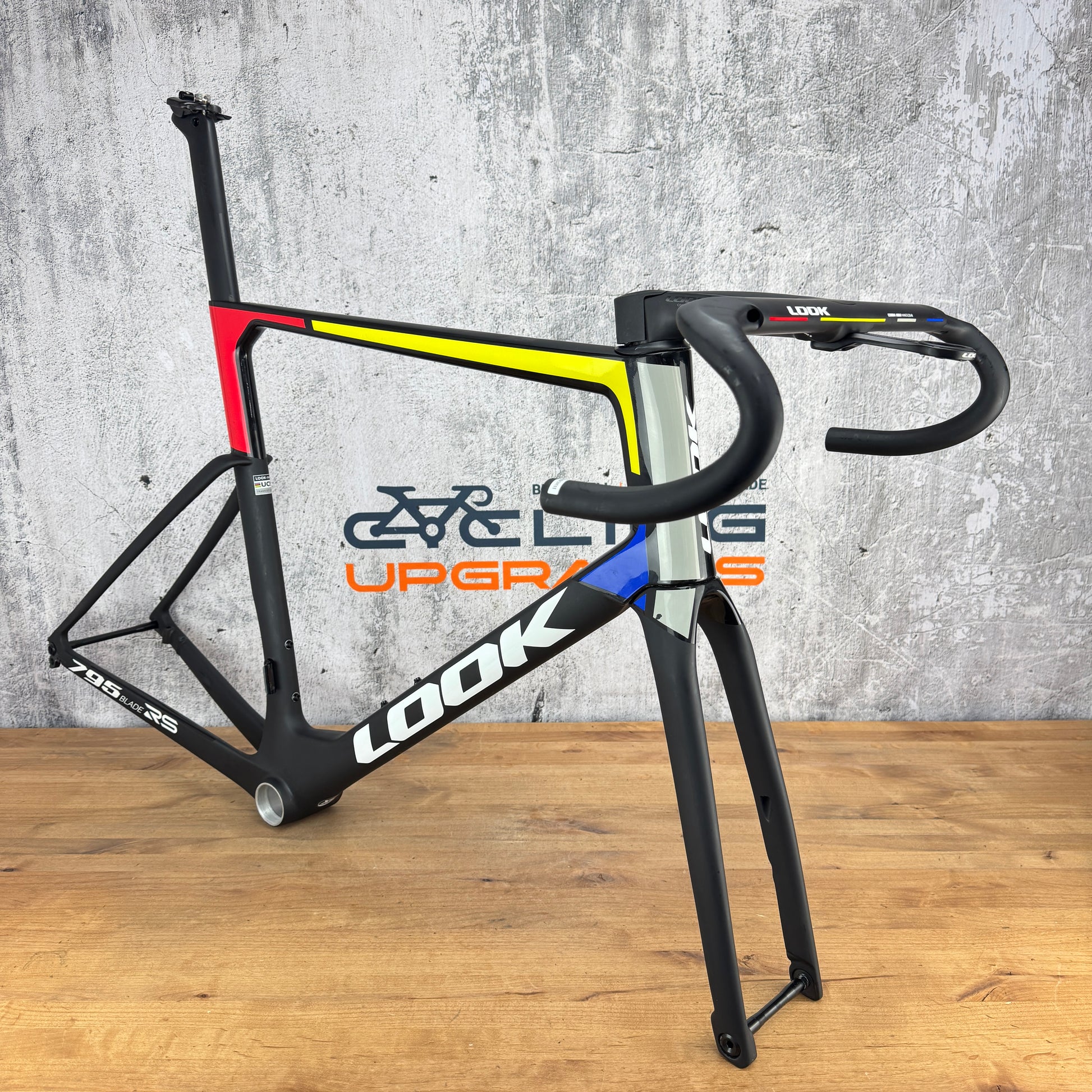

Frame: Look 795 Blade RS Disc Iconic Mondrian
Color: Iconic Mondrian
Brake Type: Flat-Mount disc brake

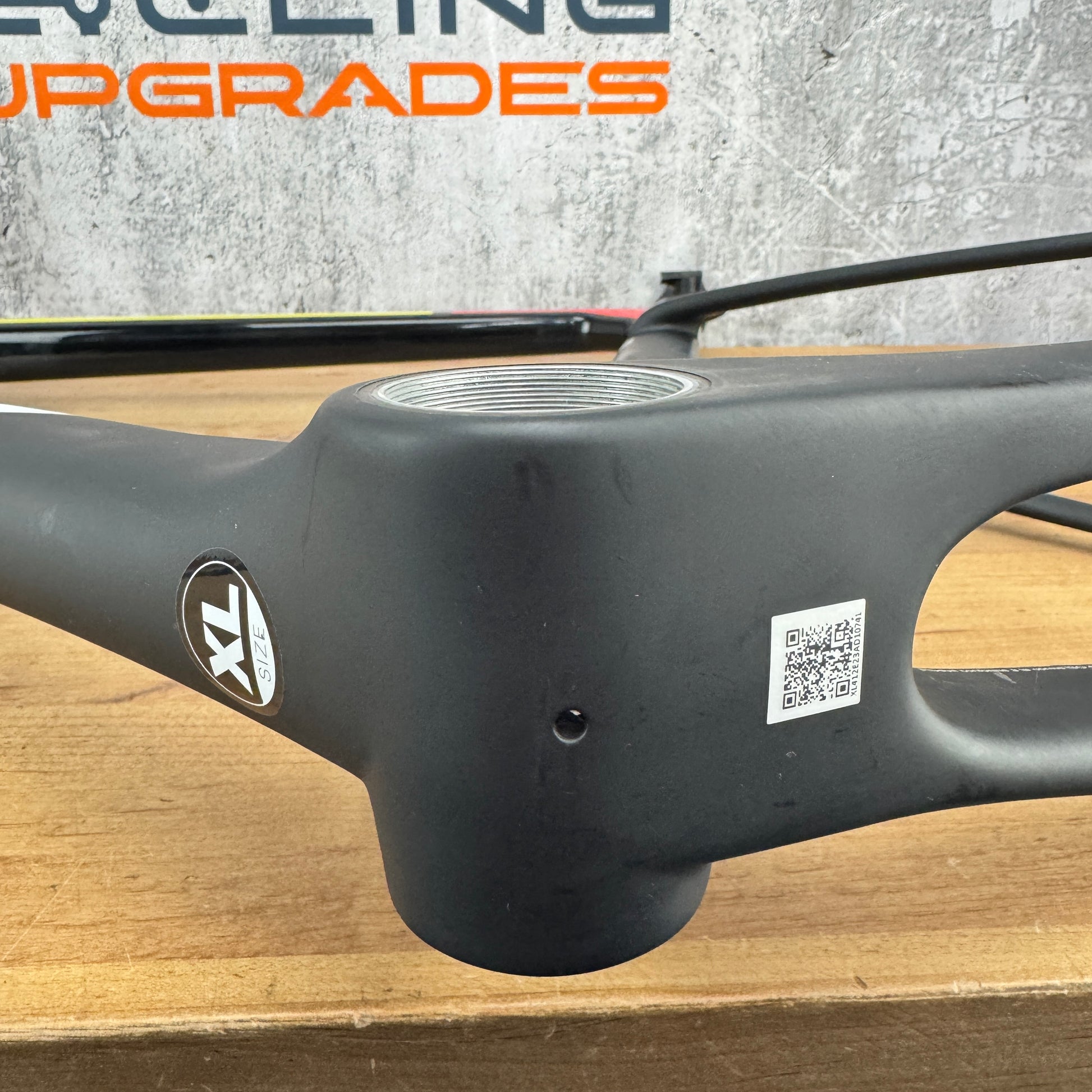

Size: XL. 576.7mm Effective Top Tube. Stack - 601mm. Reach - 410mm. Head Tube 189.5mm. Recommend buyer confirm and research full geometry online.

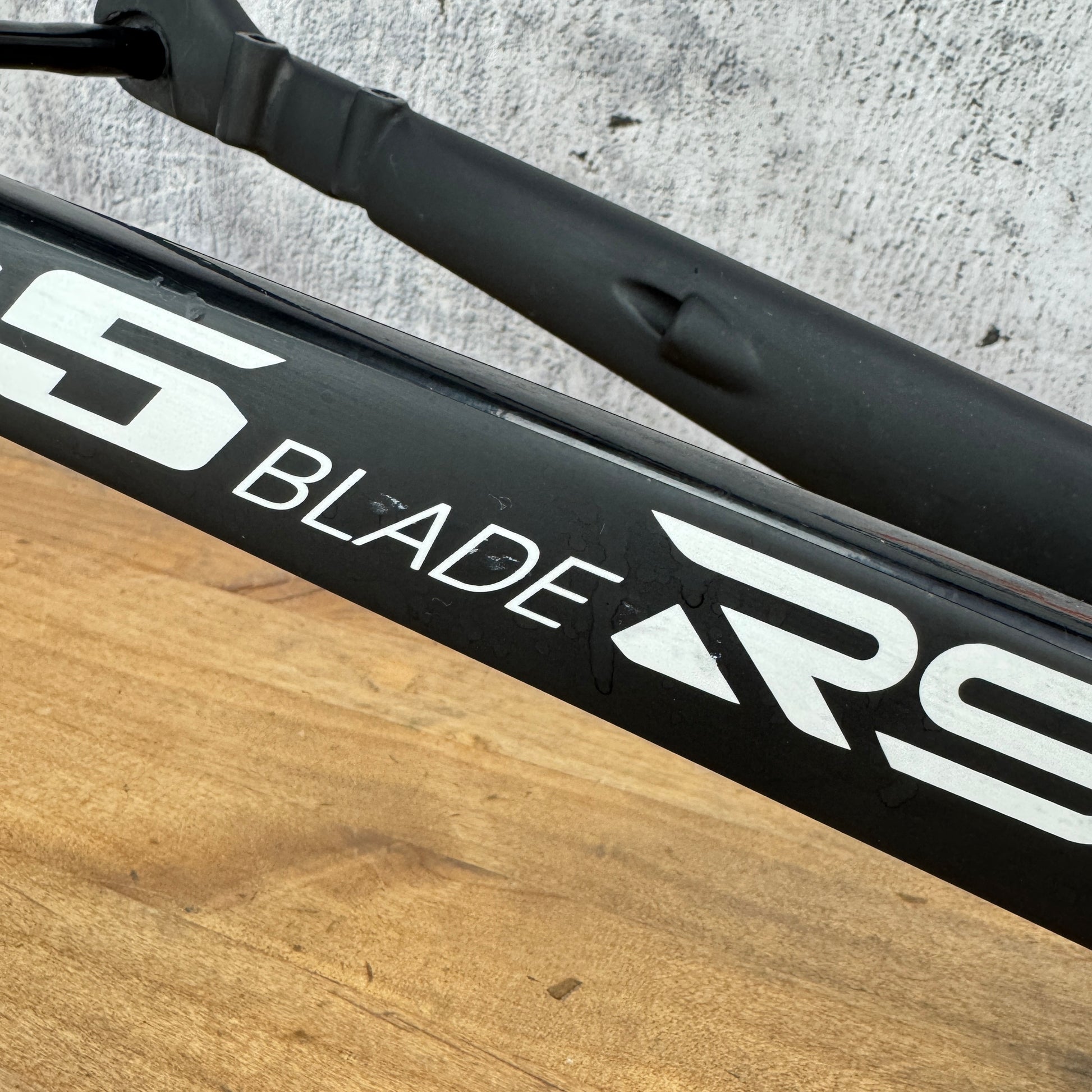

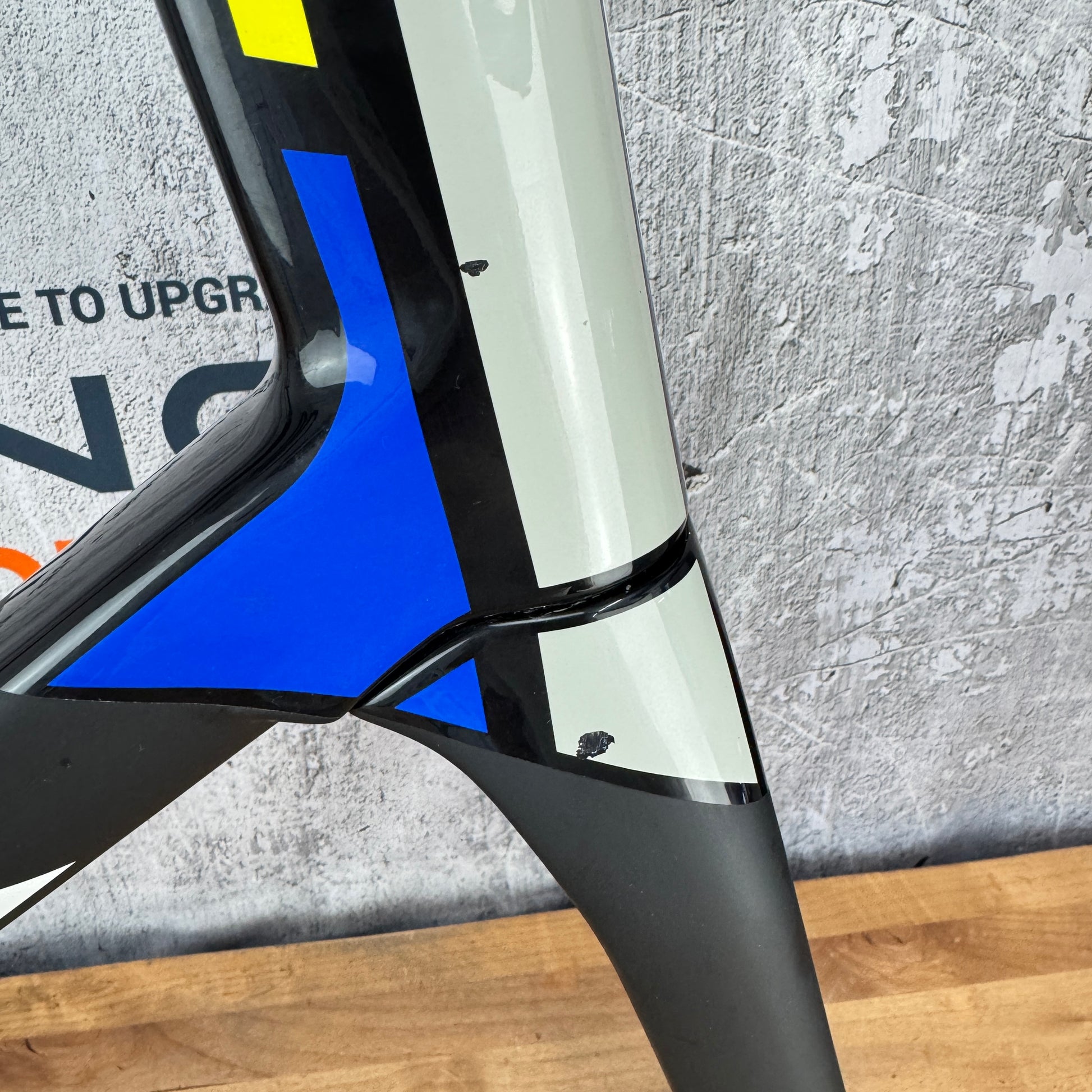

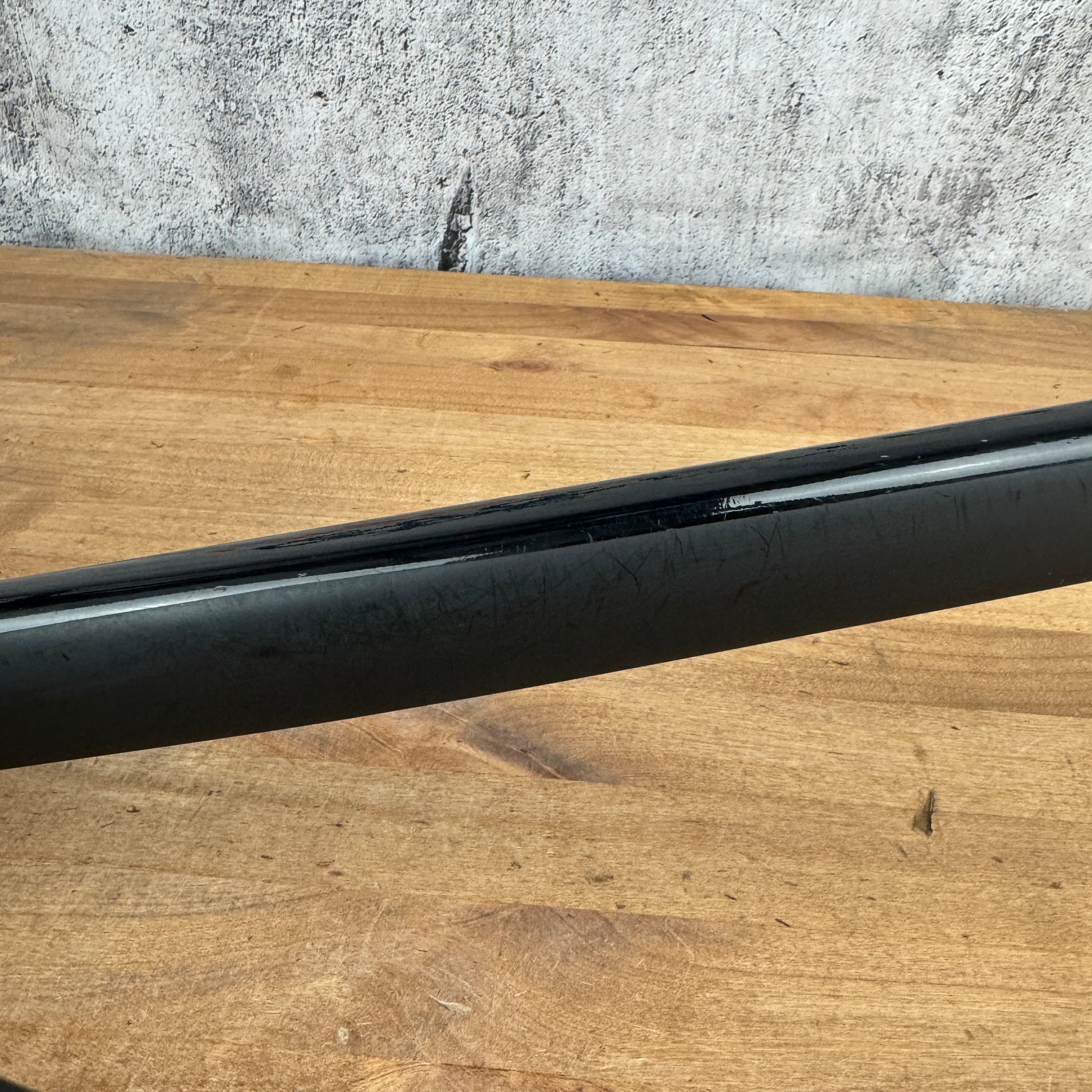

Condition: Per prior owner claims, this frame has less than 500 miles on it. No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: There are a couple of chips and marks in the finish on the head tube and fork, see pictures #13-14. Other light scratches and imperfections can be seen on the chain stays, see pictures #15-17. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset Compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with a Di2 groupset. Other frame/cable stops may be needed for eTap or EPS setups. This frame is not compatible with mechanical groupsets.

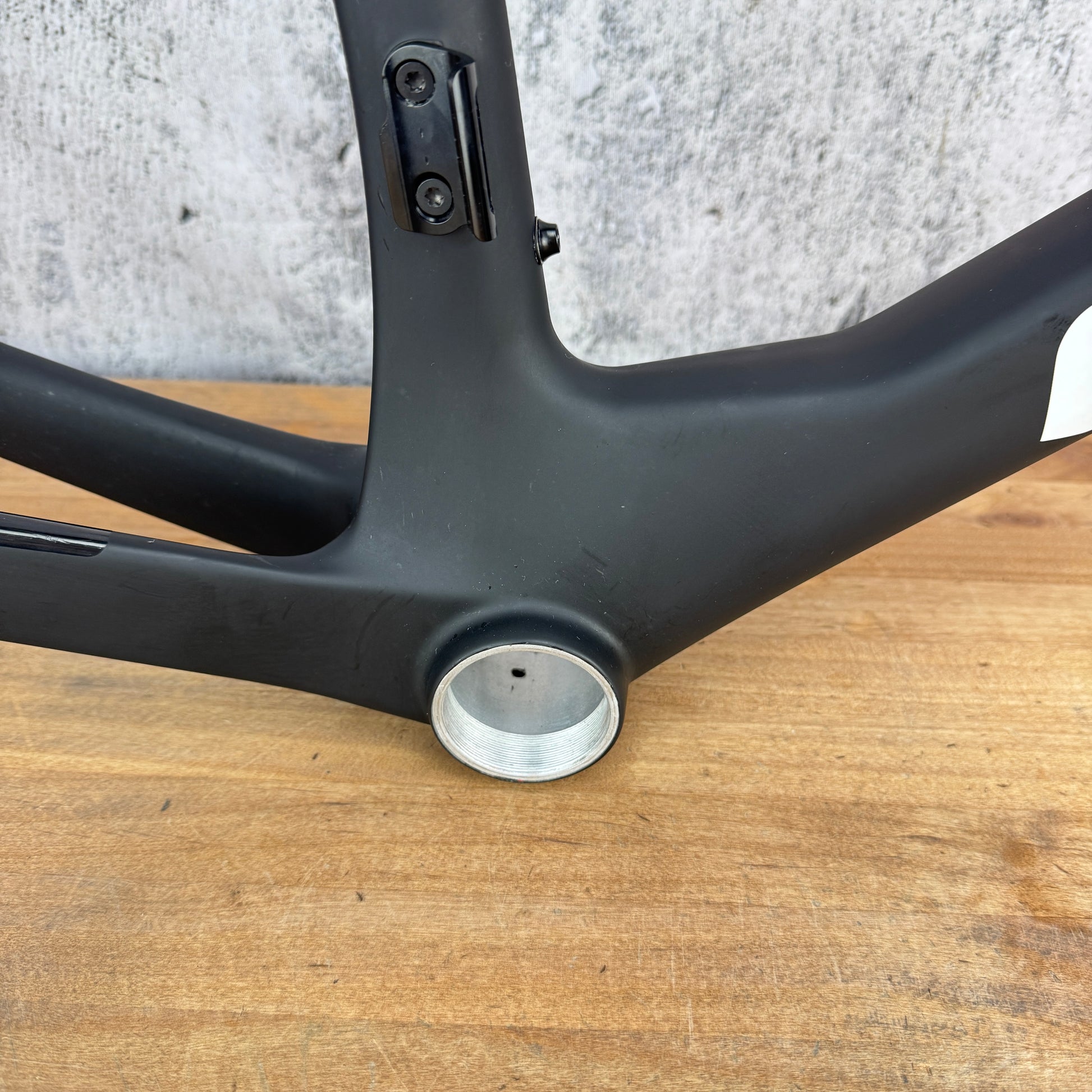

Bottom bracket: T47/86 bottom bracket shell type (Threaded bottom bracket 46mm diameter, 86mm width). No bottom bracket currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer Length: The steerer was cut for the handlebar to mount right above the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

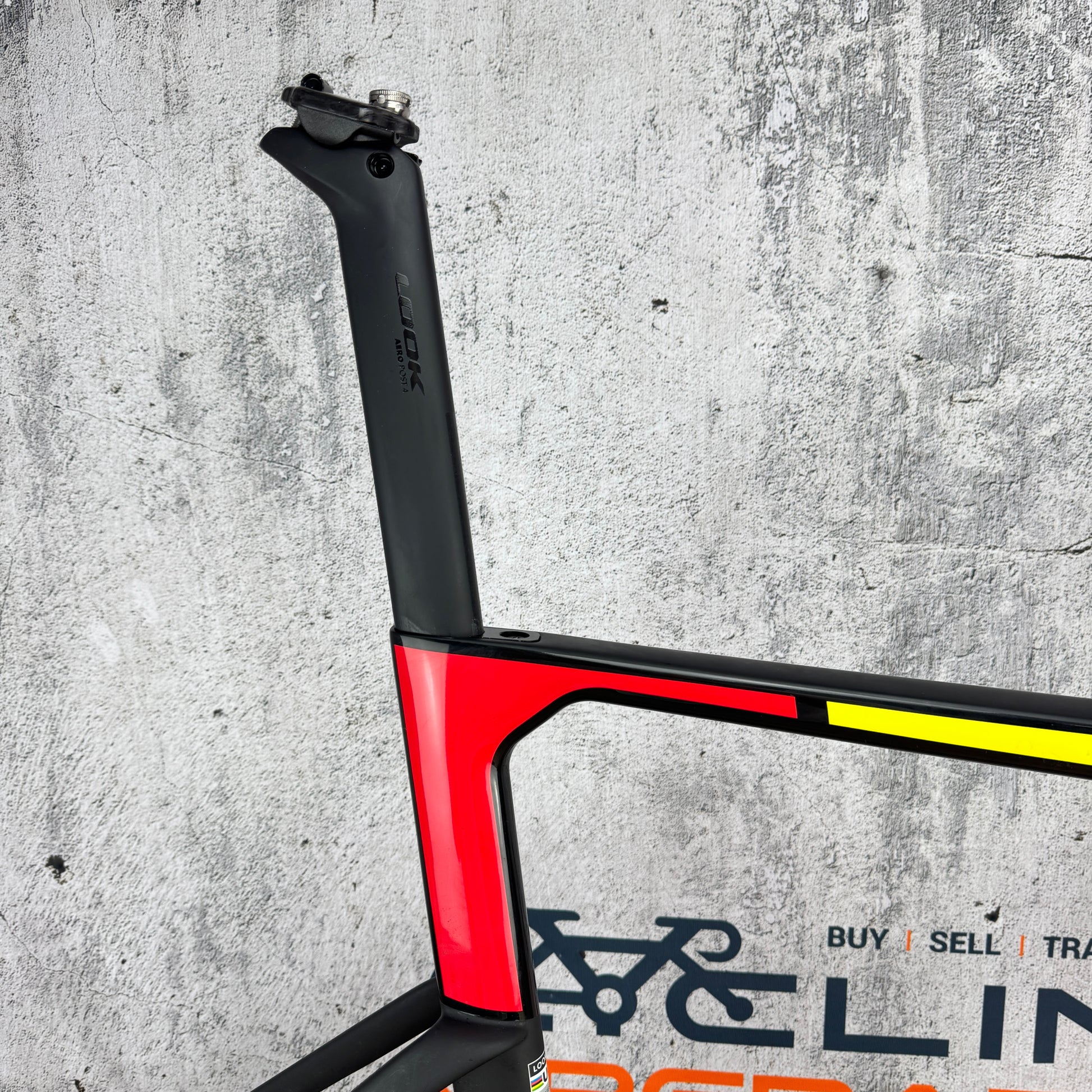

Seatpost: look 795 seatpost included. The seatpost is compatible with round or oval saddle rails.

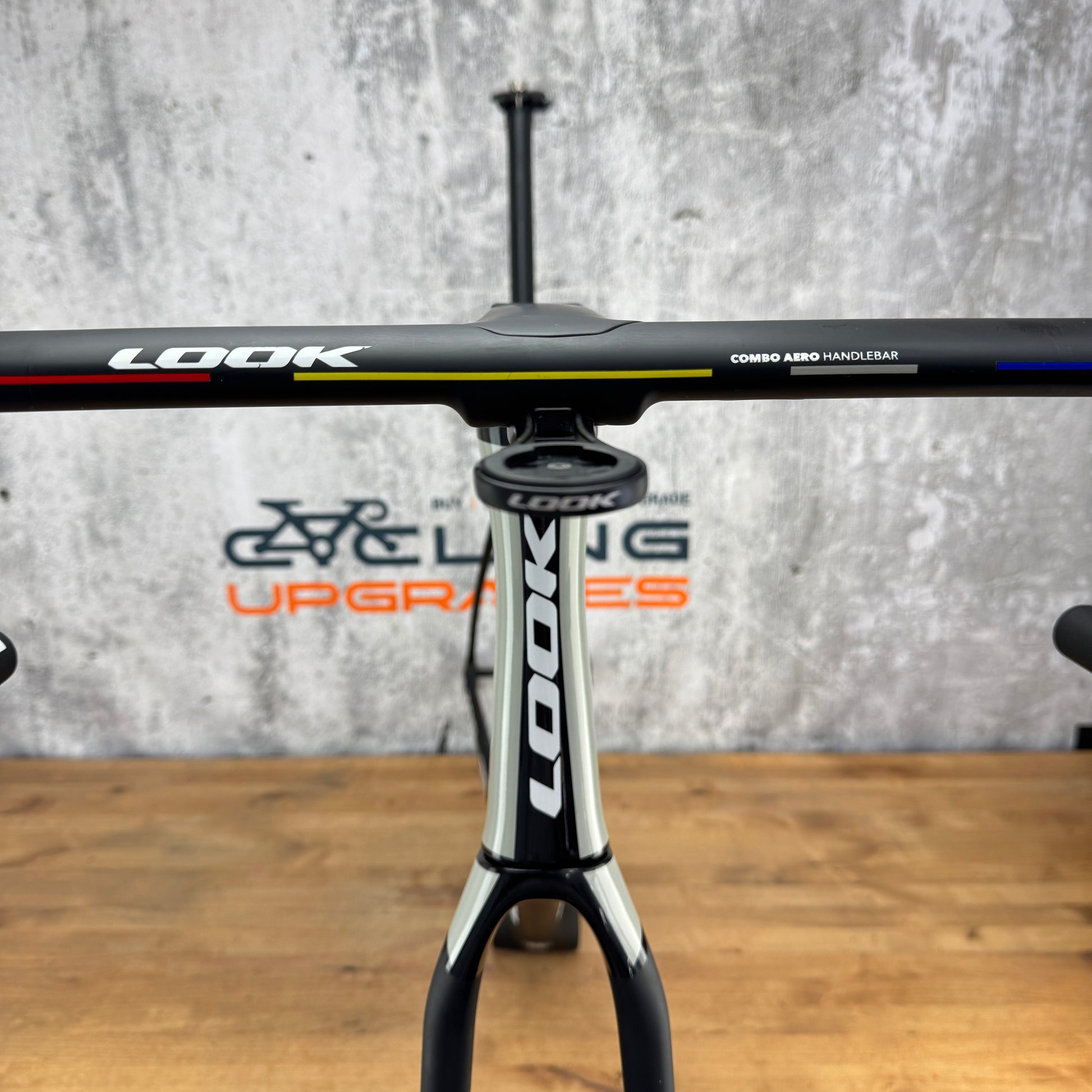

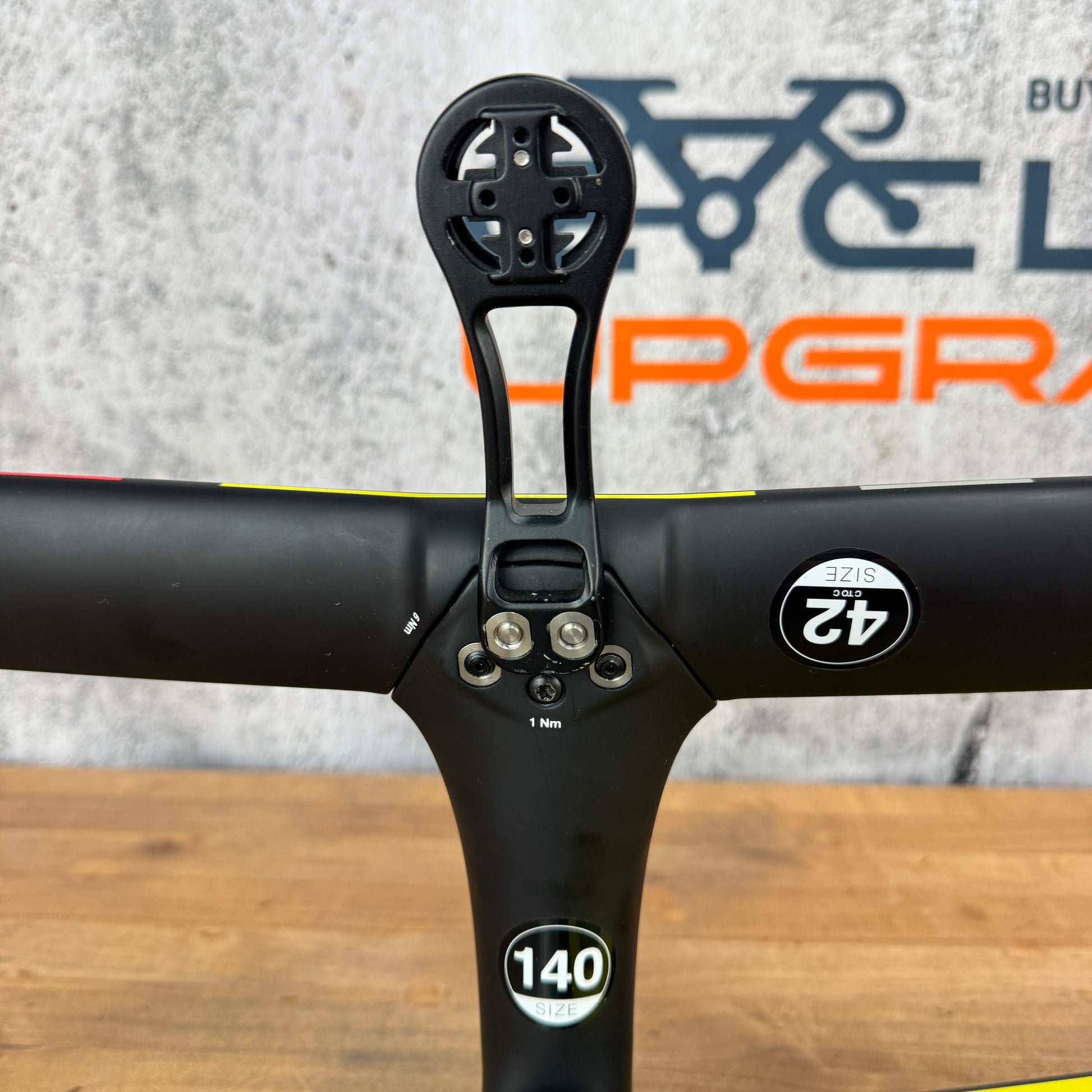

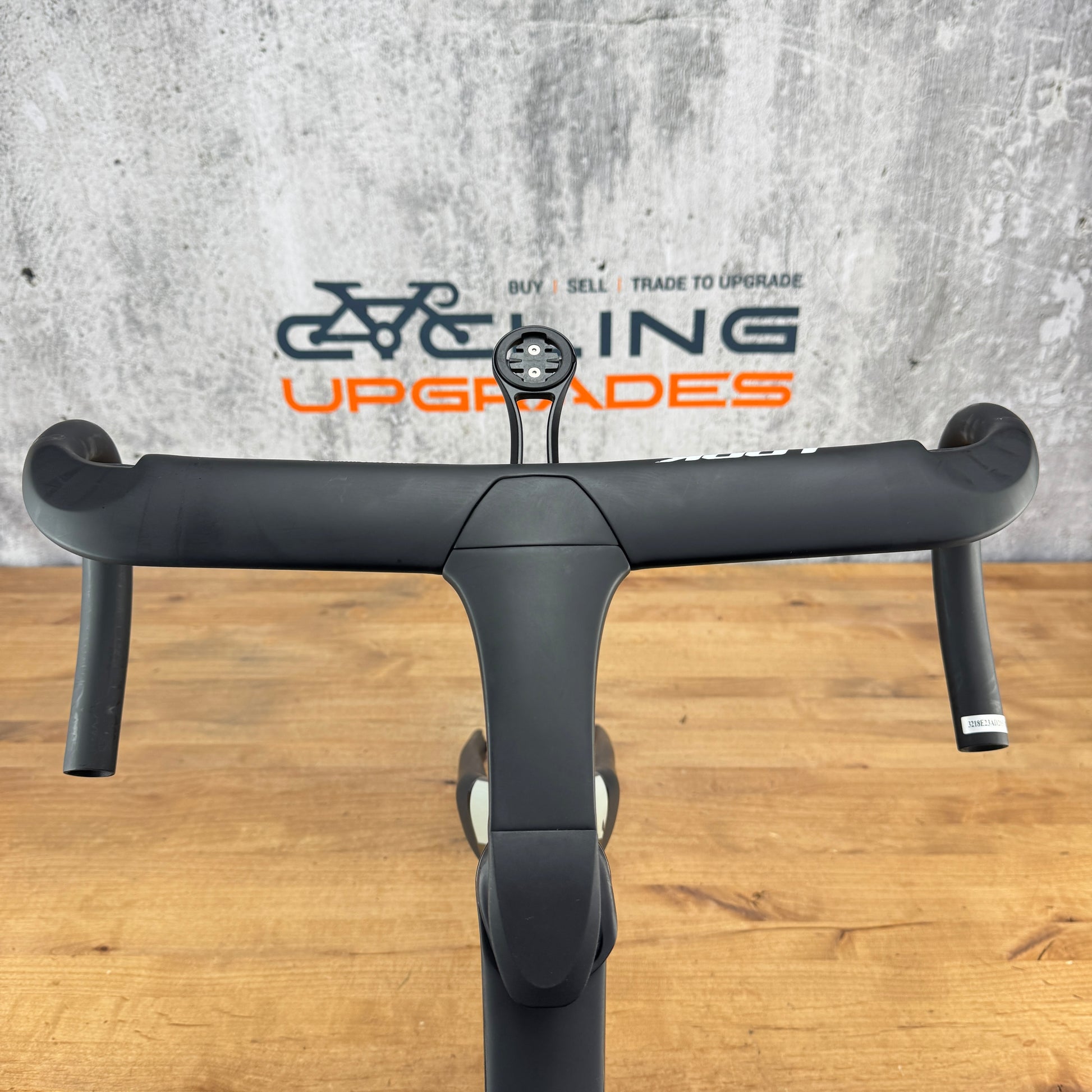

Handlebar: look Combo Aero 42cm Handlebar is included.

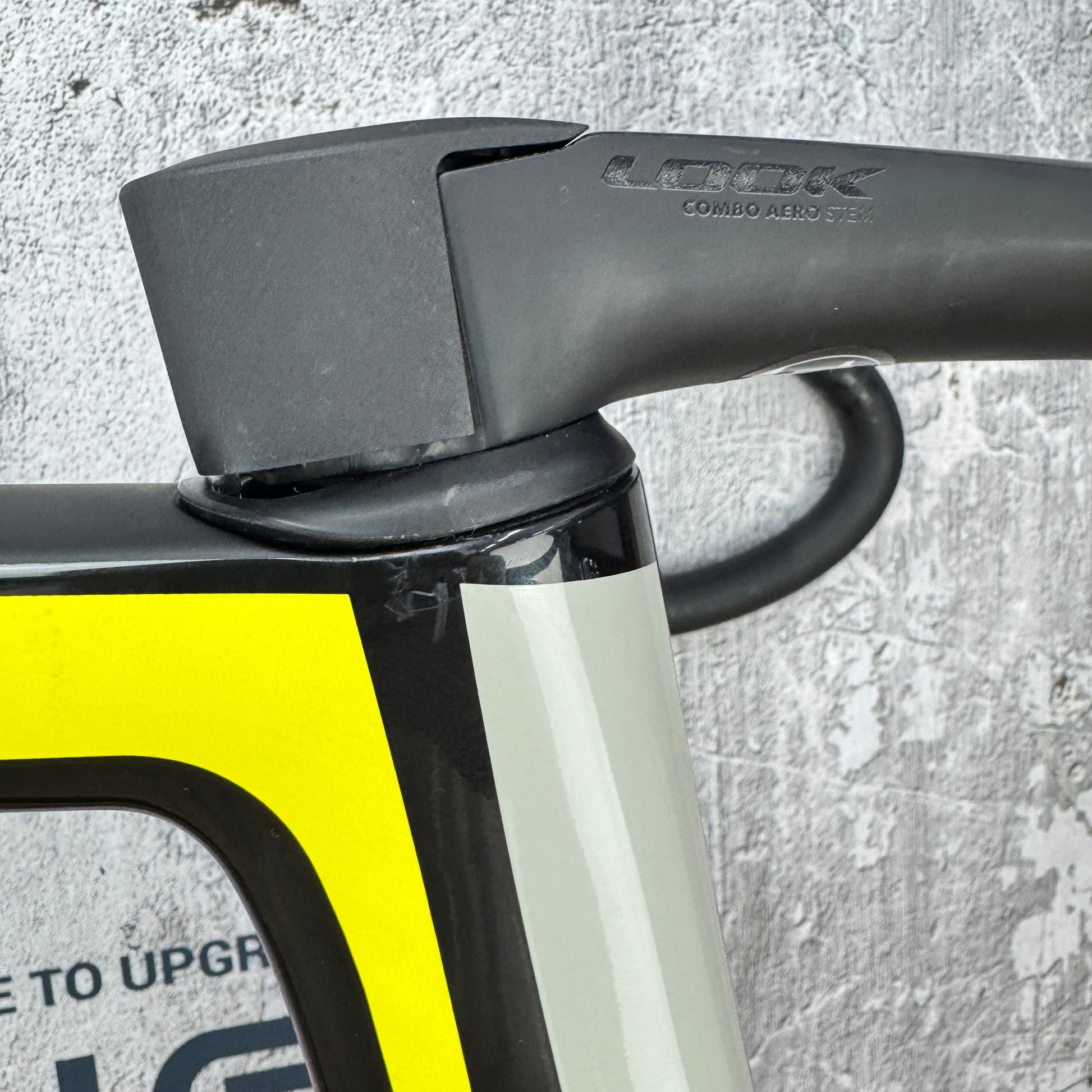

Stem: look Combo Aero 140mm stem is included.
Dropout Spacing: Front 12mm Thru Axle x 100mm, Rear 12mm Thru Axle x 142mm.
Weight: 2260 grams as pictured.

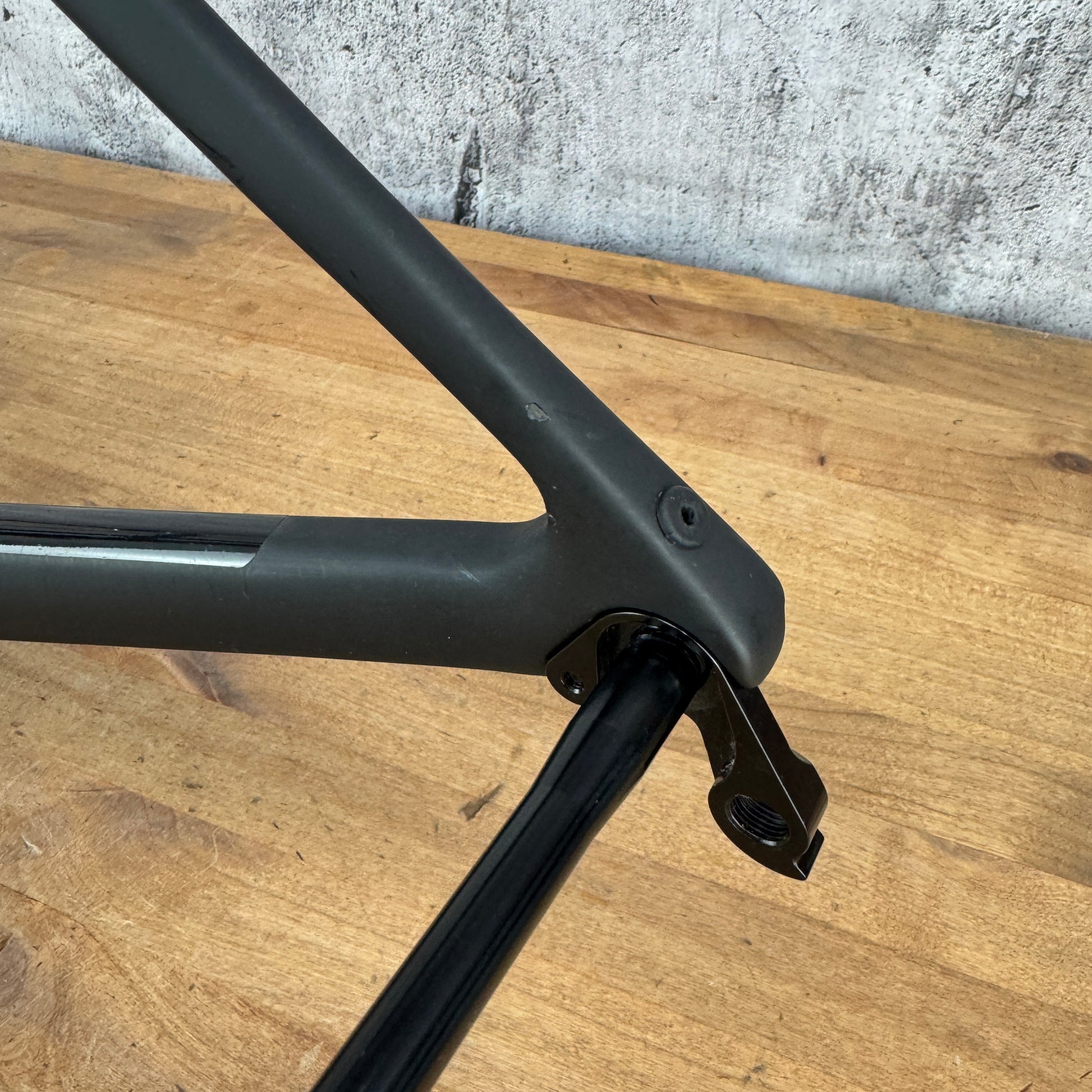

What's included: Frame, fork, headset, seatpost, handlebar, rear derailleur hanger, thru axles
