2010 Carrera Phibra 2 Medium (55cm TT) Rim Brake Carbon Frameset 700c 2110g

2010 Carrera Phibra 2 Medium (55cm TT) Rim Brake Carbon Frameset 700c 2110g

Regular price $543.00
$543.00 Regular price $795.00 Sale price
Sale Sold out
Condition: Used / Pre-owned

Item Specifics

  • Brand: Carrera
  • Bottom bracket shell type: BSA (English)
  • Brake type: Rim Brake
  • Color: Red/White
  • Frame size: M
  • Item weight: 2110g
  • Material: Carbon
  • Model: Phibra 2
  • Mount type: Center-Mount
  • Part type: Bicycle Frame
  • Steerer tube diameter: 1 1/8 in
  • Wheel size: 700C
  • We clean all parts before selling!
  • We test and inspect all parts!
  • We create detailed listings!
  • We package like professionals!
  • We ship quickly!
  • We accept 30-day returns!
View full details
Product Description

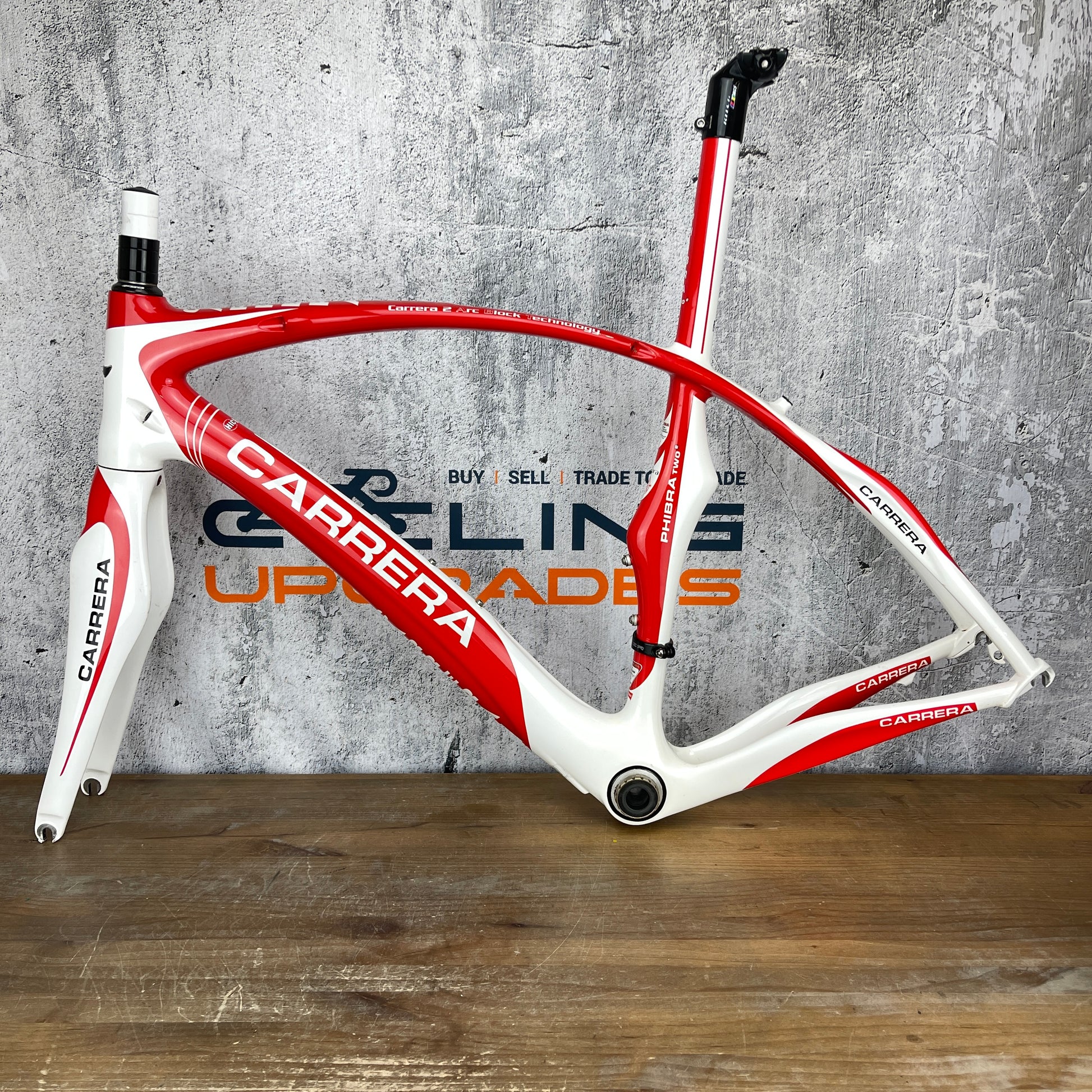

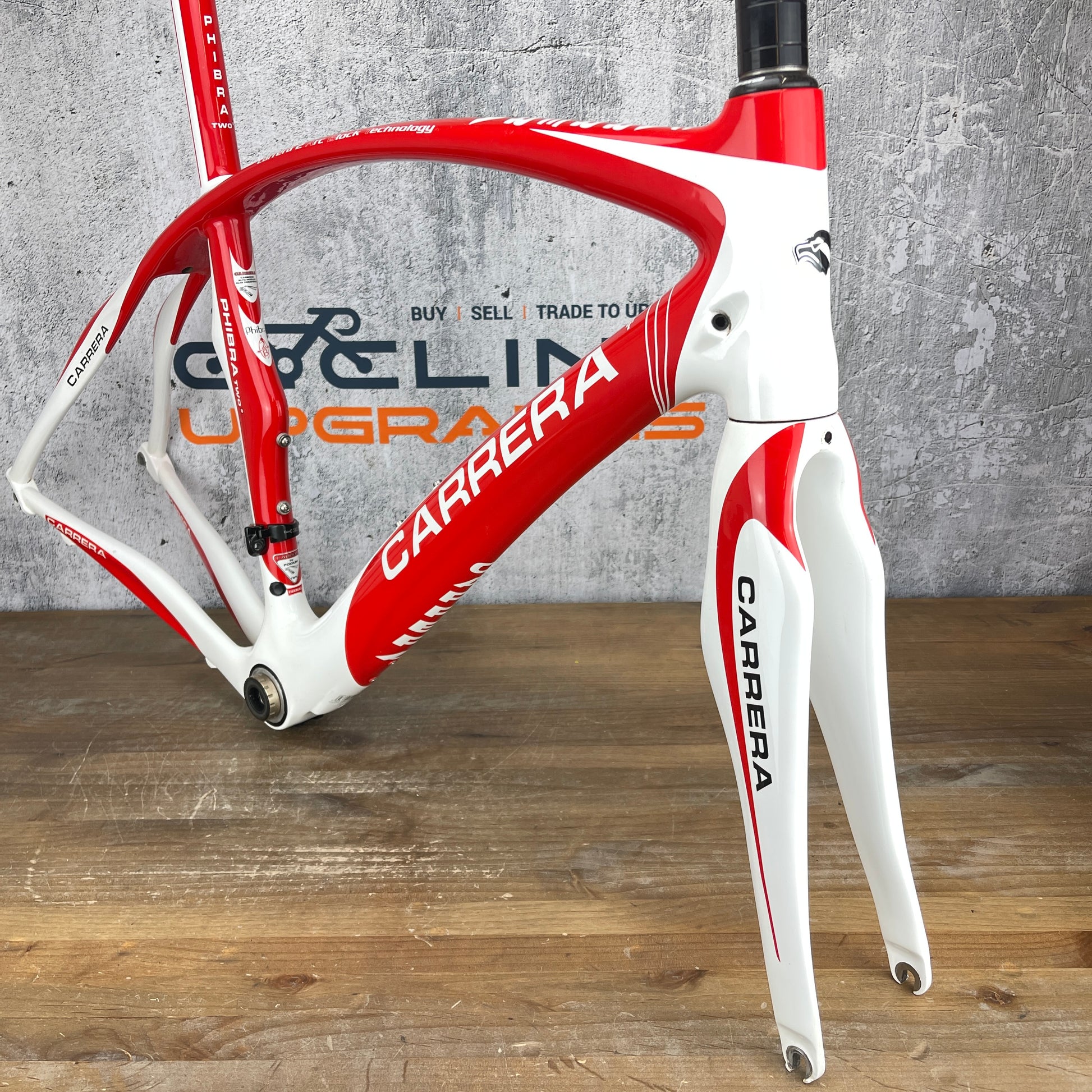

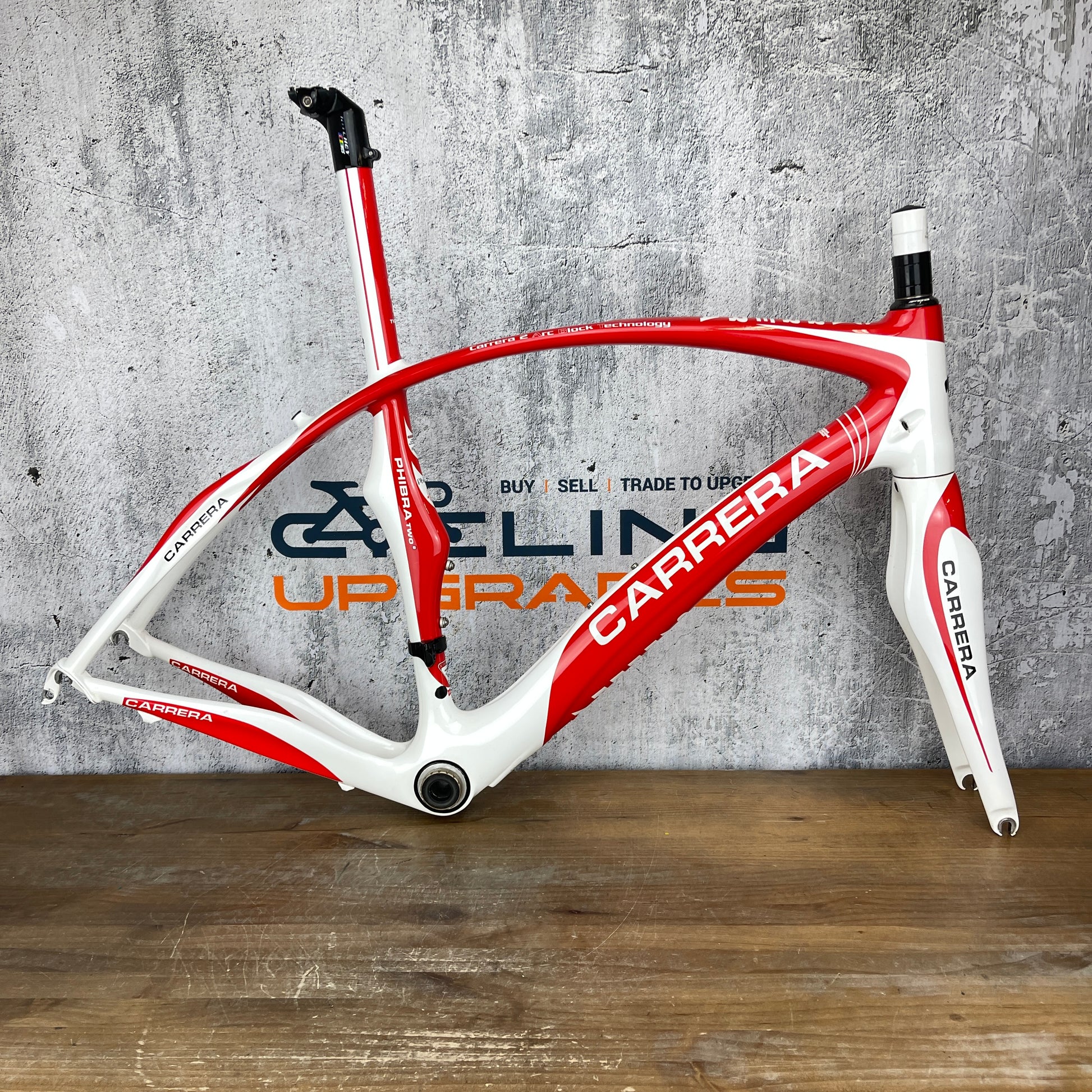

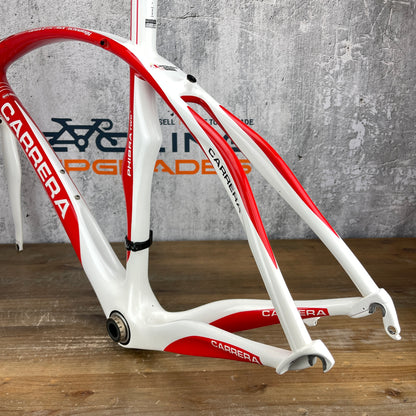

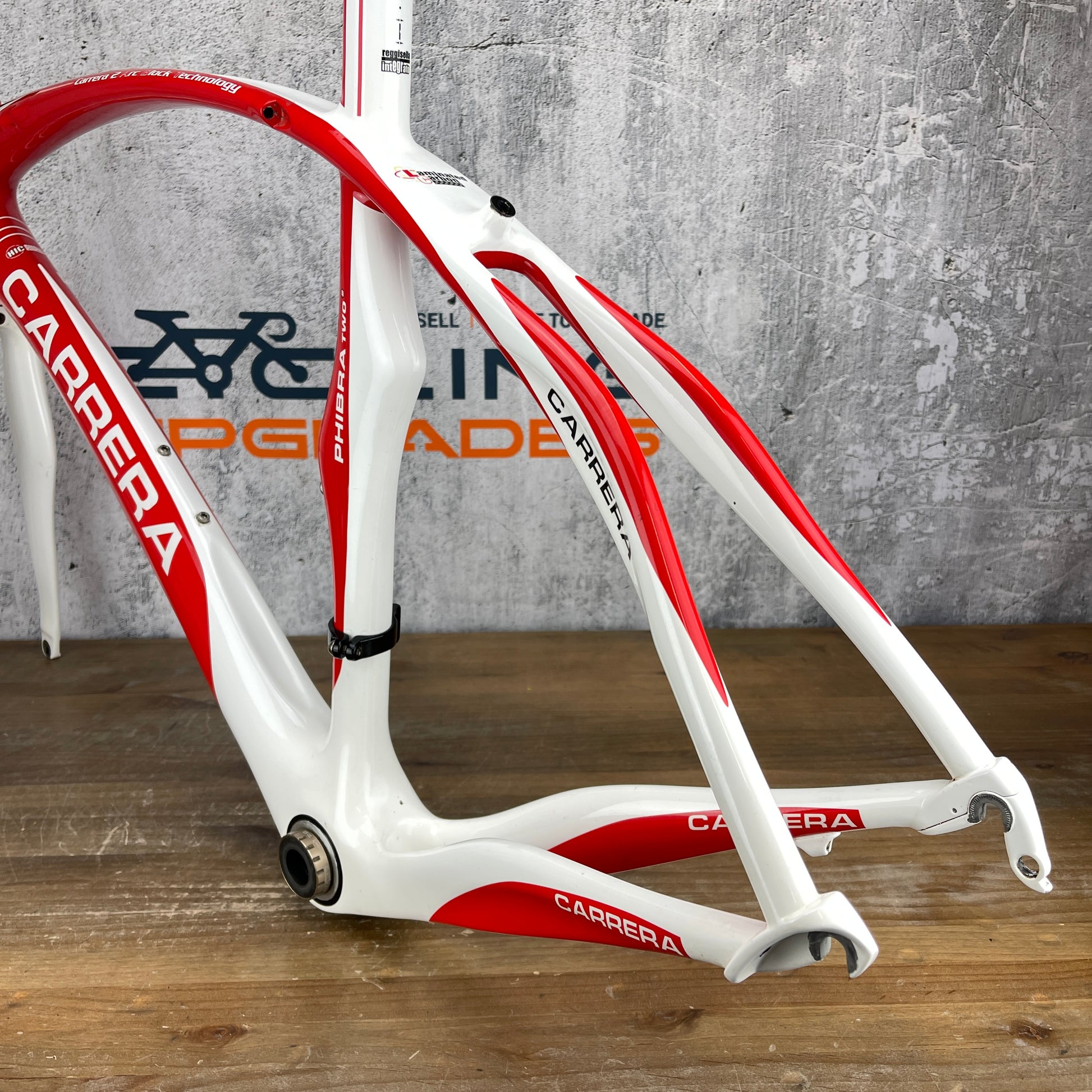

Frame: Carrera Phibra 2, prior owner estimates this frame is from approximately 2010.

Color: Red, and white.

Brake type: Center-Mount rim brake

Size: Medium. 555mm Effective Top Tube. Stack - 571mm. Reach - 391mm. Head tube 165mm. Recommend buyer confirm and research full geometry online.

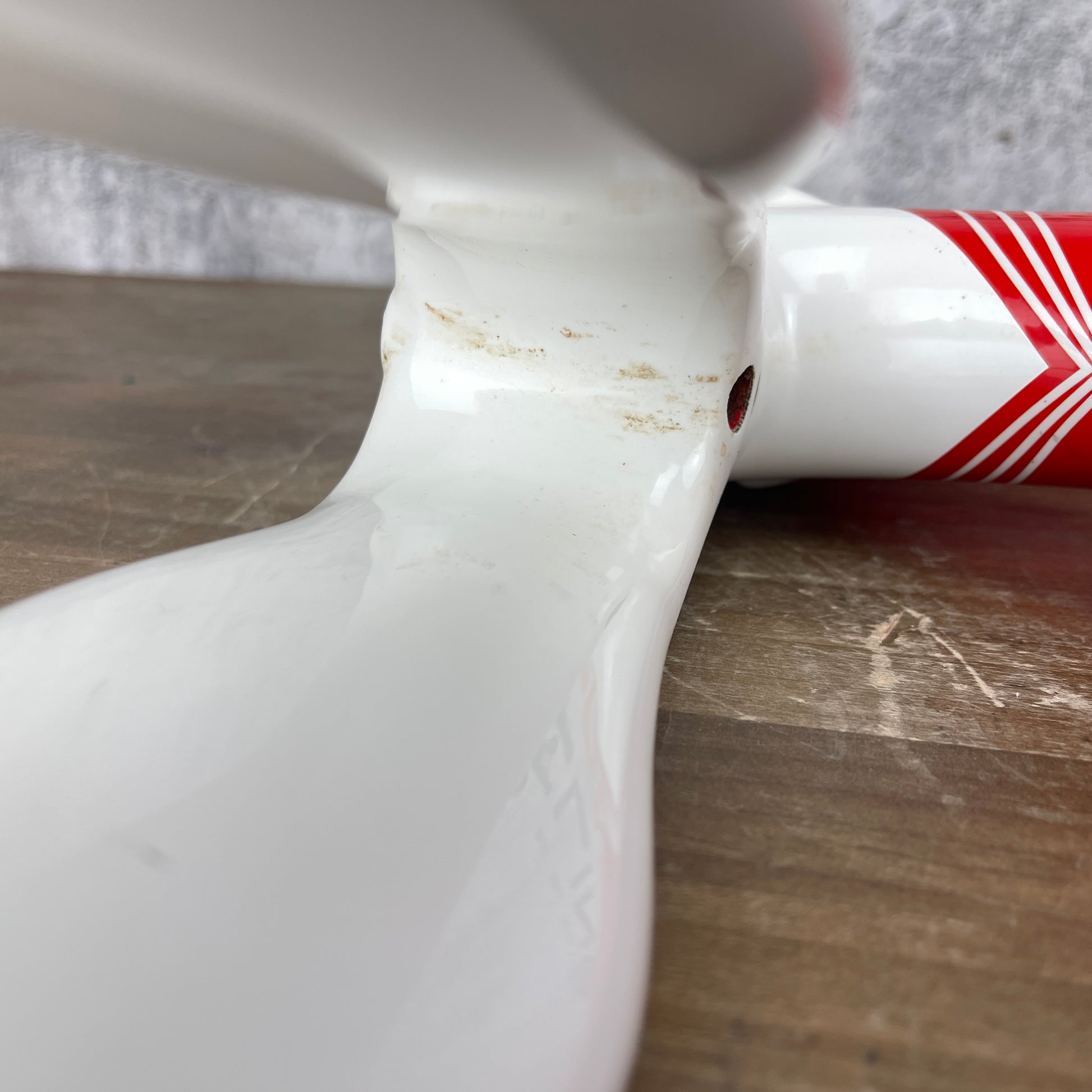

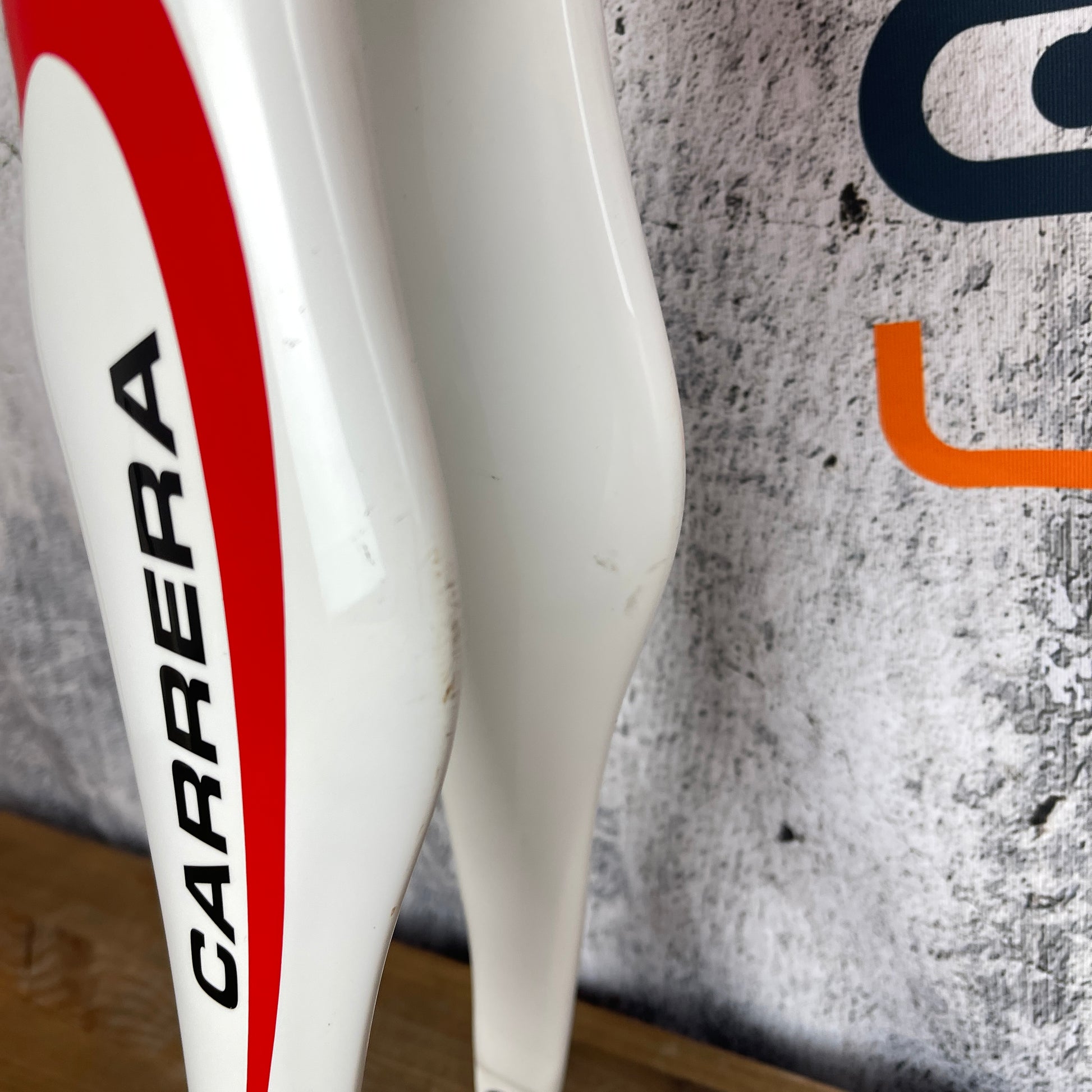

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some tire rub on the chainstays shown in pic #7, some rub wear on the seat tube, some scratches on the fork shown in pic#9. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups. Mechanical cable guide below the bottom bracket intact.

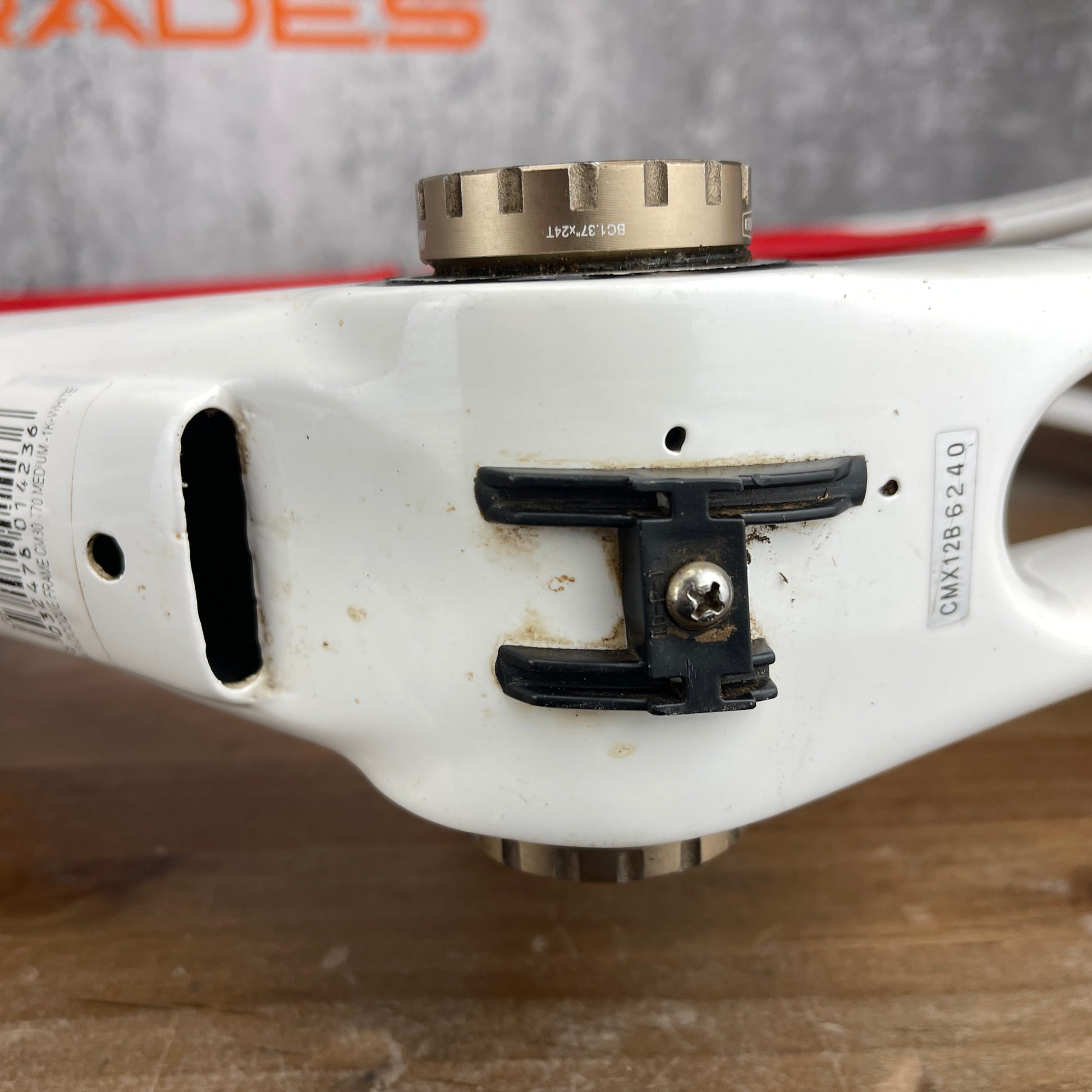

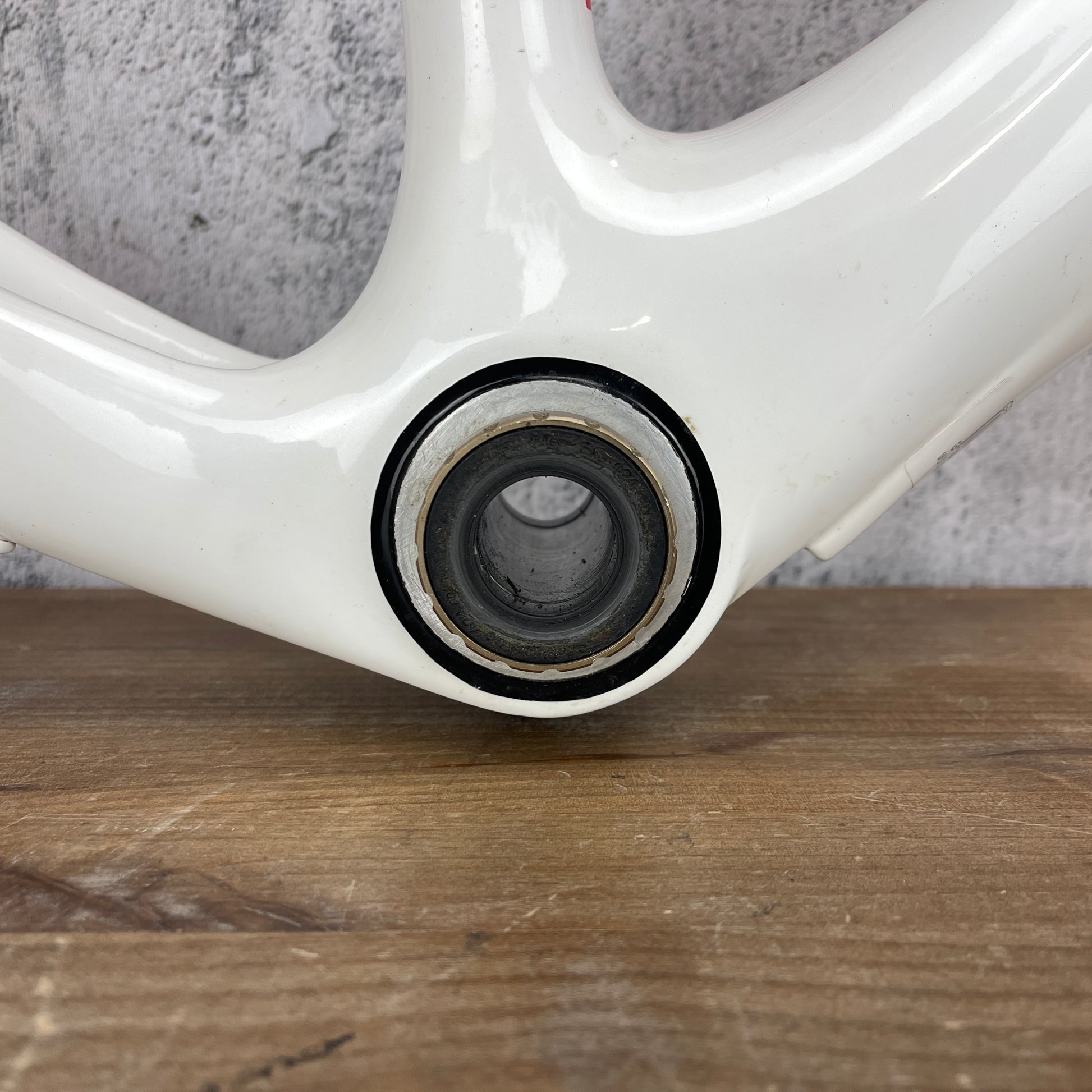

Bottom bracket: English threaded bottom bracket shell type. MegaExo bottom bracket for 24mm spindles is currently installed and included. Alternatively, we have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

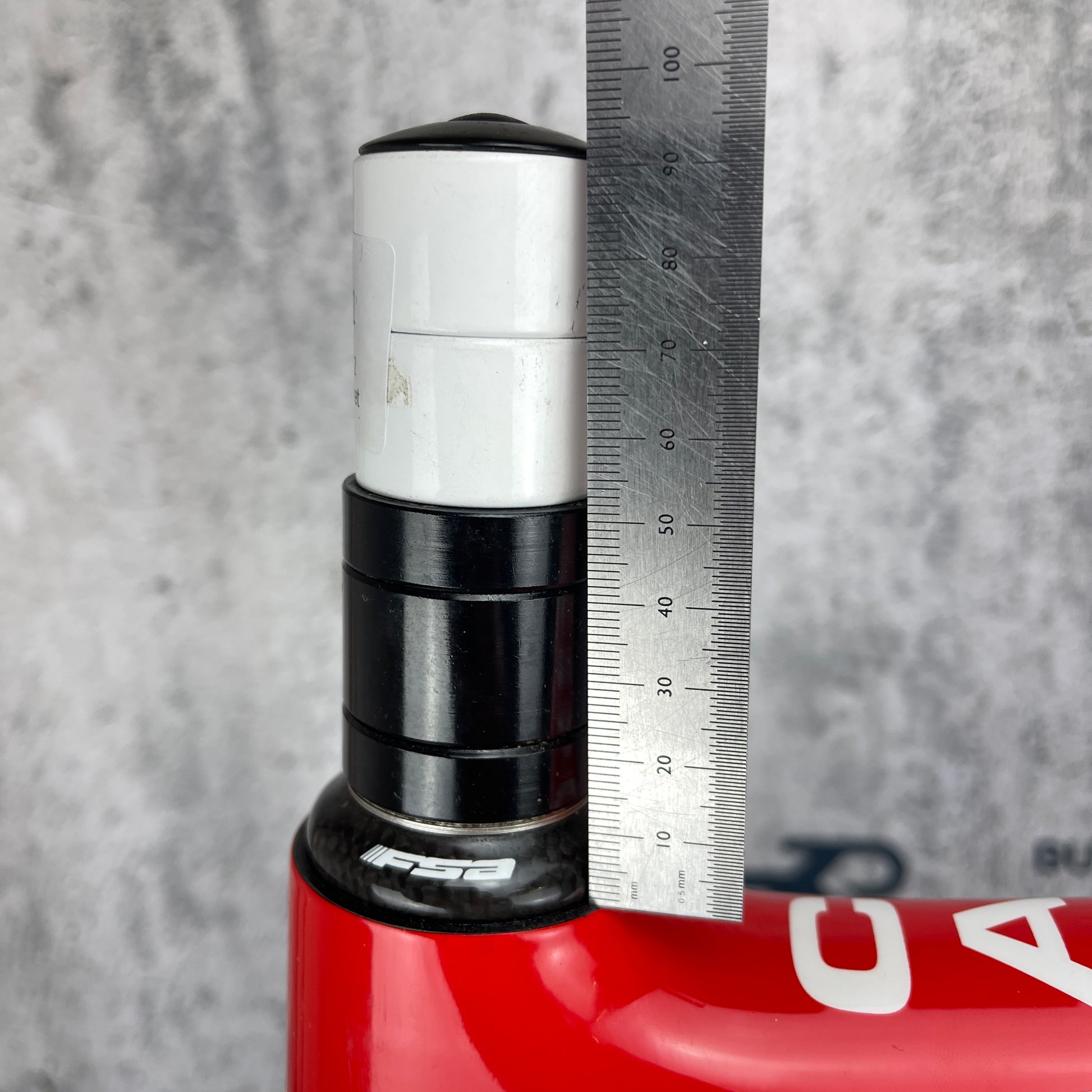

Steerer length: 90mm of steerer above the top tube. 40mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

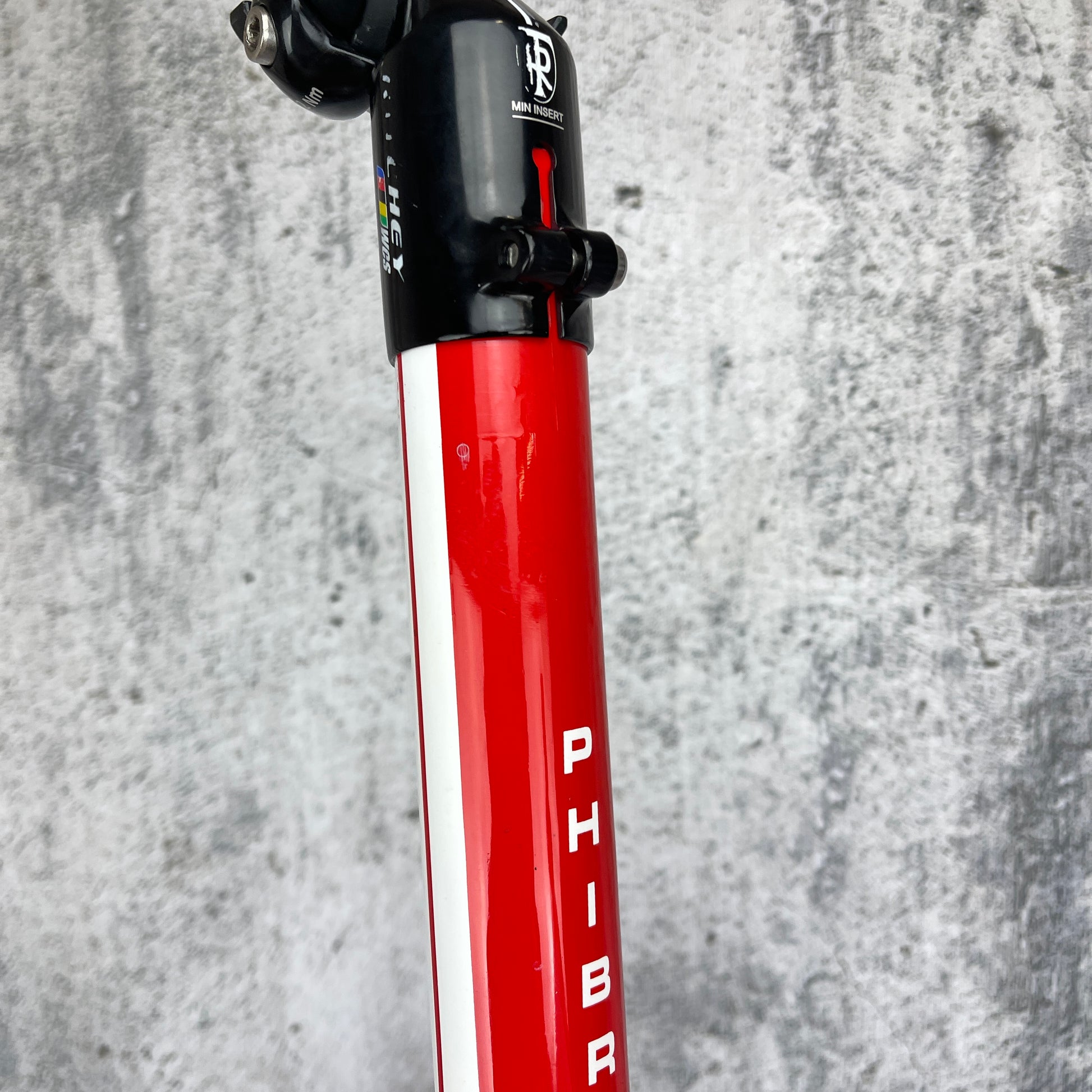

Seatpost: Ritchey seatmast cap included. Seatmast height is trimmed at 675mm from center of bottom bracket. The minimum height to saddle rails is 700mm, and the maximum height to the saddle rails is 715mm. Add your saddle stack height to determine max saddle height from center of bottom bracket.

Dropout Spacing: QR x 100mm front, QR x 130mm rear.

Weight: 2110 grams as pictured with headset, Bottom bracket, seatmast cap, frame hardware, etc.

What's included: Frame, fork, headset, rear derailleur hanger, seatmast cap, Bottom Bracket.
