2021 Orbea Oiz M-LTD OMX Large Disc Carbon MTB Frameset 29" w/ Fox SC 34 Fork

2021 Orbea Oiz M-LTD OMX Large Disc Carbon MTB Frameset 29" w/ Fox SC 34 Fork

Regular price $2,495.00
$2,495.00 Regular price Sale price
Sale Sold out
Condition: Used / Pre-owned

Item Specifics

  • Brand: Orbea
  • Bottom bracket shell type: BB92
  • Brake type: Disc Brake
  • Frame size: L
  • Item weight: 4080g
  • Material: Carbon
  • Model: Oiz M-LTD
  • Mount type: Post-Mount
  • Part type: Bicycle Frame
  • Steerer tube diameter: 1 1/8 in
  • Suggested use: Mountain
  • Wheel size: 29 in
  • We clean all parts before selling!
  • We test and inspect all parts!
  • We create detailed listings!
  • We package like professionals!
  • We ship quickly!
  • We accept 30-day returns!
View full details
Product Description

Frame: 2021 Orbea Oiz LTD, OMX series carbon, Carbon fiberlink to the rear triangle, this was Orbea's highest end frame for this year.

Fork: 2021 Fox Performance Series Step Cast 34 Float 29". 44mm Rake. Kashima coated. 120mm Travel. FIT4 damper. Includes Squidlock remote dual lockout. Can deduct $500 without the fork.

Shock: Fox Factory Series Float DPS EVol Kashima coated. ID D3Q4.

Color: Gray, and red

Brake type: Post-Mount disc brake.

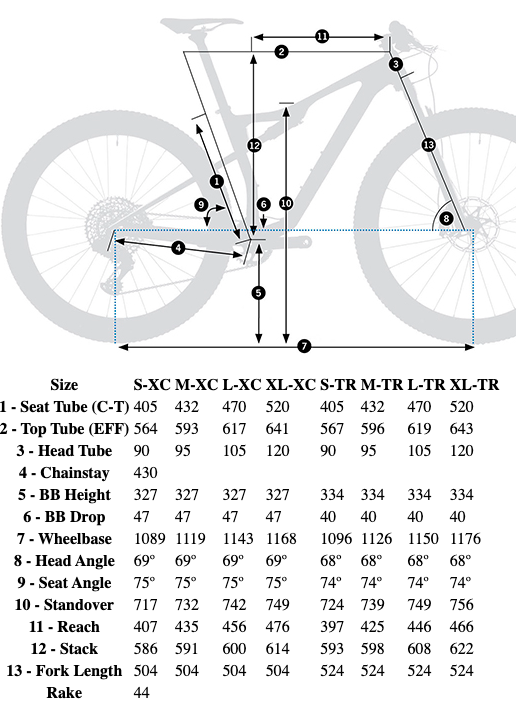

Size: Large. 617mm Effective Top Tube. Stack - 600mm. Reach - 456mm. Head tube 105mm. Recommend buyer confirm and research full geometry online.

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: A scratch near the bottom bracket on the drive side shown in pic #5, and some scratches on the chainstays shown in pics #6-8, and some light scratches on the seatstay shown in pic #9. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for Di2, EPS, eTap, or mechanical groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or mechanical setups.

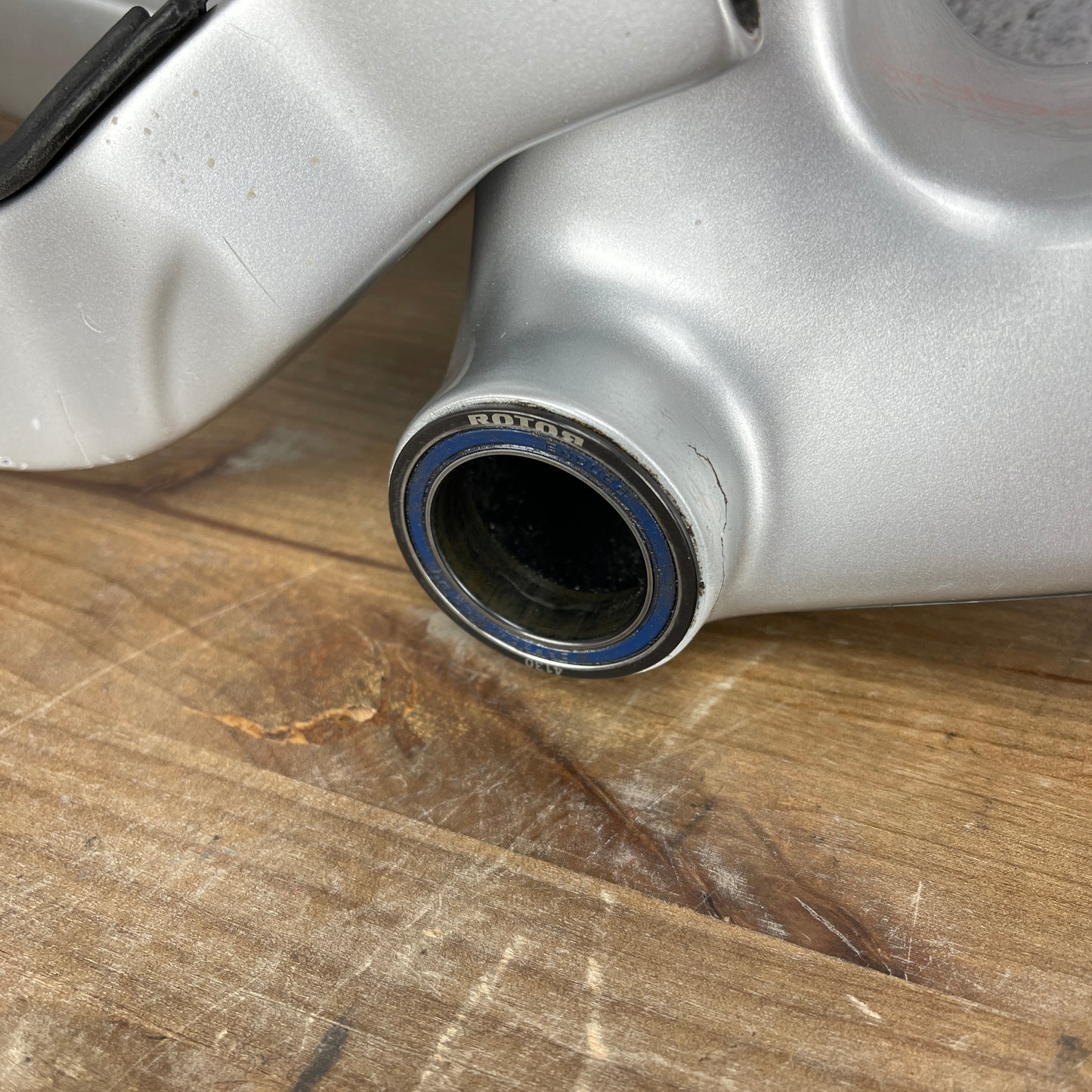

Bottom bracket: BB92 bottom bracket shell type (41mm shell diameter, 92mm shell width). Bottom bracket for 30mm spindles currently installed and included. Alternatively, we have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

Steerer length: 48mm of steerer above the top tube. No spacers below the stem plus the headset cover.

Seatpost: 31.6mm diameter. No seatpost included.

Dropout Spacing: 15mm thru axle x 110mm front, 12mm thru axle x 148mm rear

Weight: 4080 grams as pictured with headset, bottom bracket, frame hardware, fork, etc.

What's included: Frame, fork, headset, rear derailleur hanger, bottom bracket
