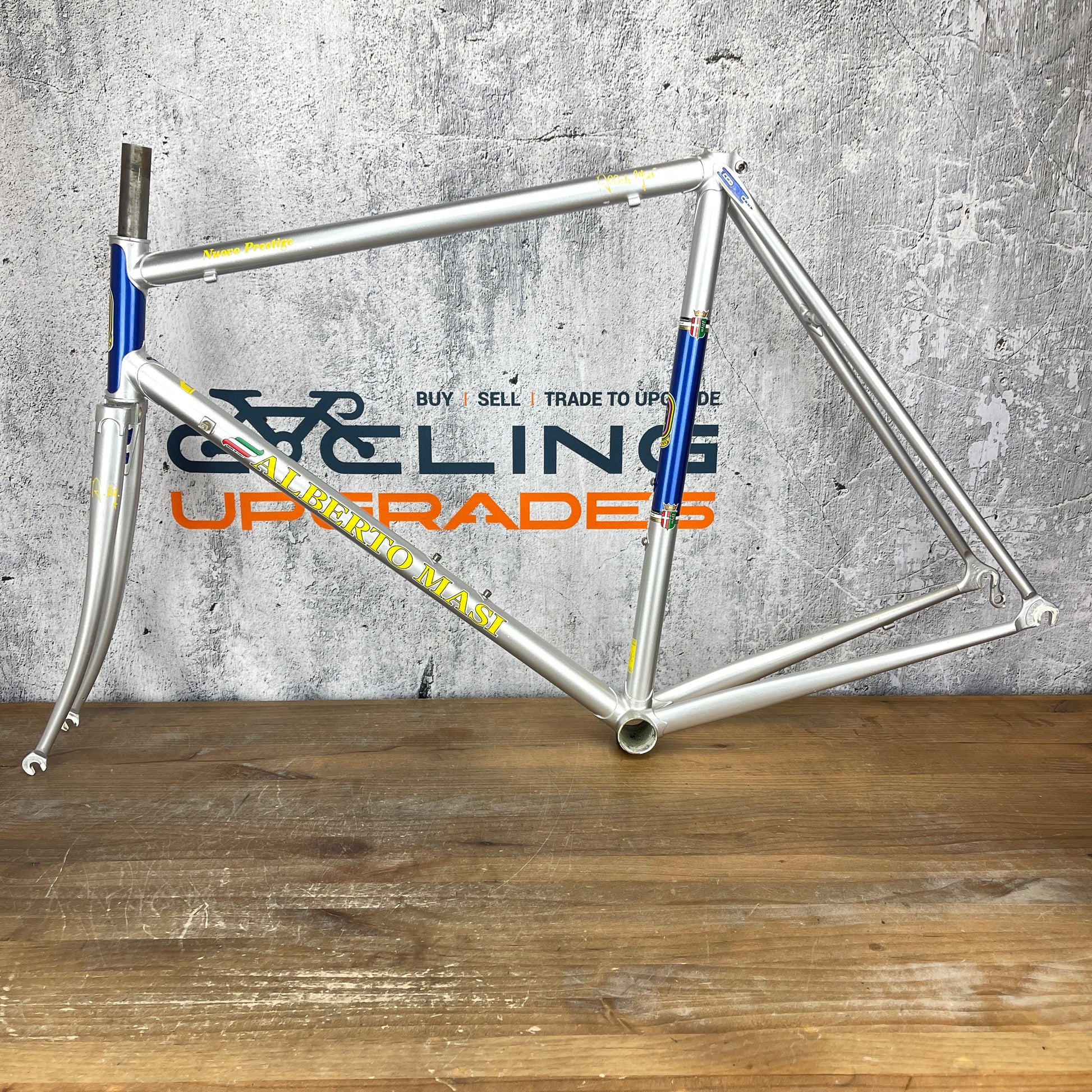

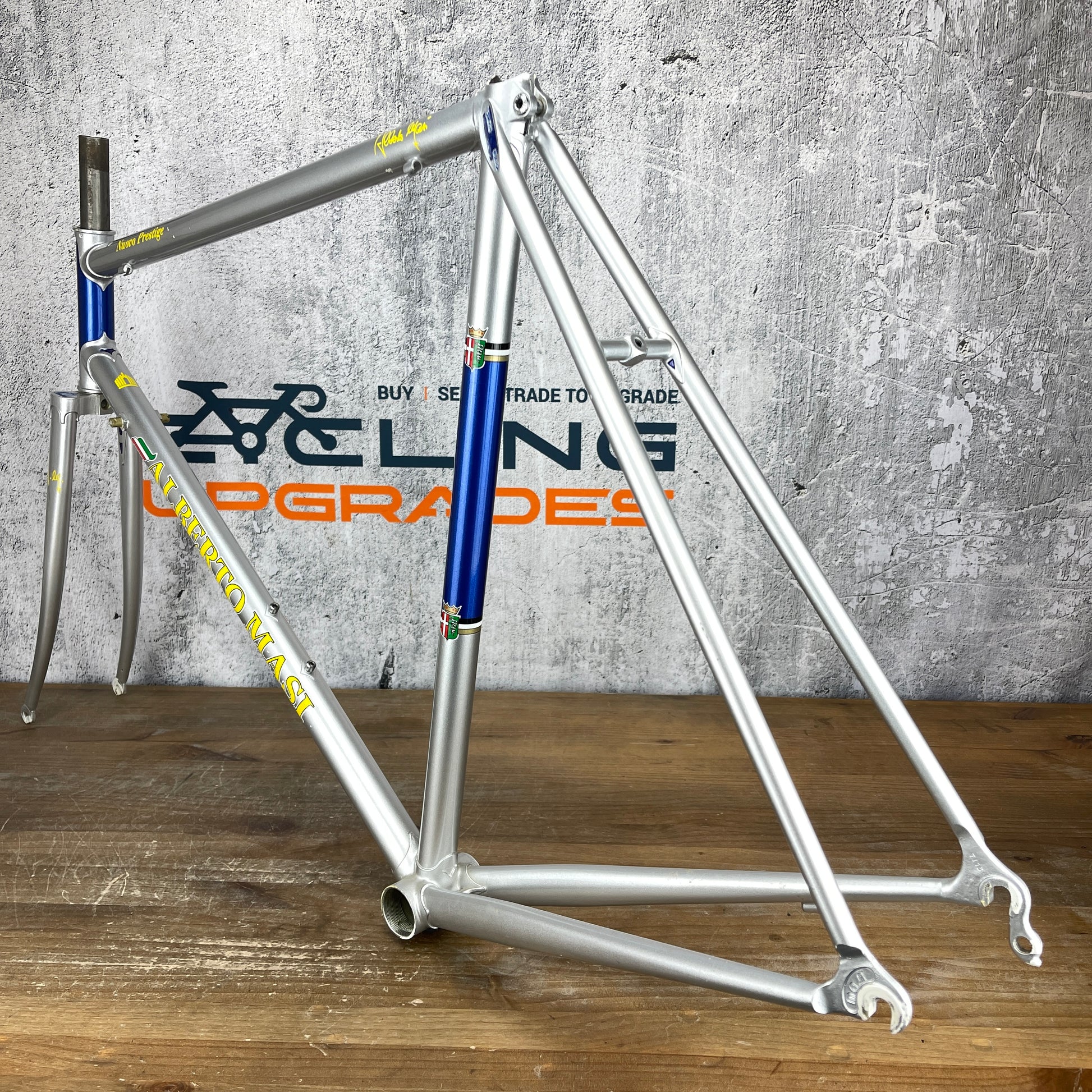

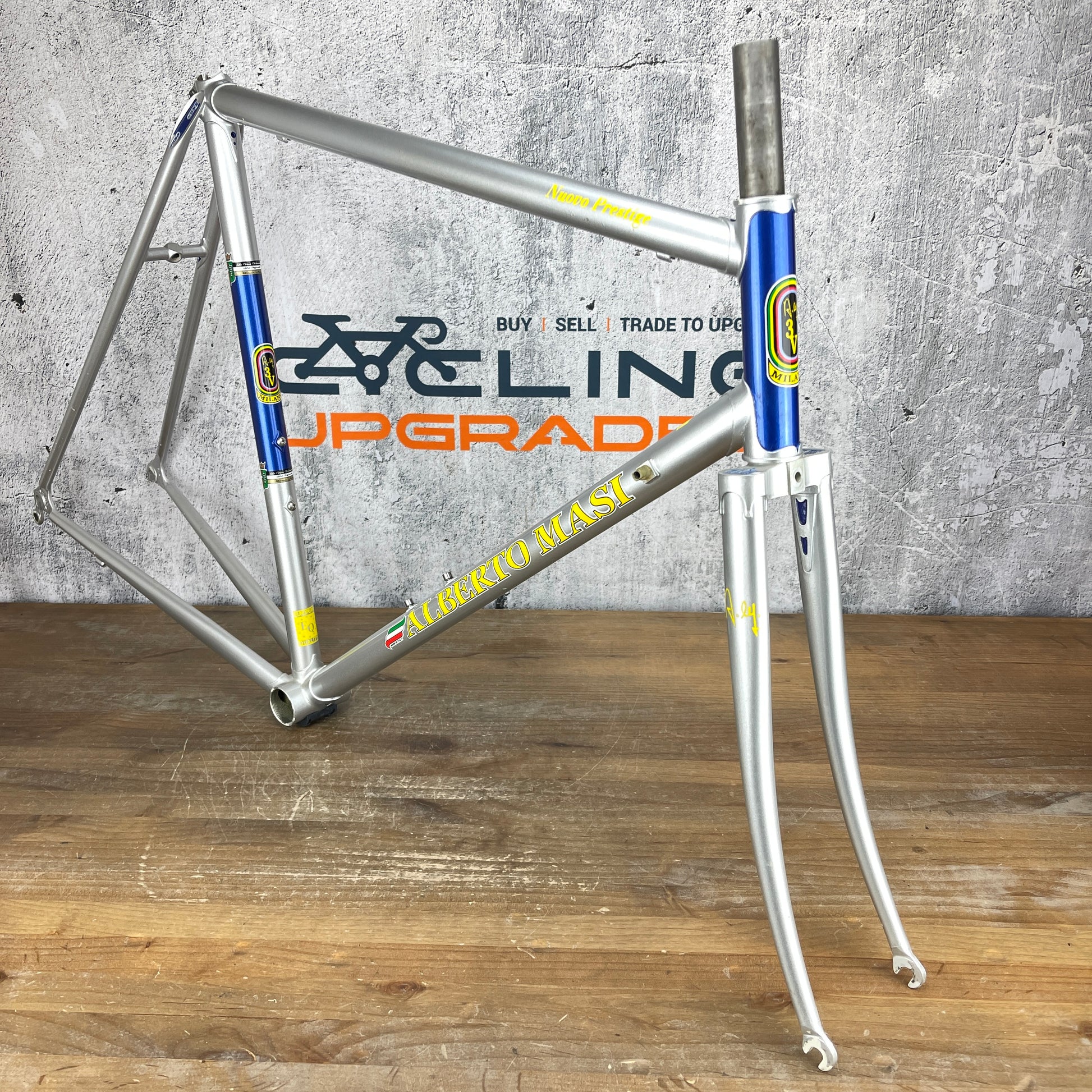

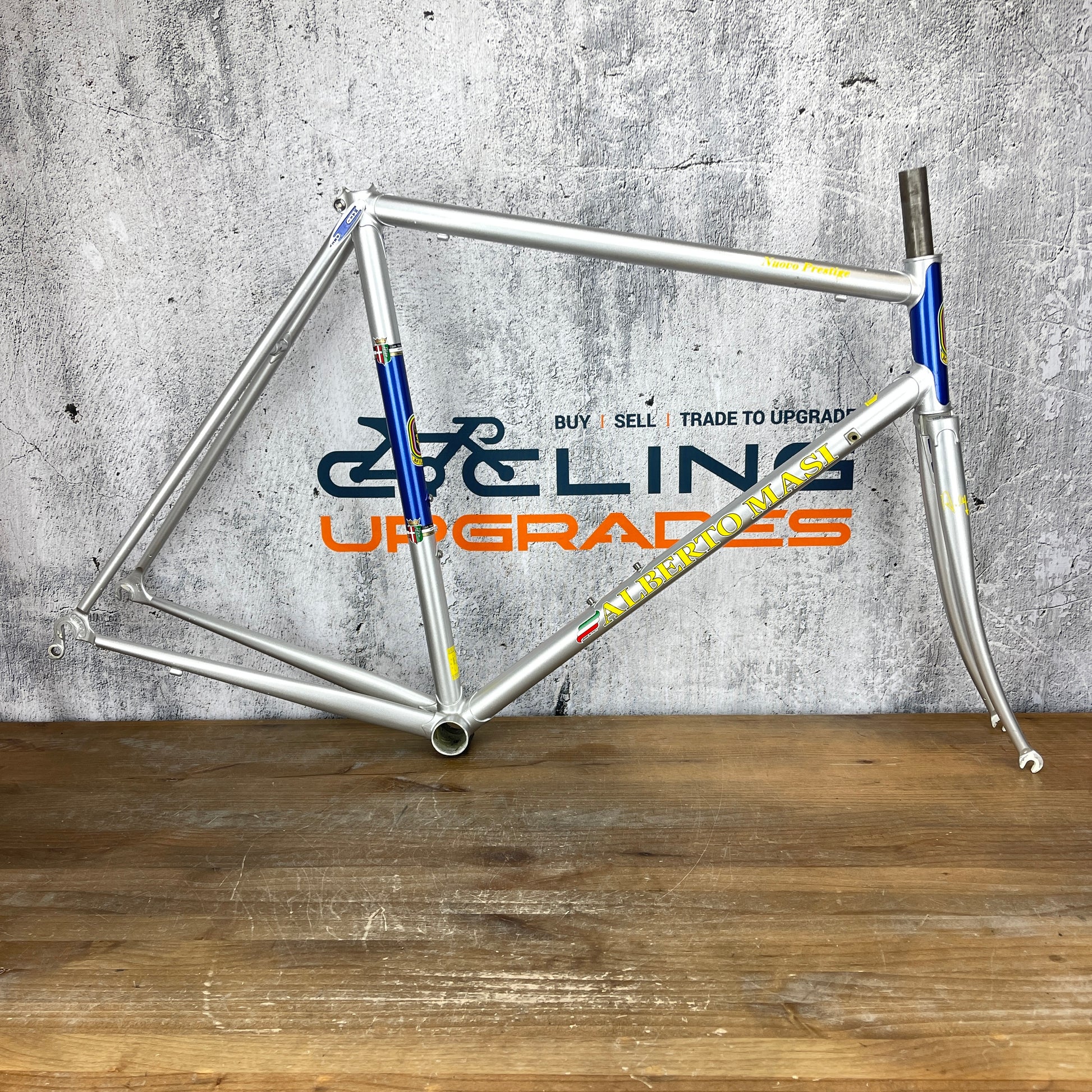

Frame: Alberto Masi, built with Richard Sachs lugs, this frame is dated approximately from the early 2000s.
Color: Silver, and blue
Serial: ME55 92004
Brake type: Center-Mount rim brake
Tire Clearance: 28mm

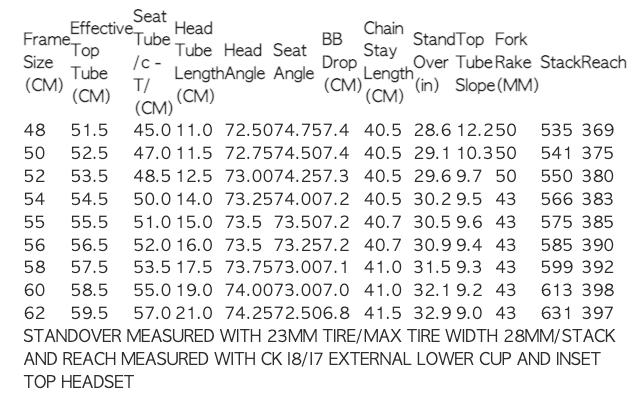

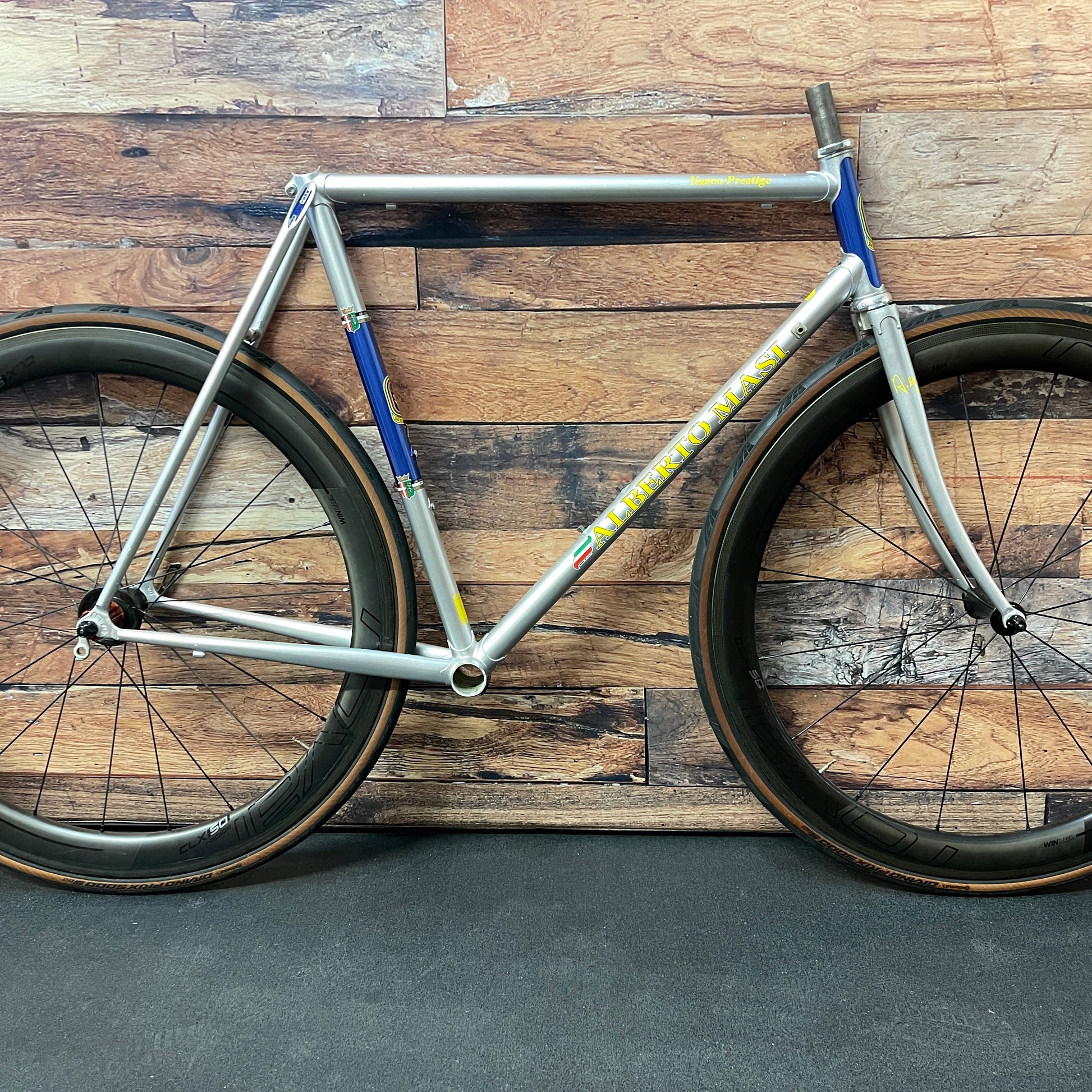

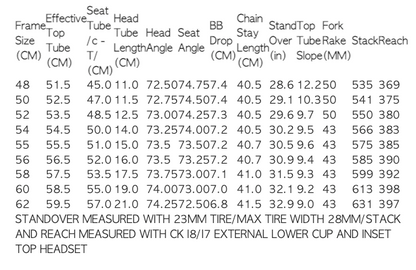

Size: Actual measurements taken by hand are approximate and are as follows: 550mm stack, 400mm reach, 810mm standover height. 560mm actual top tube center to center. 550mm center of bottom bracket to center of top tube. 570mm center of bottom bracket to top of seat tube. Head tube 150mm. 405mm chainstay length. If other measurements or take-offs are needed, please feel free to ask. We have included in our last picture a photo of the frame with a wheelset on it to show the head and seat tube angles and top tube slope.

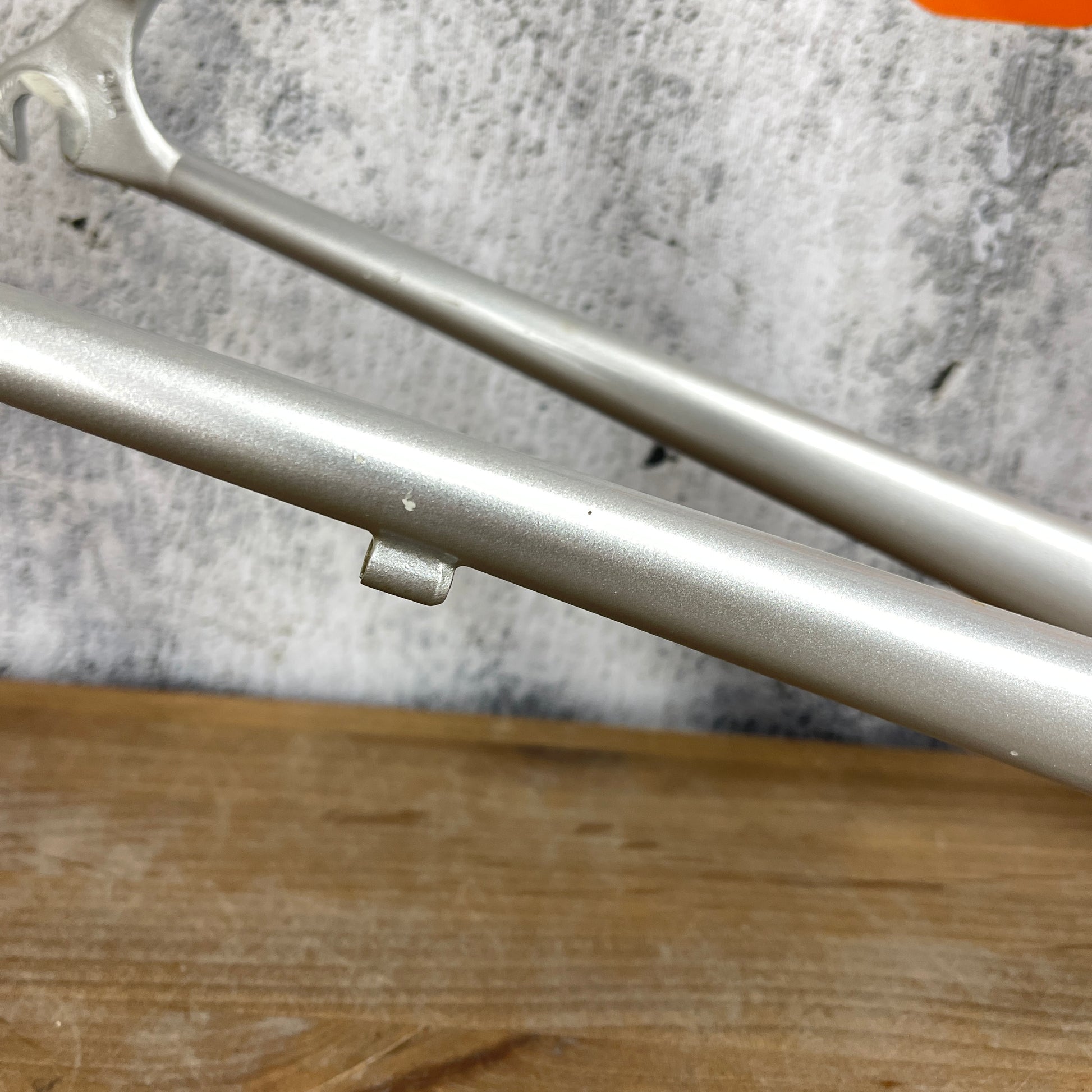

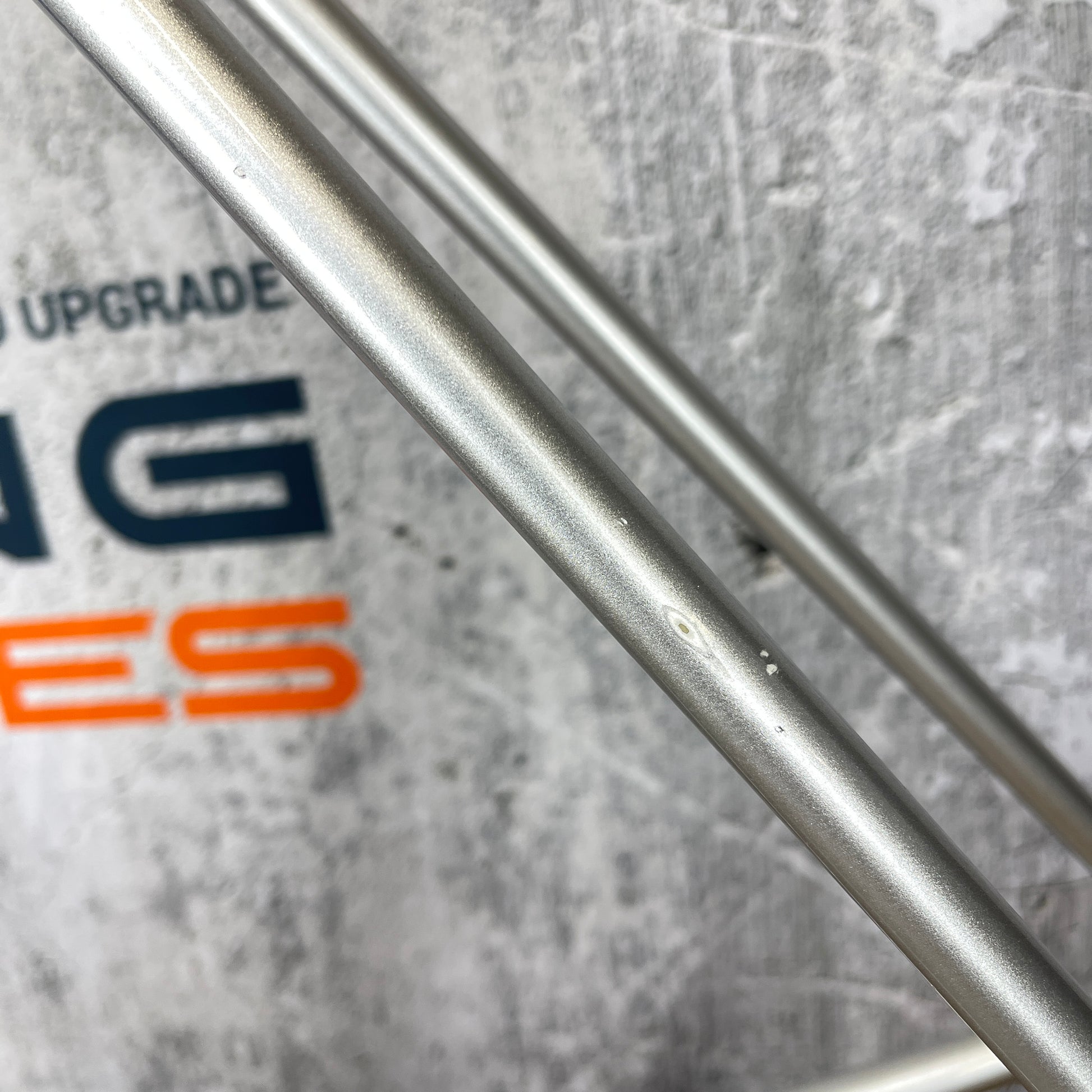

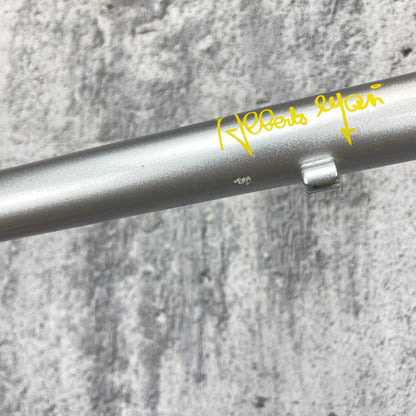

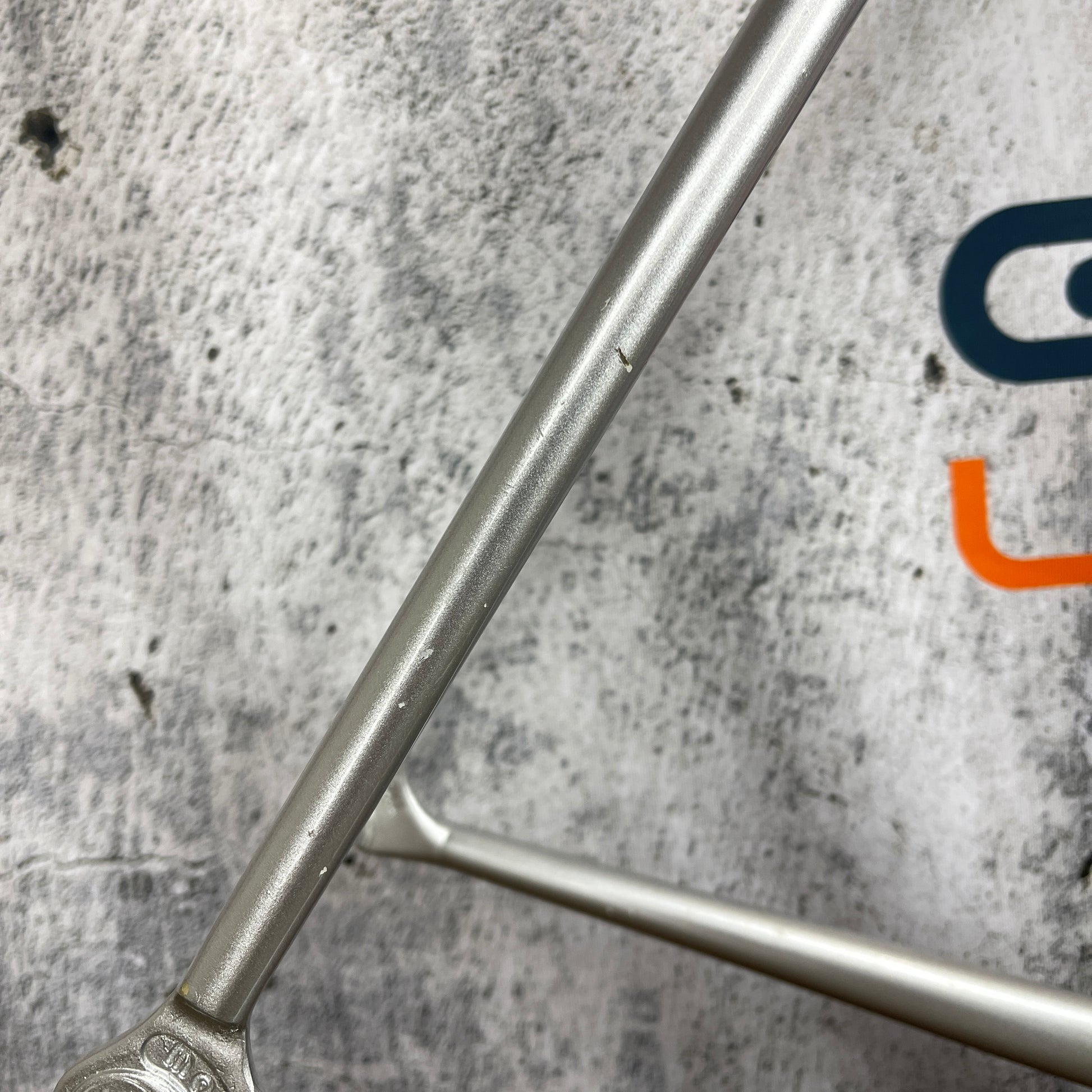

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: some scratches on the chainstay shown in pic #6, some scratches on the seatstays shown in pics #7 & 8, and some scratches on the top tube shown in pics #9 & 10. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups. Mechanical cable guide below the bottom bracket intact.

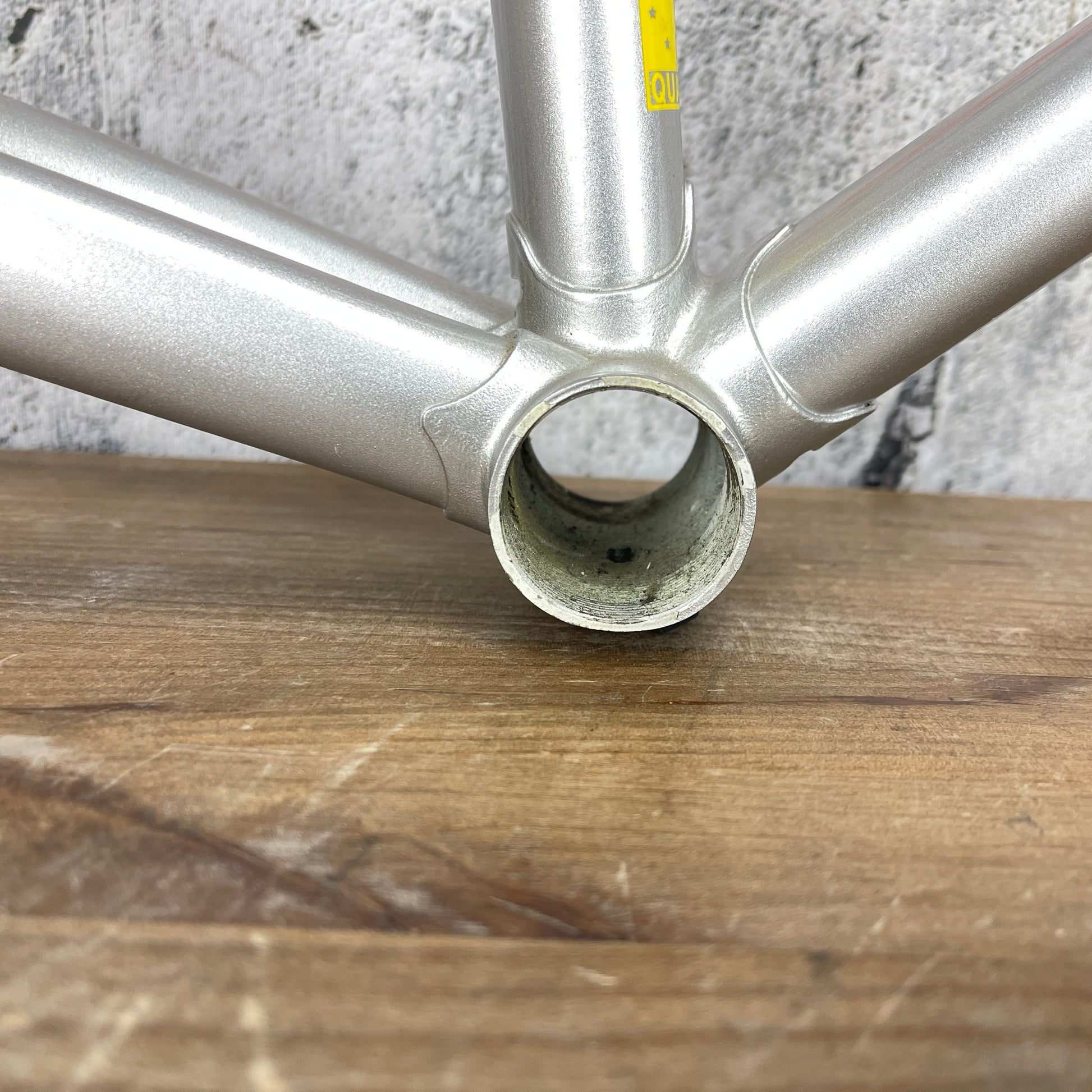

Bottom bracket: Italian threaded bottom bracket shell type. No bottom bracket is currently installed. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 60mm of steerer above the top tube. No spacers or headset included
Seatpost: 27.2mm diameter. No seatpost included.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 2723 grams as pictured with frame hardware, etc.
What's included: Frame, and fork
