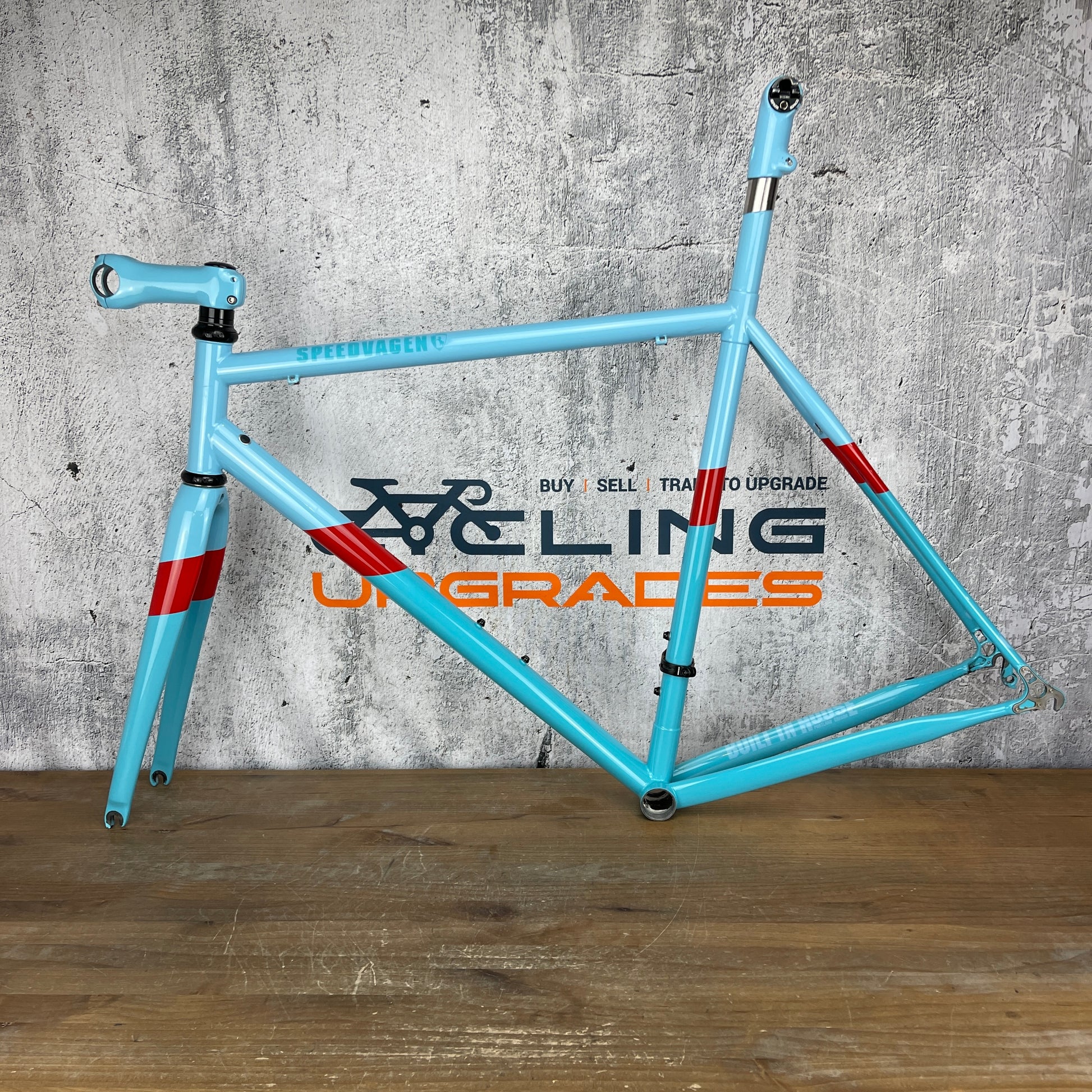

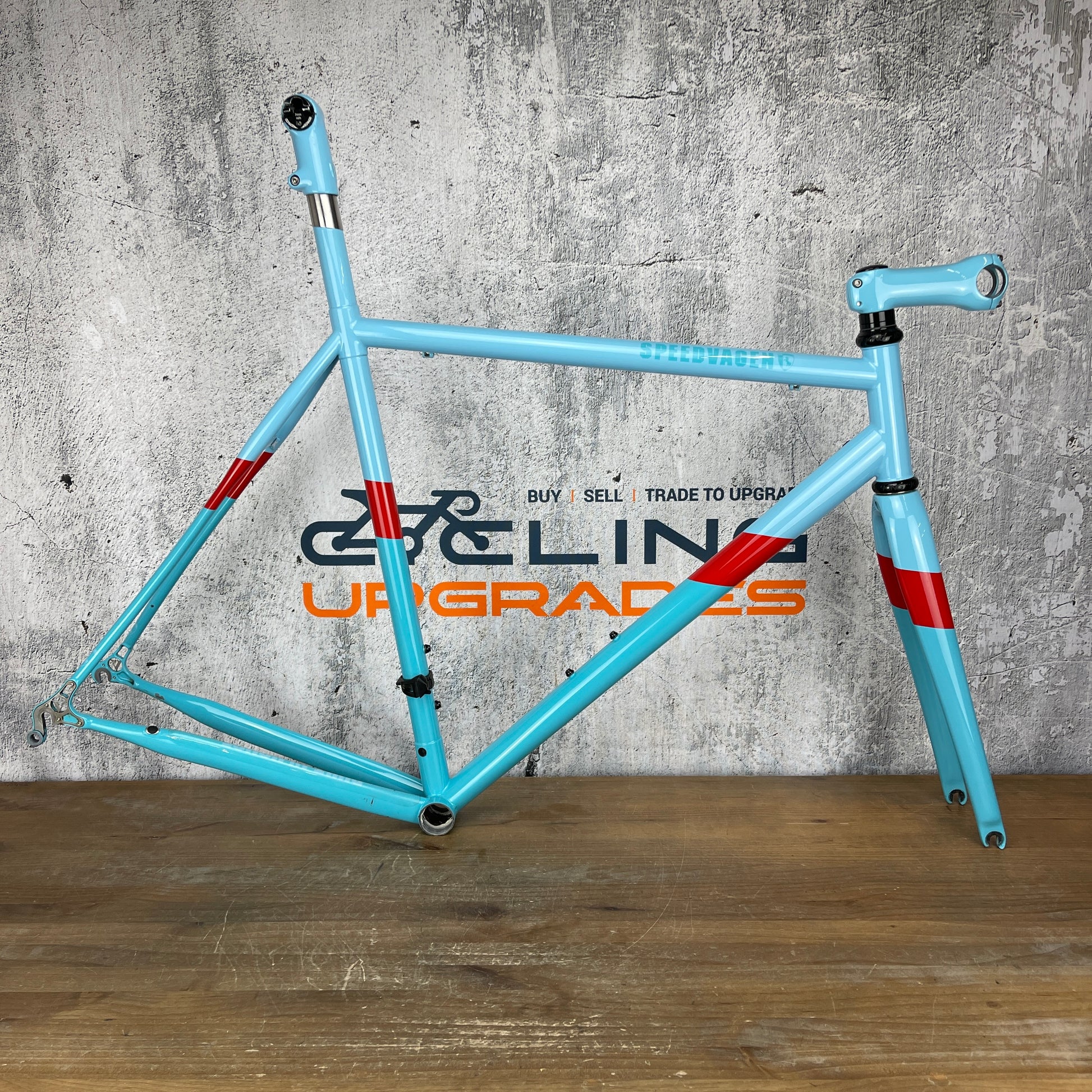

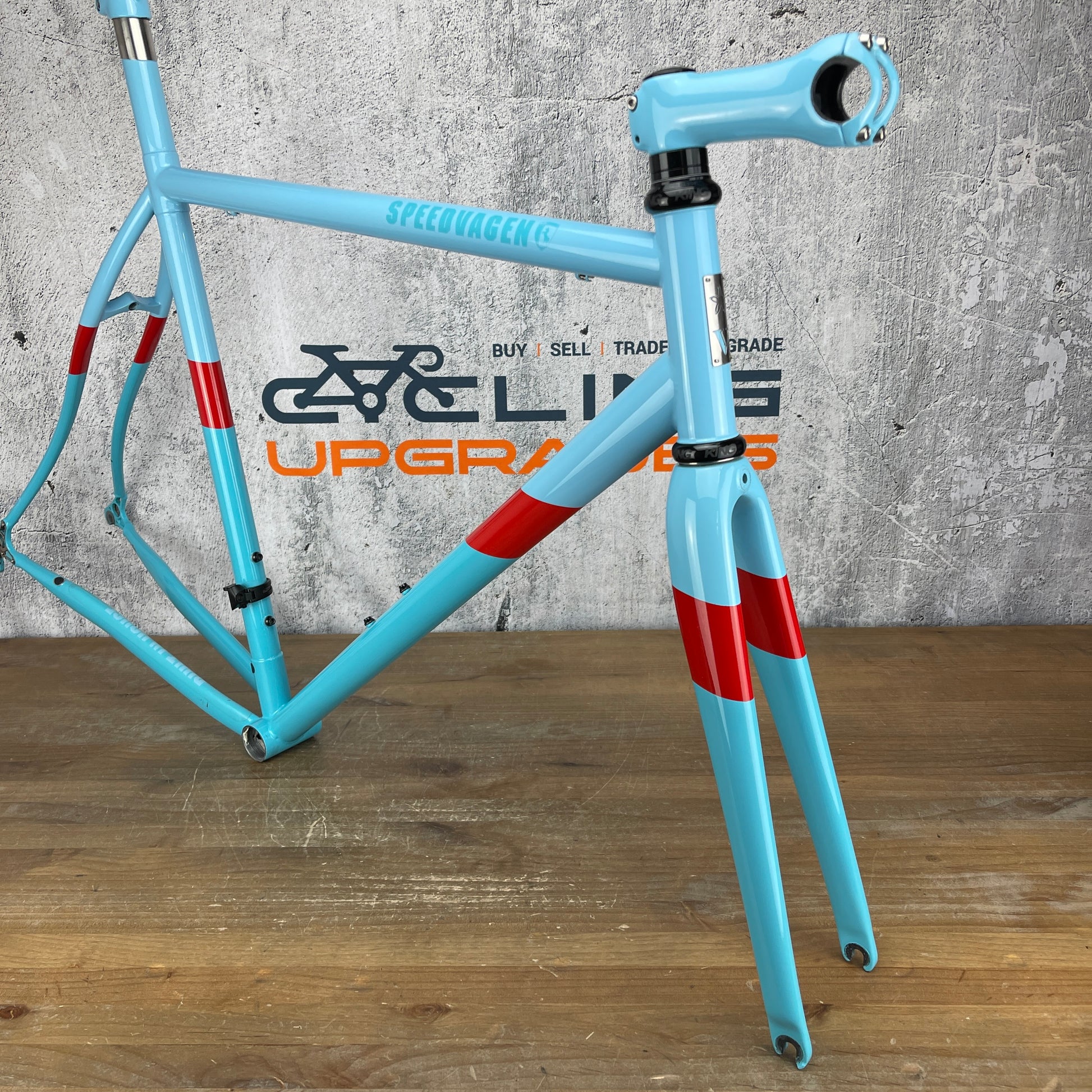

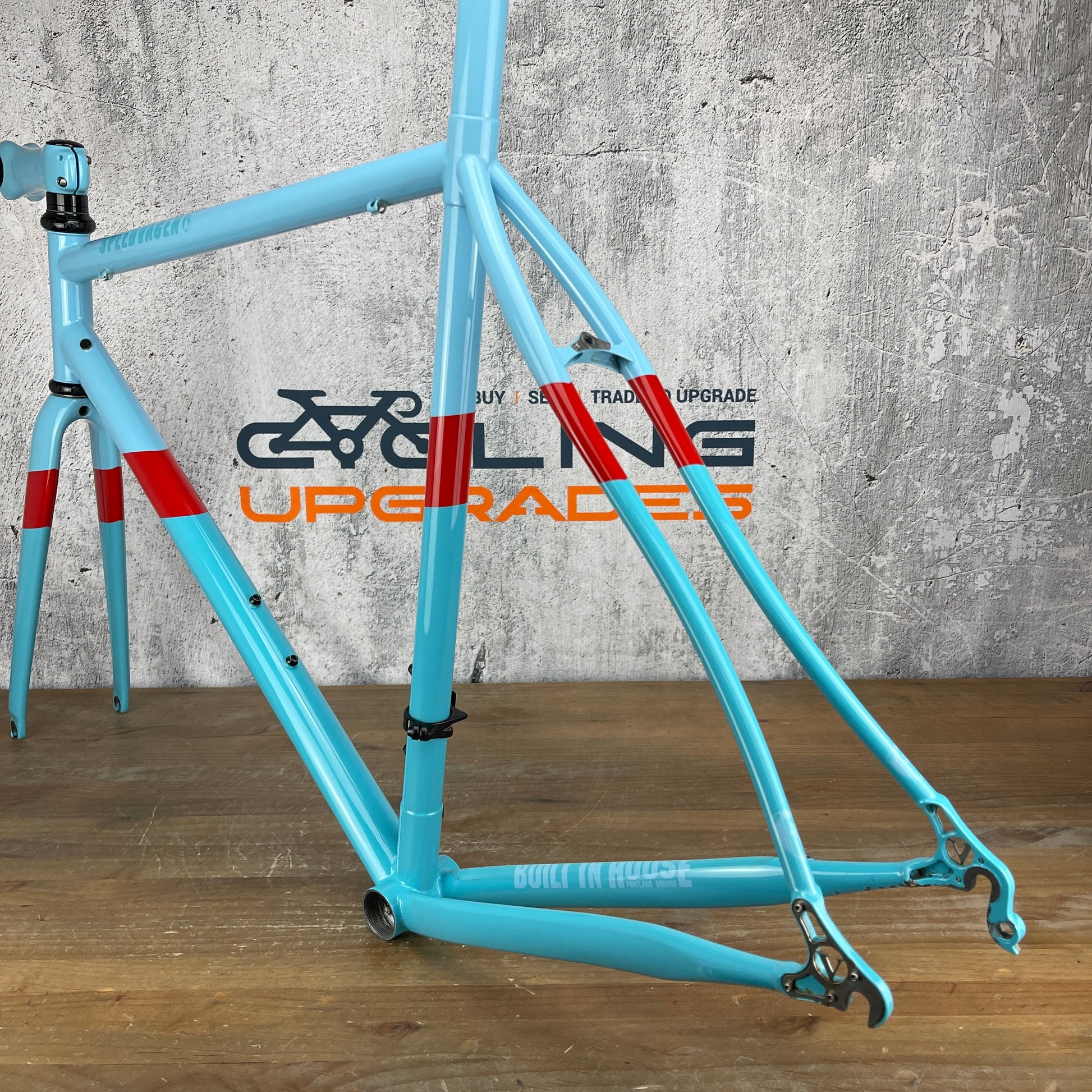

Frame: 2019 Speedvagen Road. Upgrades on this frame include: Custom geometry (see details below), Enve Carbon seat tube upgrade $850, paint matched Enve stem $250, Di2/EPS internal wiring $300, Di2 integrated seatmast, paint matched Enve seat post topper $250.
Color: Two-tone blue, and red
Brake type: Center-Mount rim brake.

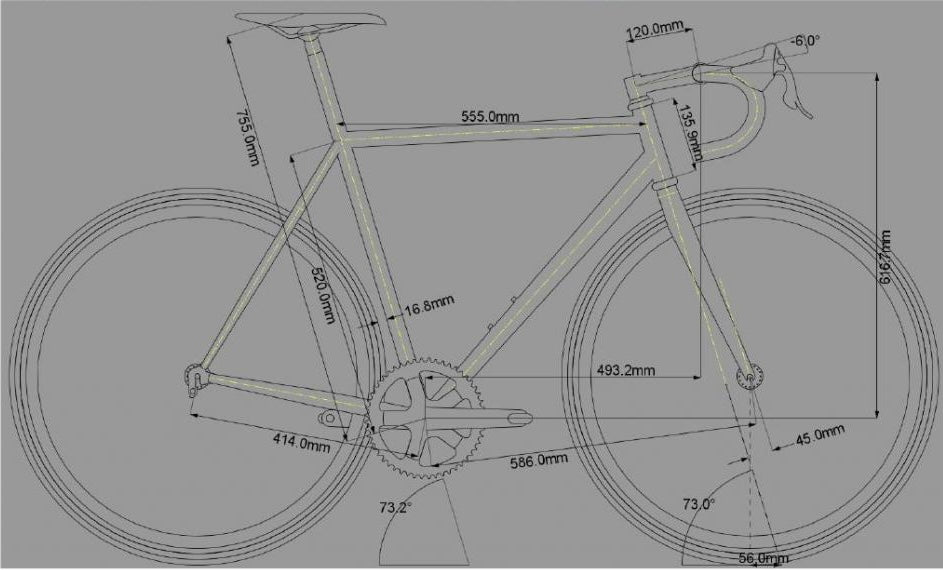

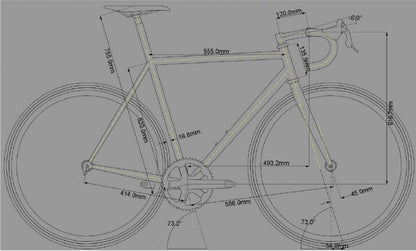

Size: Custom 56cm. 555mm Effective Top Tube (5mm shorter than stock). Stack - 559mm. Reach - 387mm. Head tube 137mm (5mm shorter than stock). Full geometry chart is attached as the last listing photo.

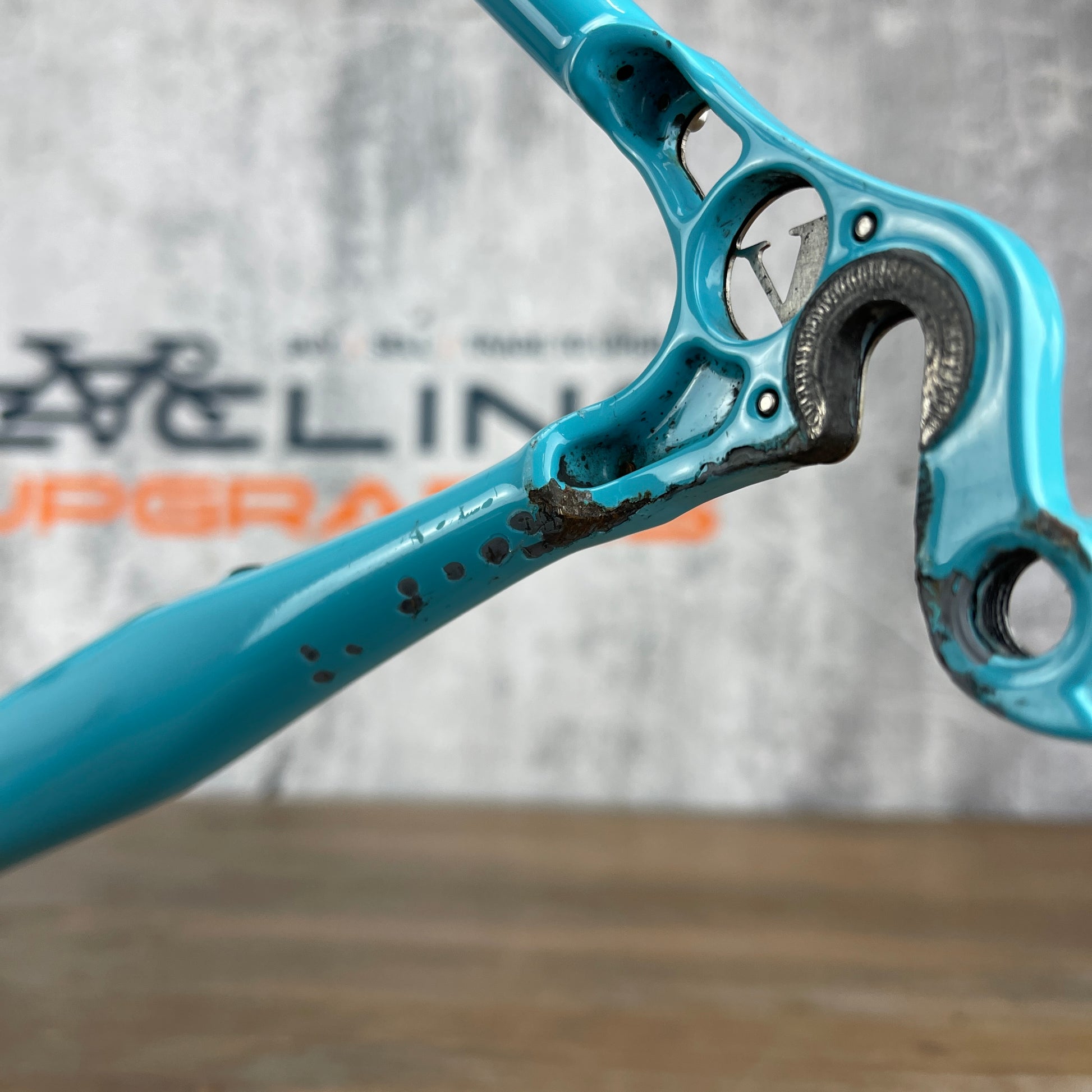

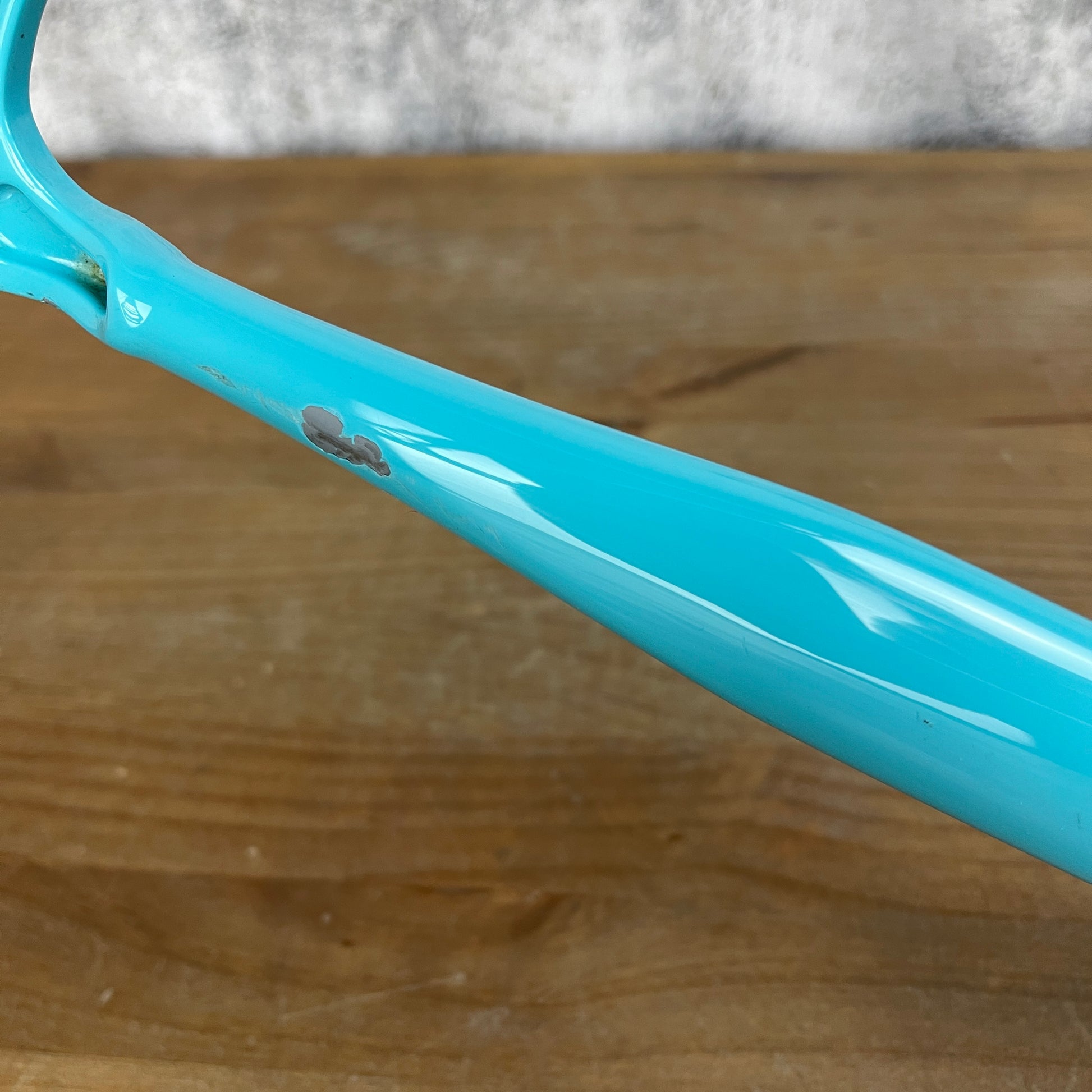

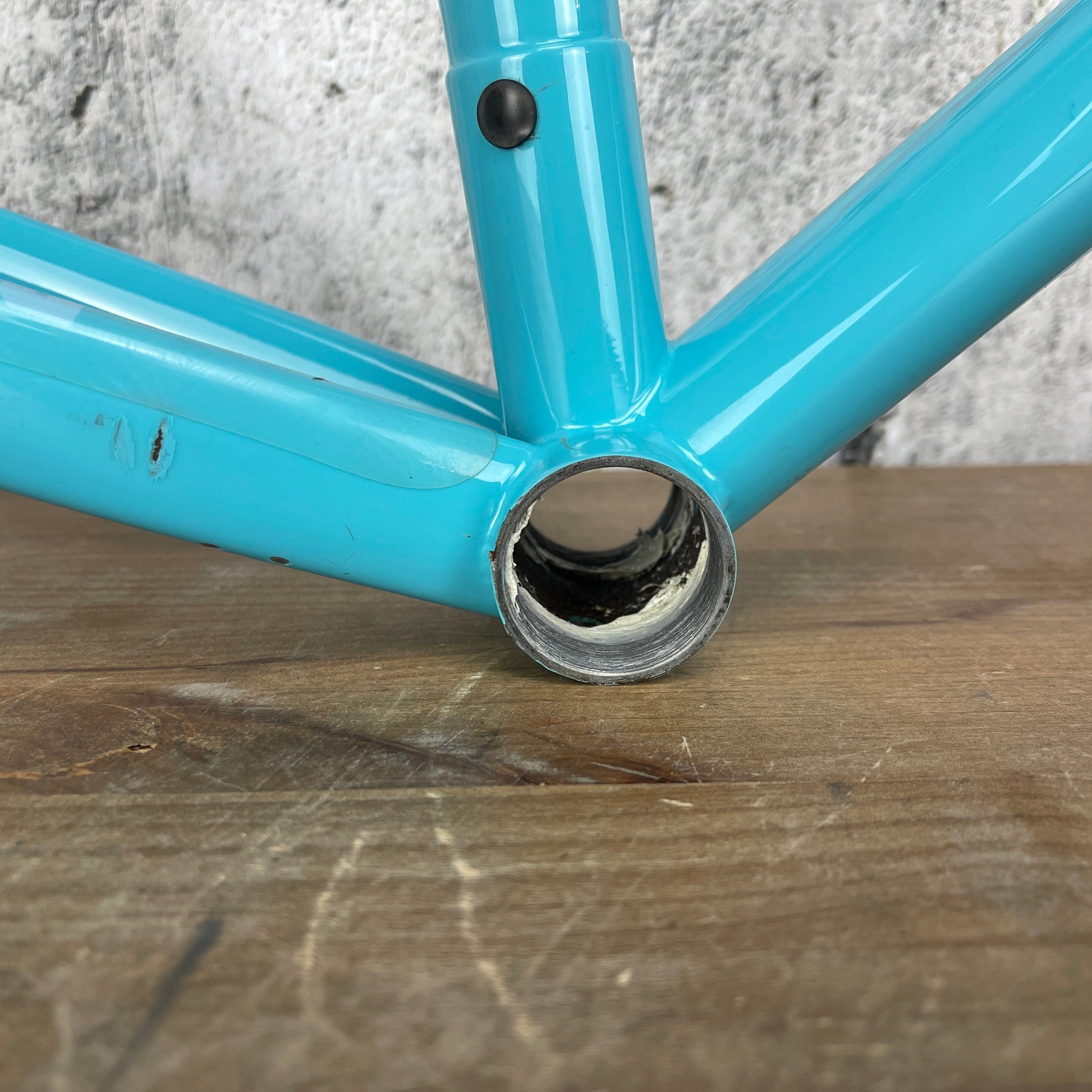

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some scratches on the inside of the chainstays near the rear dropouts shown in pics #7&8, and a scratch near the bottom bracket shown in pic #10. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for Di2, EPS, or eTap groupsets. This frame was previously setup with an eTap groupset. Other frame/cable stops may be needed for Di2 or EPS setups. This frame is not compatible with mechanical groupsets.
Bottom bracket: English threaded bottom bracket shell type. No bottom bracket currently installed. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

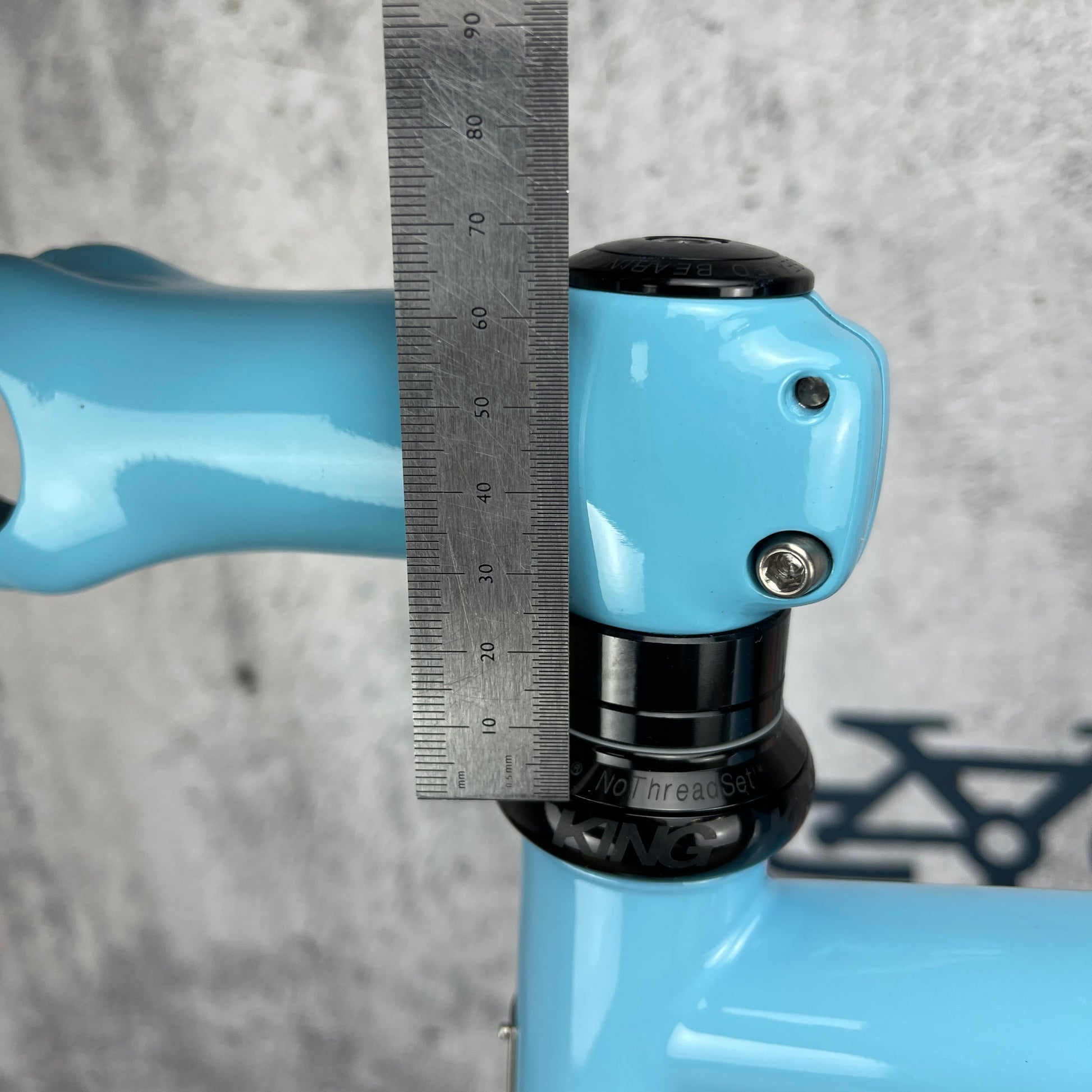

Steerer length: 60mm of steerer above the top tube. 15mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: Enve carbon seatmast cap included. Seatmast height is at 685mm from center of bottom bracket. The minimum height to saddle rails is 712mm, and the maximum height to the saddle rails is 735mm. Add your saddle stack height to determine max saddle height from center of bottom bracket. Clamp ears for 7x7mm saddle rails included.

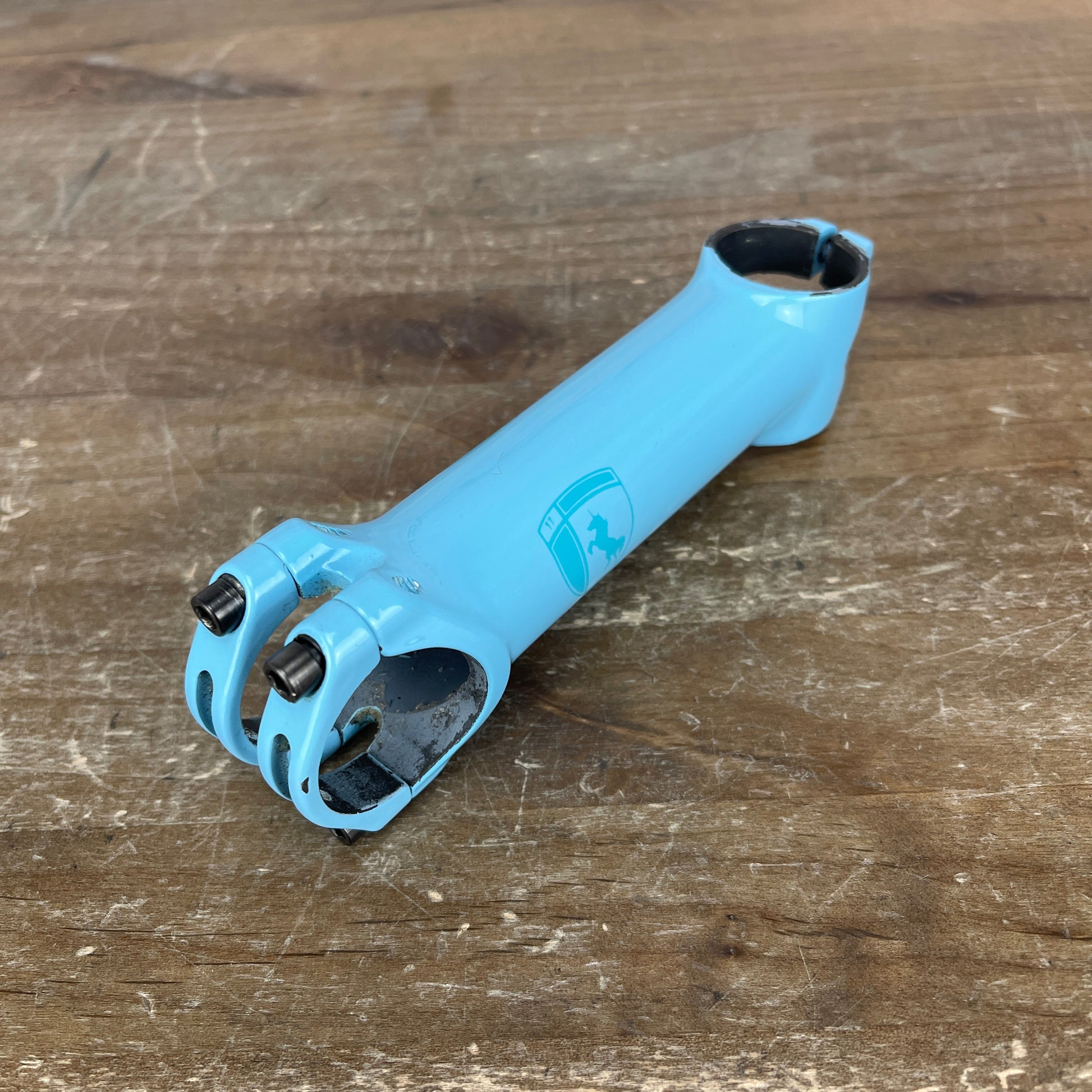

Stem: Two stems are included. One is an Enve 110mm +/- 6 degree stem, and the other is a Deda 120mm +/-8 degree stem.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 2378 grams as pictured with headset, seatmast cap, stem, frame hardware, etc.
What's included: Frame, fork, Chris King headset, seatmast cap, and two stems.
