Frame: 2019 Argonaut
Color: Black
Brake type: Center-Mount rim brake.

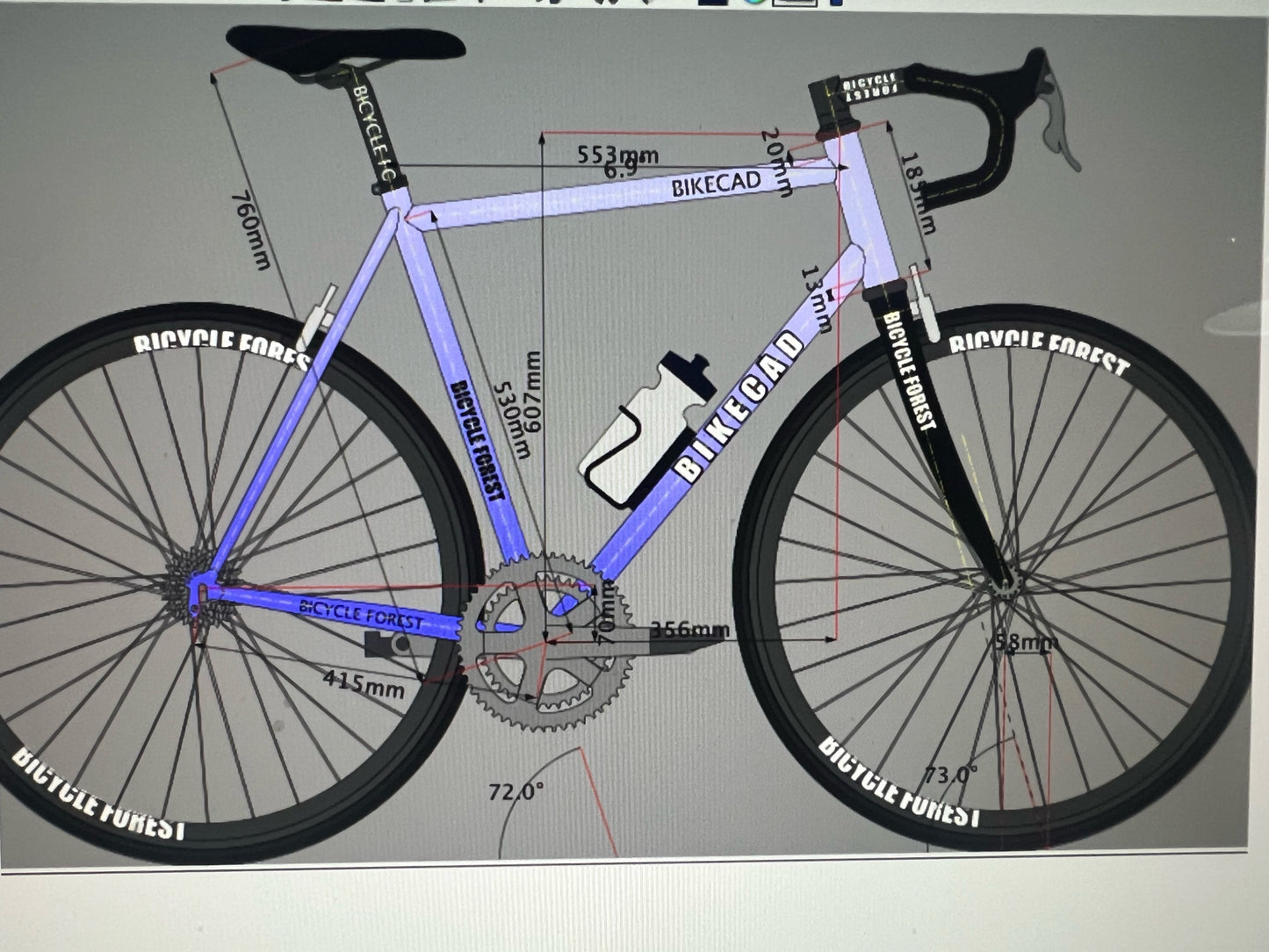

Size: 55cm. 553mm Effective Top Tube. Stack - 607mm. Reach - 356mm. Head tube 185mm. The full geometry chart is shown in the last picture.
Condition: There are no imperfections to specifically picture, only very minor imperfections and light signs of use may exist.
Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups. Mechanical cable guide below the bottom bracket intact.
Bottom bracket: Pressfit 30 bottom bracket shell type (46mm shell diameter, 68mm shell width). No bottom bracket currently installed. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Wheels Manufacturing, and a Ceramicspeed Authorized Dealer, if you prefer to have the frame setup with a certain Wheels Manufacturing, or Ceramicspeed bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.
Steerer length: 50mm of steerer above the top tube. 5mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.
Seatpost: Frame specific seatmast cap included. Seatmast height is 695mm from center of bottom bracket. The minimum height to saddle rails is 720mm, and the maximum height to the saddle rails is 735mm. Add your saddle stack height to determine max saddle height from center of bottom bracket.
Dropout Spacing: QR x 100mm front, QR x 130mm rear.
Weight: 1509 grams as pictured with headset, frame hardware, etc.
What's included: Frame, fork, Chris King headset, rear derailleur hanger, seatmast cap
